Draper Targa – 106", HDTV – 116301

Product Overview

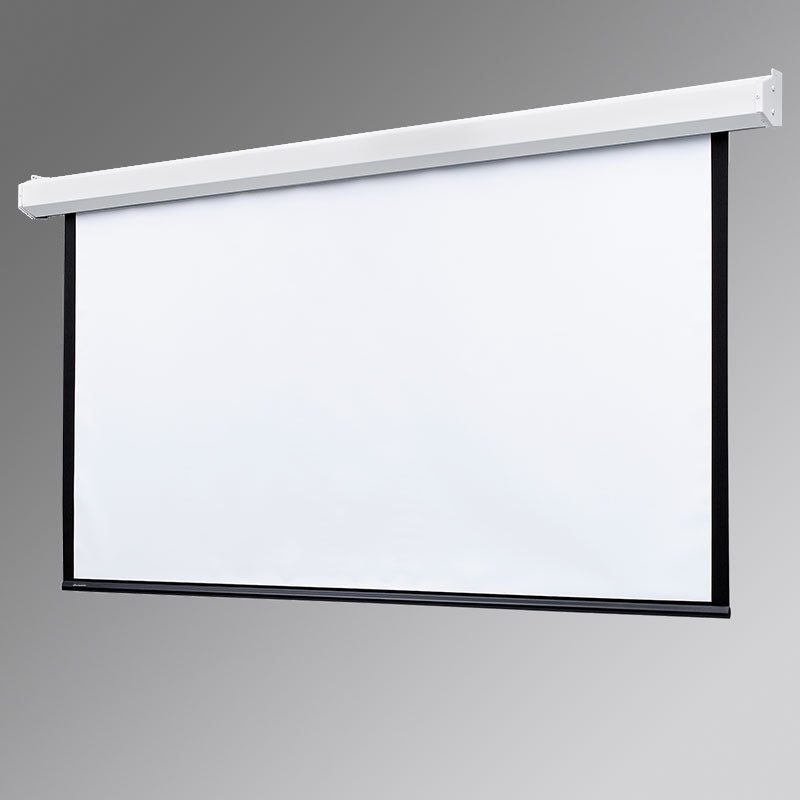

The Draper Targa is an affordable, motorized electric projection screen for commercial AV installations that mount on a wall or ceiling. This 106" diagonal HDTV (16:9) model is a free-hanging Series E screen: the viewing surface stays flat under the weight of a bottom dowel rather than tab-tensioning, and the motor is housed inside the roller for a clean, low-profile look. Its pentagonal, scratch-resistant steel case suits conference rooms, boardrooms, and houses of worship that need a dependable drop-down screen. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Targa 106" motorized projection screen (Part # 116301) is a popular, budget-friendly choice for integrators fitting out conference halls, lecture rooms, boardrooms, hospitality spaces, and churches. It is a free-hanging screen, so the image is held flat by a weighted bottom dowel; this is a non-tensioned Series E design rather than a tab-tensioned screen. The motor mounts inside the roller tube, keeping the case compact, and the pentagonal steel case carries a scratch-resistant white finish with a black finish available on request. Matching endcaps double as universal mounting brackets for wall or ceiling installation, and optional floating wall brackets add discreet mounting flexibility; an optional ceiling trim kit enables a recessed look. The image area is black-framed in NTSC, HDTV, and 16:10 formats, and a standard black drop is included depending on screen size. The Targa ships with a 110-120V 3-position switch as standard, with other control options available, and larger images beyond its 12' maximum width are handled by the Targa XL. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the wider projection screens range. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Free-hanging Series E design — A weighted bottom dowel keeps the viewing surface flat without tab-tensioning, for simple, reliable operation.
• In-roller motor — The motor is housed inside the roller tube, keeping the case compact and the installation low-profile.
• Pentagonal steel case — The scratch-resistant steel case comes in a white finish as standard, with black available on request.
• Wall or ceiling mounting — Matching endcaps double as universal mounting brackets, with optional floating wall brackets for discreet installs.
• Optional ceiling-recessed trim kit — An optional trim kit allows a recessed appearance where the design calls for it.
• Black-framed image — NTSC, HDTV, and 16:10 formats include a black-framed image area with a standard black drop by size.
• 110-120V control included — Ships with a 3-position switch as standard, with additional control options available.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference rooms and commercial meeting spaces needing an affordable drop-down screen
• Boardrooms with wall- or ceiling-mounted front projection
• Houses of worship using motorized front projection
• Training rooms and multi-purpose rooms in hospitality and commercial venues
• Restaurants, hotels, and lobbies presenting front-projected content

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Viewing surface and gain for this configuration are not shown here; confirm the exact surface and dimensions with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Targa tab-tensioned?

No. The Targa is a free-hanging Series E screen. The viewing surface is kept flat by a weighted bottom dowel rather than side tensioning tabs. If you need a tab-tensioned surface, consider a Series V model such as the Access V.

Can the Targa be mounted on a wall or a ceiling?

Both. The matching endcaps double as universal mounting brackets for wall or ceiling installation, optional floating wall brackets add flexibility, and an optional ceiling trim kit enables a recessed appearance.

How large can the Targa go?

The Targa supports image widths up to 12' (366 cm), surface dependent. For larger images, Draper offers the Targa XL. This unit is a 106" diagonal HDTV (16:9) screen.

Where is the motor located and is it easy to install?

The motor is housed inside the roller tube for a clean, low-profile case. The endcap mounting brackets make it straightforward to hang, and it ships with a 110-120V 3-position switch, with other control options available.

What projectors and mounts are compatible with the Targa?

It works with any commercial front projector matched to its 106" HDTV format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Which viewing surface does this configuration use?

The Targa is offered with Series E surfaces such as Matt White XT1000E, Contrast Grey XH800E, and acoustically transparent ClearSound White Weave XT900E. Contact Creation Networks and we will confirm the exact surface for this part number before you order.

What warranty and support are included?

The Targa carries Draper's standard 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
