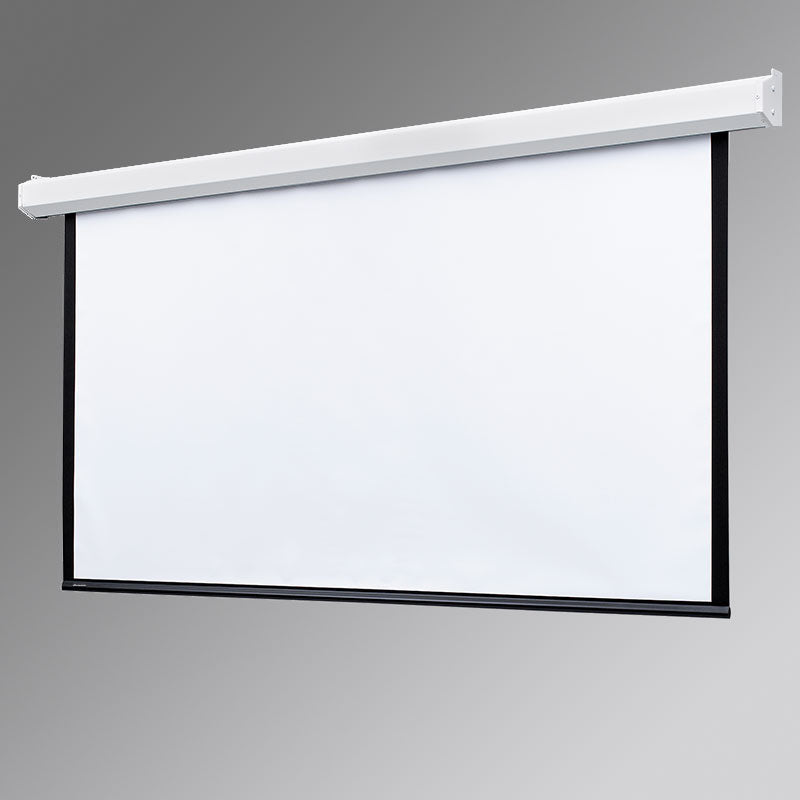

Draper Targa – 100", HDTV – 116454U

Product Overview

The Draper Targa is an electric, free-hanging projection screen built for permanent commercial AV installations in conference rooms, lecture halls, boardrooms, and houses of worship. This 100" diagonal HDTV (16:9) model houses its motor inside the roller and drops from a low-profile pentagonal steel case, making it a clean fit for both wall and ceiling mounting. As a 100-inch motorized projection screen, it stays flat during use with a weighted bottom dowel and supports front-projection image widths up to 12'. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Targa electric projection screen is engineered for integrators specifying an affordable, low-profile motorized screen for everyday commercial deployment. The viewing surface is free-hanging and non-tensioned, held flat by a weighted bottom dowel, so the screen delivers a smooth image without the cost of a tab-tensioned system. Its sleek pentagonal steel case carries a scratch-resistant white finish, with a black finish available on request, and matching endcaps double as universal mounting brackets for fast wall or ceiling installation. Because the tubular motor is housed inside the roller, the case stays compact at 5-7/8" high by 5-1/4" deep, giving the installation a finished, unobtrusive appearance. This unit ships with a Low Voltage Control (LVC-IV) motor for integration with low-voltage control systems and a standard 110-120V three-position switch, with additional control options available for AV automation. An optional ceiling trim kit allows recessed installation where a flush ceiling look is required. The Targa is well suited to training rooms, multi-purpose rooms, and commercial meeting spaces that need a dependable motorized screen on a controlled budget. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Electric free-hanging operation — The motor-in-roller design lowers and raises the surface at the touch of a switch for daily use in commercial rooms.
• Weighted bottom dowel — Keeps the non-tensioned viewing surface flat and stable for a clean front-projected image.
• Pentagonal steel case — A durable, scratch-resistant white steel case (black available on request) protects the roller and finishes the installation.
• Universal-mount endcaps — Matching endcaps double as universal mounting brackets for wall or ceiling installation, with optional floating wall brackets for discreet mounting.
• Low-profile case — At 5-7/8" high by 5-1/4" deep, the compact case keeps the screen unobtrusive above the projection area.
• LVC-IV low-voltage motor — This unit uses Draper's Low Voltage Control motor for straightforward integration with low-voltage control systems.
• Image width up to 12' — Supports front-projection installations with image widths up to 12' (366 cm) depending on surface selection.
• Ceiling-recessed option — An optional ceiling trim kit enables flush recessed installation where a concealed look is preferred.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference rooms and boardrooms requiring a retractable front-projection screen
• Training rooms and multi-purpose rooms with occasional projection use
• Houses of worship using front projection from a fixed ceiling or wall position
• Lecture halls and commercial meeting spaces on a controlled equipment budget
• Hospitality and restaurant spaces needing a clean, low-profile motorized screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Targa a tensioned screen?

No. The Targa is a free-hanging, non-tensioned electric screen. The viewing surface is held flat by a weighted bottom dowel rather than a tab-tensioning system, which keeps the price down while still delivering a smooth front-projected image. For tab-tensioned performance in large-format rooms, consider Draper's Series V screens.

Can the Targa be mounted on both walls and ceilings?

Yes. The matching endcaps double as universal mounting brackets for either wall or ceiling installation. Optional floating wall brackets are available for a more discreet mount, and an optional ceiling trim kit allows flush, recessed installation.

What projectors and mounts are compatible with the Targa?

The Targa works with any commercial front projector matched to its 100" HDTV format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What does the "U" in SKU 116454U mean for control integration?

This unit ships with Draper's Low Voltage Control (LVC-IV) motor, which is designed for integration with low-voltage control systems. It also includes a standard 110-120V three-position wall switch, and additional control options are available for AV automation.

What is the maximum image size available on the Targa?

The Targa supports image widths up to 12' (366 cm) depending on the surface selected. For larger image widths, Draper offers the Targa XL. Contact Creation Networks for help confirming the right size and surface for your room.

What warranty and support are included?

The Targa carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
