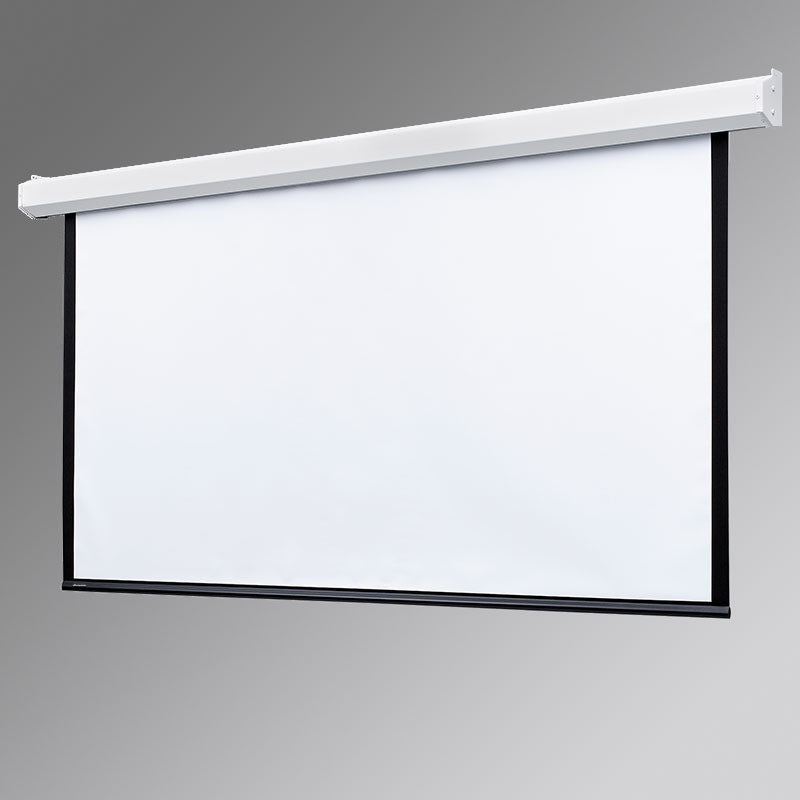

Draper Targa – 100", HDTV – 116454

Product Overview

The Draper Targa is an electric, free-hanging 100" HDTV projection screen built for permanent commercial AV installations in conference rooms, boardrooms, and lecture spaces. This 16:9 model houses its motor inside the roller for a low-profile appearance and ships in a pentagonal 22-gauge steel case with matching endcaps that double as universal wall or ceiling mounting brackets. As a ceiling or wall mount electric projection screen, the free-hanging surface is held flat by a weighted bottom dowel, giving integrators a clean, reliable image surface for everyday presentation environments. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Targa electric projection screen is engineered for integrators specifying an affordable, permanently installed motorized screen without the complexity of tab-tensioning. It is a Series E free-hanging screen: the viewing surface hangs from an in-roller motor and stays flat under its own weight and a weighted bottom dowel, rather than using side tensioning. The motor is mounted inside the roller on rubber isolation insulators, keeping the case slim at 5-7/8" high by 5-1/4" deep and reducing acoustic and visual intrusion in finished rooms. The pentagonal case is 22-gauge steel with a scratch-resistant white finish, and matching endcaps serve as universal mounting brackets for either wall or ceiling installation. A standard 110-120V three-position control switch is included, and low-voltage and 220V control options are available for AV system integration. Maximum image width is up to 12' (366 cm) depending on surface, making the Targa well suited to conference room projection, training rooms, and worship spaces. An optional ceiling trim kit allows recessed installation where a flush ceiling appearance is required. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, formats, and surfaces. Contact Creation Networks at creationnetworks.net for surface selection, throw-distance planning, and lead times.

Key Features

• Electric free-hanging (non-tensioned) design — The Series E surface hangs from an in-roller motor and stays flat with a weighted bottom dowel, keeping the mechanism simple and serviceable.
• Motor-in-roller operation — The motor mounts inside the roller on rubber isolation insulators for smooth, low-profile actuation and a slim case.
• Pentagonal 22-gauge steel case — A scratch-resistant white finish (black available on request) protects the surface and suits finished commercial interiors.
• Universal endcap mounting — Matching endcaps double as brackets for either wall or ceiling installation, giving integrators placement flexibility.
• 100" HDTV (16:9) format — A widescreen image area sized for modern presentation and video content in mid-size rooms.
• Standard 3-position control — Ships with a 110-120V three-position switch; low-voltage and 220V control options support AV system integration.
• Recessed-ready — An optional ceiling trim kit allows flush ceiling-recessed installation where aesthetics matter.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate conference rooms and boardrooms with permanent front projection
• Training rooms and lecture spaces requiring a fixed motorized screen
• Houses of worship using front-projected image support
• Multi-purpose rooms and commercial meeting spaces
• Hospitality and commercial venues needing a clean, low-profile screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Viewing surface, gain, and viewing-cone values depend on the surface specified; confirm exact viewable dimensions, surface, and options with Creation Networks before ordering.

Frequently Asked Questions

Is the Targa a tensioned screen?

No. The Targa is a Series E free-hanging (non-tensioned) electric screen. The viewing surface hangs from the in-roller motor and stays flat under its own weight with a weighted bottom dowel, rather than using tab-tensioning. If your application requires a tab-tensioned surface, contact us about Draper's Series V models.

Can the Targa be mounted on both walls and ceilings?

Yes. The matching endcaps double as universal mounting brackets, so the same screen can be surface-mounted to a wall or to the ceiling. An optional ceiling trim kit is available for flush ceiling-recessed installation.

What projectors and mounts are compatible?

The Targa works with any commercial front projector matched to its 100" 16:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How does the screen integrate with an AV control system?

A 110-120V three-position control switch is included as standard. Low-voltage control modules and 220V options are available so the screen can be tied into a room controller or automation system for triggered raise/lower.

What surfaces are available?

The Targa is offered in several Draper surfaces, including Matt White XT1000E, Contrast Grey XH800E, and ClearSound White Weave XT900E. Because gain and viewing cone vary by surface, contact Creation Networks to match a surface to your room's ambient light and seating layout.

What warranty and support are included?

The Targa carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
