Draper Targa – 10', NTSC – 116016QU

Product Overview

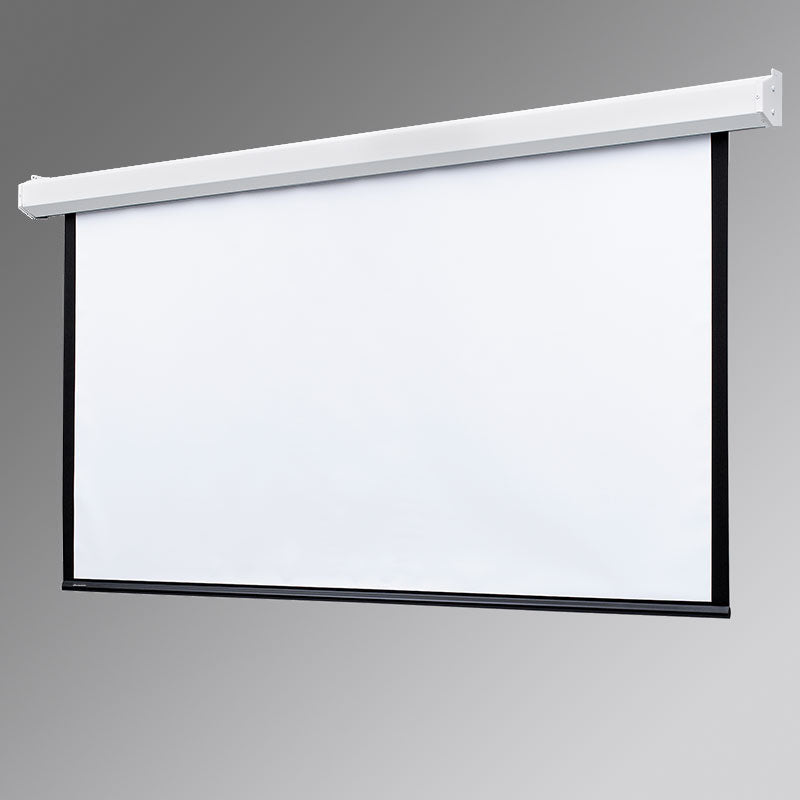

The Draper Targa is a free-hanging, ceiling- or wall-mounted electric projection screen for permanent commercial AV installations. This 10' NTSC (4:3) model is configured with Draper's Quiet Motor option, making it a practical 10' motorized projection screen for boardrooms, conference rooms, and training rooms that need low operating noise. The tubular motor is housed inside the roller tube, so the screen retracts into a slim pentagonal steel case for a low-profile finish. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Targa electric projection screen is engineered for integrators specifying an affordable, motor-in-roller screen for fixed front-projection rooms in the 4:3 NTSC format. SKU 116016QU carries two option suffixes: the Q denotes Draper's Quiet Motor for reduced operating noise, and the U denotes an additional factory-configured option that Creation Networks can confirm against Draper's specification. The screen is free-hanging and held flat by a weighted bottom dowel, and the fire-retardant, mildew-resistant viewing surface is available in Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E, or Chroma Key Green to match the room's lighting and application. The 22-gauge pentagonal steel case carries a scratch-resistant white finish, and the matching endcaps double as universal mounting brackets for either wall or ceiling installation, with optional floating wall brackets and a ceiling trim kit available for recessed jobs. A 110-120V three-position control switch lets an operator stop or reverse the screen at any point in its travel. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Quiet Motor option — This unit is configured with Draper's Quiet Motor to reduce operating noise in boardrooms and other sound-sensitive spaces.
• Motor-in-roller design — The tubular motor is concealed inside the 3" roller tube, keeping the case slim and the installation low-profile.
• 4:3 NTSC format — This 10' model is configured for the NTSC (4:3) aspect ratio common to legacy data and video presentation sources.
• Configurable viewing surface — Choose Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E, or Chroma Key Green to suit room lighting and application.
• Free-hanging with weighted dowel — The surface hangs flat under a weighted bottom dowel for a clean picture without field tensioning.
• Pentagonal steel case — A 22-gauge steel case with a scratch-resistant white finish (black available on request) protects the surface when retracted.
• Universal mounting endcaps — Matching endcaps double as wall or ceiling brackets, with optional floating wall brackets and a ceiling trim kit for recessed installs.
• UL Listed with 5-year warranty — The unit is UL Listed for the U.S. and Canada and supplied by Creation Networks with Draper's 5-year warranty.

Typical Applications

• Corporate boardrooms requiring quiet motorized operation
• Conference rooms and commercial meeting spaces with fixed front projection
• Training rooms and multi-purpose rooms

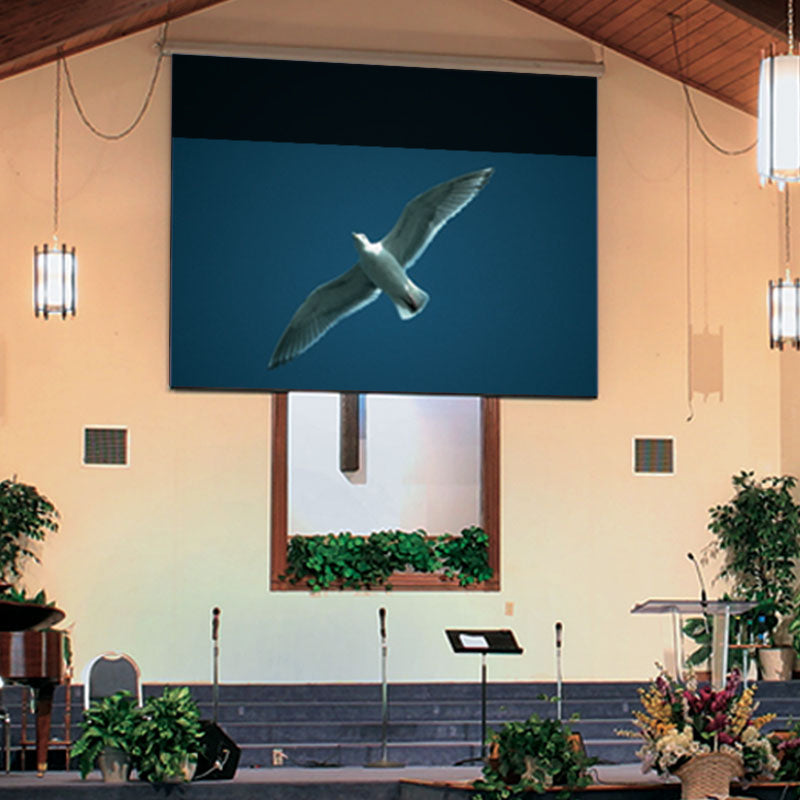

• Houses of worship and government meeting spaces
• Hotel and hospitality presentation rooms

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). The U suffix denotes an additional factory-configured option; confirm exact viewable dimensions, surface selection, and configuration with Creation Networks before ordering.

Frequently Asked Questions

What do the Q and U suffixes on SKU 116016QU mean?

The Q denotes Draper's Quiet Motor option, which reduces the operating noise of the tubular motor. The U denotes an additional factory-configured option; contact Creation Networks and we will verify the exact configuration against Draper's specification before you order.

What aspect ratio is this Targa?

This model is configured for the NTSC (4:3) format at a nominal 10' size, suited to conference rooms and training rooms presenting 4:3 data and video content. HDTV (16:9) and 16:10 formats are available in other Targa configurations.

Which viewing surface should I choose?

The Targa is available with Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E (acoustically transparent), or Chroma Key Green. Matt White suits controlled-light rooms, while Contrast Grey improves black levels under moderate ambient light. Contact us to match the surface to your room.

Can the Targa be ceiling-mounted or recessed?

Yes. The matching endcaps act as universal brackets for wall or ceiling surface mounting. For a recessed look, Draper offers an optional ceiling trim kit; Draper recommends an additional 12" (30 cm) of top drop for optimal ceiling-recessed installation.

What projectors and mounts are compatible?

The Targa works with any commercial front projector matched to its 4:3 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Targa carries Draper's 5-year warranty and is UL Listed for the U.S. and Canada, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
