Draper ShadowBox Clarion, 90", NTSC, ClearSound NanoPerf XT1000V

Product Overview

The Draper ShadowBox Clarion is a fixed frame projection screen with a recessed shadowbox border that suppresses overscan light spill for sharper edge definition built for permanent commercial AV installations. This configuration pairs a 90" diagonal in NTSC 4:3 format with the ClearSound NanoPerf XT1000V surface, making it a acoustically transparent projection screen suited to rooms where loudspeakers sit behind the screen.

ClearSound NanoPerf XT1000V is a 1.0 gain acoustically transparent surface; micro-perforations let audio from behind-screen loudspeakers pass through without degradation.

Every Draper ShadowBox Clarion ships through Creation Networks at authorized dealer pricing with Draper's 5-year warranty. See the full range in the Draper projection screen collection.

Product Description

The 90" Draper ShadowBox Clarion is a permanently mounted fixed frame projection screen for the NTSC 4:3 format. The ClearSound NanoPerf XT1000V surface (1.0 gain) is paired with 1-1/2" (38 mm) extruded aluminum frame, black powder-coated with a black Vel-Tex overlay, and hook-and-loop fasteners secure the surface to the back of the frame for a flat, uniformly tensioned image. This ShadowBox Clarion is configured for front projection with behind-screen audio, since the surface is acoustically transparent. It is engineered as a commercial-grade acoustically transparent projection screen for integrators specifying draper shadowbox clarion fixed frame projection screen solutions.

Installation is straightforward for AV system designers: wall-mount with a mounting flange that mates with wall brackets; smaller sizes up to 12 ft (3.7 m) wide can be flown. Custom sizes and curved configurations are available from Draper on request. The ShadowBox Clarion integrates into conference rooms, training rooms, and larger presentation venues where a flat, uniformly tensioned image is required. Maximum image width reaches 16' (4.9 m), and custom sizes are available. For configuration support, lead times, and comparable Draper screens, contact Creation Networks at creationnetworks.net or browse the Draper collection.

Key Features

• Tensioned viewing surface — Hook-and-loop fasteners secure the surface to the back of the frame for a flat, uniformly tensioned image.
• ClearSound NanoPerf XT1000V surface — Delivers 1.0 gain for acoustically transparent front projection in this configuration.

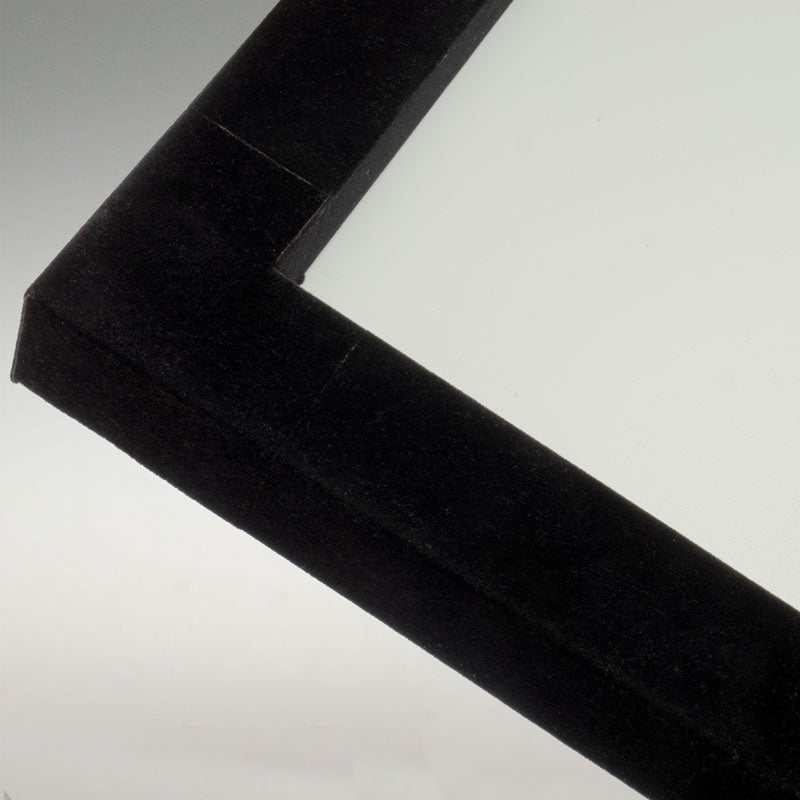

• Recessed shadowbox border — The deep black Vel-Tex border absorbs projector overscan to keep the image crisp at the edges.
• Aluminum frame — A 1-1/2" (38 mm) powder-coated aluminum frame keeps the surface flat across the full diagonal.
• Field-serviceable design — The viewing surface attaches to the frame so it can be inspected or replaced in the field.
• Commercial-grade mounting — Designed for permanent installation: wall-mount with a mounting flange that mates with wall brackets; smaller sizes up to 12 ft (3.7 m) wide can be flown.
• 5-year Draper warranty — Backed by Draper's 5-year limited warranty through authorized dealer Creation Networks.

Typical Applications

• Corporate conference rooms and boardrooms
• Training rooms and all-hands spaces
• Higher-education lecture halls and classrooms
• Commercial meeting and multi-purpose rooms
• Houses of worship with behind-screen loudspeakers
• Auditoriums and performing arts venues

Technical Specifications

Frequently Asked Questions

Is the ClearSound NanoPerf XT1000V surface right for my room?

Yes. The ClearSound NanoPerf XT1000V surface is acoustically transparent, so loudspeakers can be placed directly behind the screen without muffling audio.

How is this screen installed?

It is a fixed frame projection screen for permanent installation. Wall-mount with a mounting flange that mates with wall brackets; smaller sizes up to 12 ft (3.7 m) wide can be flown. Custom sizes and curved configurations are available from Draper on request.

Will it integrate with my projector and control system?

Yes. As a passive fixed frame screen it is compatible with any commercial projector matched to the NTSC 4:3 format and 1.0 gain surface; there are no electronics to integrate with a control system.

Can the viewing surface be replaced?

Yes. The surface attaches to the frame and is field-serviceable, and Draper replacement surface kits are available separately.

What size projector image does it support?

This unit provides a 90" diagonal image in NTSC 4:3 format. The ShadowBox Clarion line supports custom sizes up to 16' (4.9 m) maximum image width.

What warranty and support are included?

The screen carries Draper's 5-year limited warranty. Creation Networks provides pre-sale specification help and post-sale support at creationnetworks.net.
