Draper Premier XL – 220", NTSC – 101388

Product Overview

The Draper Premier XL is a large-format, tab-tensioned motorized projection screen built for auditoriums, all-hands rooms, and large commercial venues where standard screen sizes fall short. This 220" diagonal model in NTSC (4:3) format pairs an extruded aluminum case with the Matt White XT1000VB surface, delivering a flat, wrinkle-free image across a full 180° viewing cone. As a large-format motorized projection screen, it is engineered for permanent installations that demand reliable electric operation and a tensioned surface. All units ship through Creation Networks at authorized-dealer pricing with Draper's manufacturer warranty.

Product Description

The Draper Premier XL 220" projection screen (Part # 101388) is an electric, ceiling- or wall-mounted screen designed for integrators specifying a tab-tensioned electric screen in large rooms. The tab-tensioning system uses side tab-guide cables and a weighted bottom dowel to hold the viewing surface flat, which is critical for image geometry on wide surfaces. RF-welded tabs create a durable seal and are warranted against separation for five years. The Matt White XT1000VB surface is a matt white diffusing surface with 1.0 gain that reflects a uniformly bright image across a full 180° viewing cone with accurate color balance, making it a practical choice for commercial auditorium projection where ambient light can be reasonably controlled. The fabricated extruded aluminum case has a curved front and an L-shaped back/top cover in a black finish, measuring 6-3/4" high by 6-3/4" deep for a compact profile above the image. A standard 12" black top drop positions the image below the case, and optional wall or ceiling mounting brackets add installation flexibility. The screen includes a 110-120V three-position control switch as standard, with optional low-voltage and quiet motor controllers available for tighter AV system integration. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — Side tab-guide cables and a weighted bottom dowel keep the surface flat for consistent image geometry across the full width.
• Large-format sizing — Supports large commercial image sizes up to a 16' (488 cm) maximum image width for auditoriums and large meeting spaces.
• Matt White XT1000VB surface — Delivers 1.0 gain and a full 180° viewing cone with accurate color for wide seating layouts in controlled-light rooms.
• Extruded aluminum case — A fabricated aluminum case with curved front and black finish measures 6-3/4" high by 6-3/4" deep for a compact profile.
• RF-welded tabs — Radio-frequency welded tabs form a durable seal and are warranted against separation for five years.
• Flexible control options — Ships with a standard 110-120V three-position switch, with optional low-voltage and quiet motor controllers for AV system integration.
• Wall or ceiling mounting — Optional wall or ceiling brackets support surface-mounted installation in permanent venues.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

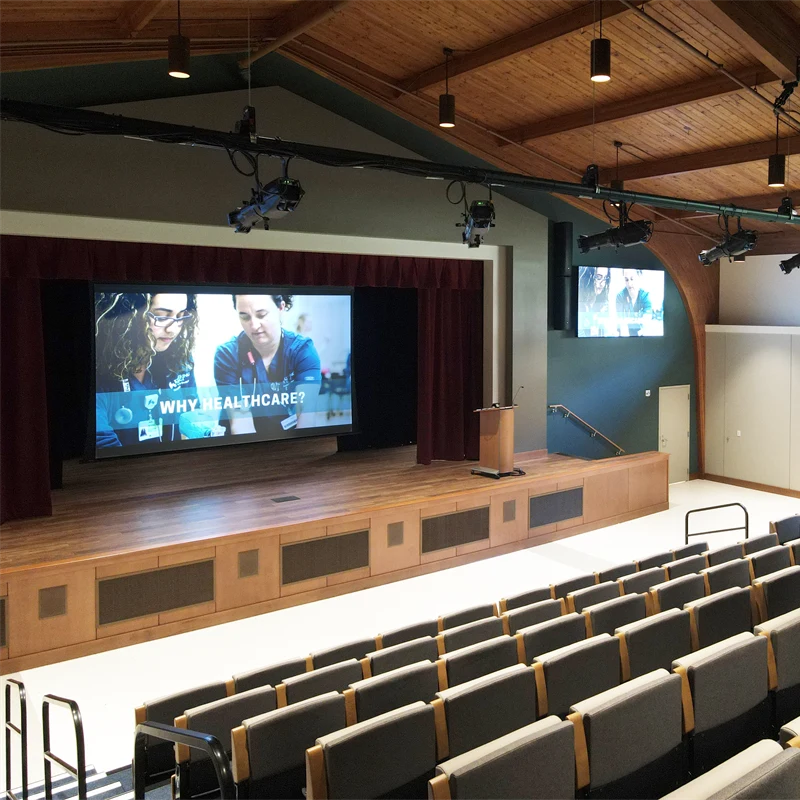

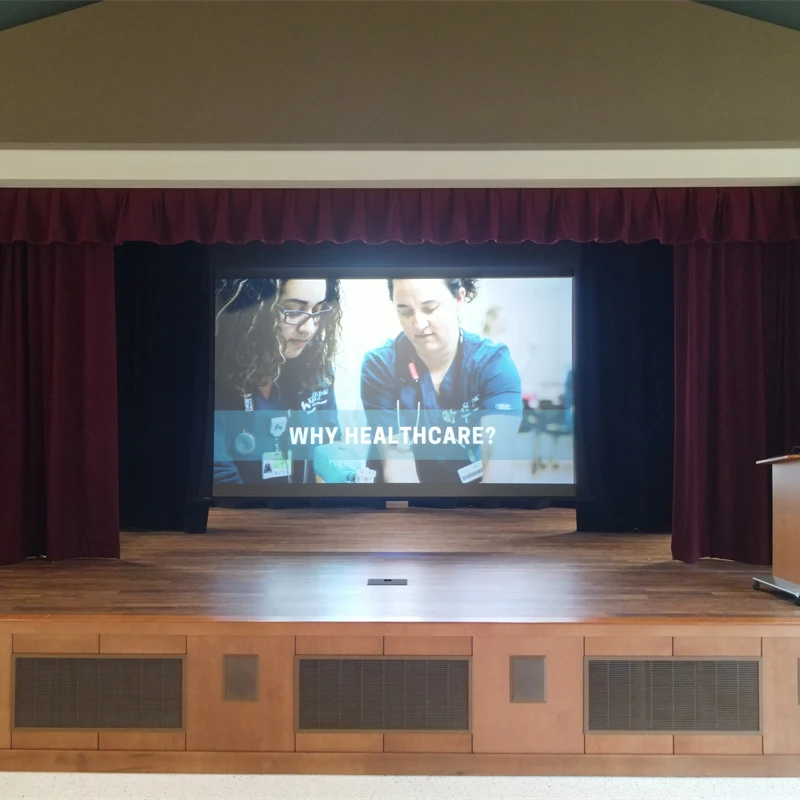

• Auditoriums requiring a large-format front-projection image
• All-hands rooms and town-hall spaces in corporate facilities
• Houses of worship using front projection in large sanctuaries
• Government spaces and large commercial meeting rooms
• Multi-purpose rooms and training rooms needing a retractable large screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier XL a tab-tensioned screen?

Yes. The Premier XL is a Draper Series V tab-tensioned electric screen. Side tab-guide cables and a weighted bottom dowel maintain even lateral and vertical tension, holding the surface flat for consistent image geometry on large surfaces.

What is the maximum image size for this model?

The Premier XL is a large-format model with a maximum image width up to 16' (488 cm). This specific unit is a 220" diagonal screen in NTSC (4:3) format with a 132" x 176" image area. Contact Creation Networks to confirm exact viewable dimensions for your room.

What projectors and mounts are compatible with the Premier XL?

It works with any commercial front projector matched to its 220" NTSC (4:3) format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How does this screen integrate with an AV control system?

The screen ships with a standard 110-120V three-position control switch. Optional low-voltage and quiet motor controllers are available for cleaner integration with commercial AV control and automation systems. Ask Creation Networks about the control option that fits your design.

Can the Premier XL be mounted to the ceiling?

Yes. It is designed for wall or ceiling installation, and optional wall or ceiling mounting brackets provide added flexibility for surface-mounted deployments in permanent venues.

What warranty and support are included?

The Premier XL carries Draper's manufacturer warranty, including a five-year warranty against RF-welded tab separation, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
