Draper Premier XL – 210", NTSC – 101696

Product Overview

The Draper Premier XL is a large-format, tab-tensioned motorized projection screen for permanent commercial AV installations that need a large, flat image. This 210" diagonal model is configured in the 4:3 NTSC format, a good match for data, document cameras, and legacy 4:3 content in training rooms and lecture halls. As a large-format electric projection screen, it combines a fabricated extruded aluminum case with an RF-welded tab-tensioned surface for geometrically accurate front projection. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Premier XL tab-tensioned screen is engineered for integrators specifying a permanent ceiling- or wall-mounted electric screen in larger venues. The viewing surface is held flat by a lateral tab-guide cable system with RF-welded tabs, which Draper warrants against separation for five years, keeping the projected image stable in a fixed installation. The model accommodates a maximum image width up to 16' (488 cm), and this 4:3 NTSC configuration suits classrooms, courtrooms, and control-room displays that still rely on 4:3 source material. The case is a fabricated extruded aluminum extrusion with a curved front and an L-shaped back/top cover finished in black, measuring 6-3/4" high by 6-3/4" deep (17 cm x 17 cm). An instantly reversible tubular motor is mounted inside the 4" metal roller with thermal overload protection and an electric brake, and the unit includes a 110-120V, 3-position control switch as standard. The image area is fully framed in black with a standard 12" (30 cm) black top drop, and optional wall or ceiling brackets give integrators flexibility around building structure. This makes the Premier XL well suited to large-format commercial deployments where a tensioned, motorized 4:3 image surface is required. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — A lateral tab-guide cable system with RF-welded tabs holds the surface flat for a wrinkle-free, geometrically accurate image.
• Large-format sizing — The model supports a maximum image width up to 16' (488 cm), making it suitable for auditoriums and large meeting spaces.
• 4:3 NTSC format — This unit is configured for 4:3 data and legacy content common in training and instructional environments.
• Extruded aluminum case — A fabricated case with a curved front and L-shaped back/top cover in a black finish gives a finished appearance for wall or ceiling mounting.
• Compact case profile — The case measures 6-3/4" high by 6-3/4" deep (17 cm x 17 cm) to minimize its footprint above the image.
• Reversible tubular motor — An instantly reversible motor mounted inside the 4" metal roller includes a thermal overload protector and electric brake.
• Standard 3-position control — A 110-120V, 3-position switch is included, with additional control options available.
• RF-welded tab warranty — The RF-welded tabs are warranted against separation for five years, and the screen is UL Listed and supplied with Draper's warranty through Creation Networks.

Typical Applications

• Training rooms and classrooms using 4:3 data and document-camera content

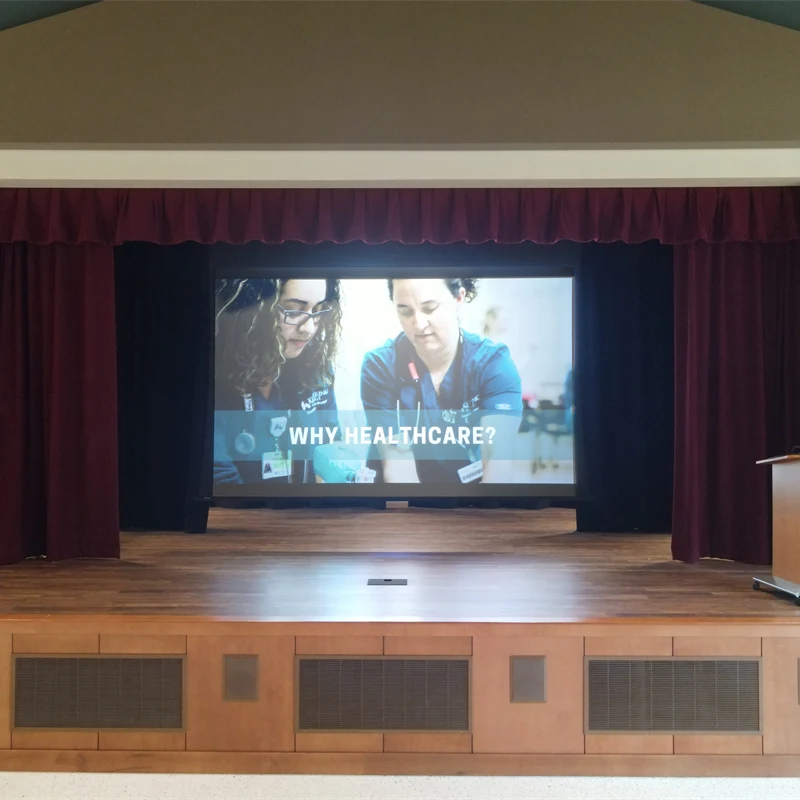

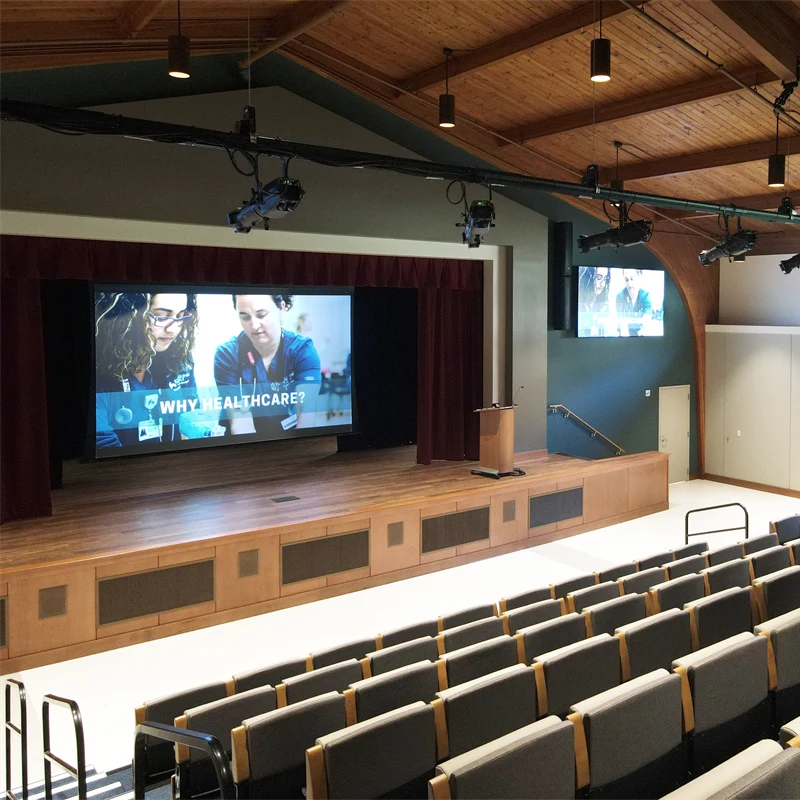

• Auditoriums and lecture halls requiring a large, tensioned front-projection image
• Commercial meeting spaces and multi-purpose rooms with permanent motorized screens
• Government spaces and briefing centers needing a flat, geometrically accurate picture
• Houses of worship with front-projected image walls

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Premier XL a tab-tensioned screen?

Yes. The Premier XL uses a lateral tab-guide cable system with RF-welded tabs to hold the viewing surface flat, which keeps the projected image geometrically accurate and free of waves or curl in a permanent installation.

Why choose the 4:3 NTSC format?

The 4:3 NTSC format suits environments that still present 4:3 source material such as document cameras, legacy data systems, and certain instructional or control-room content. Contact us if you need help matching format to your source devices.

How large an image does this model support?

The Premier XL model supports a maximum image width up to 16' (488 cm). This unit is configured at a 210" diagonal in 4:3 NTSC format. Contact us to confirm the exact viewable dimensions for your room.

What projectors and mounts work with this screen?

Any commercial front projector matched to the 210" 4:3 image size and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Can it be mounted on a wall or a ceiling?

Both. The extruded aluminum case installs with optional wall or ceiling brackets, which can be positioned to avoid conflicts with building structure.

What warranty and support are included?

The Premier XL carries Draper's standard manufacturer warranty, with RF-welded tabs warranted against separation for five years, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
