Draper Premier XL – 208 3/8", 21:9 Ultrawide – 101822CBQ

Product Overview

The Draper Premier XL is a large-format, tab-tensioned motorized projection screen built for permanent commercial AV installations that call for a big, geometrically accurate image. This 208 3/8" diagonal model is configured in a 21:9 ultrawide format for panoramic content in auditoriums, large boardrooms, and lecture halls. As a large-format electric projection screen, it pairs a fabricated extruded aluminum case with an RF-welded tab-tensioned surface for a flat, wrinkle-free picture across the full image width. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Premier XL tab-tensioned screen is engineered for integrators specifying a permanent ceiling- or wall-mounted electric screen in larger venues. The viewing surface is held flat by a lateral tab-guide cable system with RF-welded tabs, which Draper warrants against separation for five years, keeping the image geometrically stable in a fixed installation. The screen accommodates a maximum image width up to 16' (488 cm), and this 21:9 ultrawide configuration suits presentation walls and panoramic front-projection content. The case is a fabricated extruded aluminum extrusion with a curved front and an L-shaped back/top cover finished in black, measuring 6-3/4" high by 6-3/4" deep (17 cm x 17 cm) for a clean line above the screen. An instantly reversible tubular motor is mounted inside the 4" metal roller with thermal overload protection and an electric brake, and this unit is supplied in a quiet (Q) motor configuration for reduced operating noise. The image area is fully framed in black with a standard 12" (30 cm) black top drop, and optional wall or ceiling brackets give integrators flexibility around building structure. This makes the Premier XL well suited to large-format commercial deployments where a tensioned, motorized image surface is required. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — A lateral tab-guide cable system with RF-welded tabs holds the surface flat for a wrinkle-free, geometrically accurate image.
• Large-format sizing — The model supports a maximum image width up to 16' (488 cm), making it suitable for auditoriums and large meeting spaces.
• 21:9 ultrawide format — This unit is configured for panoramic front-projection content on presentation walls.
• Extruded aluminum case — A fabricated case with a curved front and L-shaped back/top cover in a black finish gives a finished appearance for wall or ceiling mounting.
• Compact case profile — The case measures 6-3/4" high by 6-3/4" deep (17 cm x 17 cm) to minimize its footprint above the image.
• Reversible tubular motor — An instantly reversible motor mounted inside the 4" metal roller includes a thermal overload protector and electric brake.
• Quiet (Q) motor configuration — This unit ships in a quiet motor package for lower operating noise in occupied rooms.
• RF-welded tab warranty — The RF-welded tabs are warranted against separation for five years, and the screen is UL Listed and supplied with Draper's warranty through Creation Networks.

Typical Applications

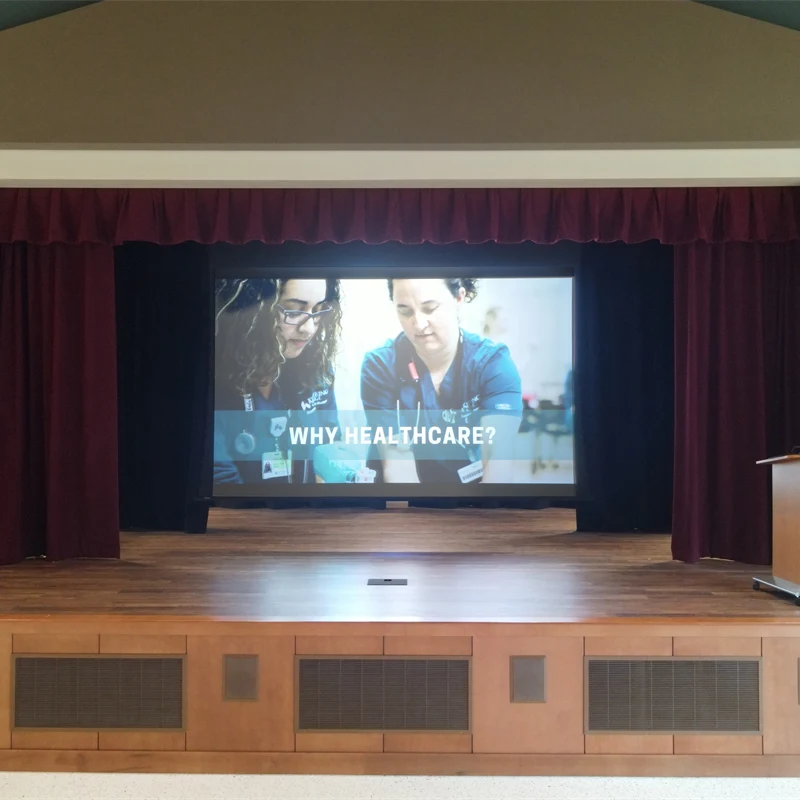

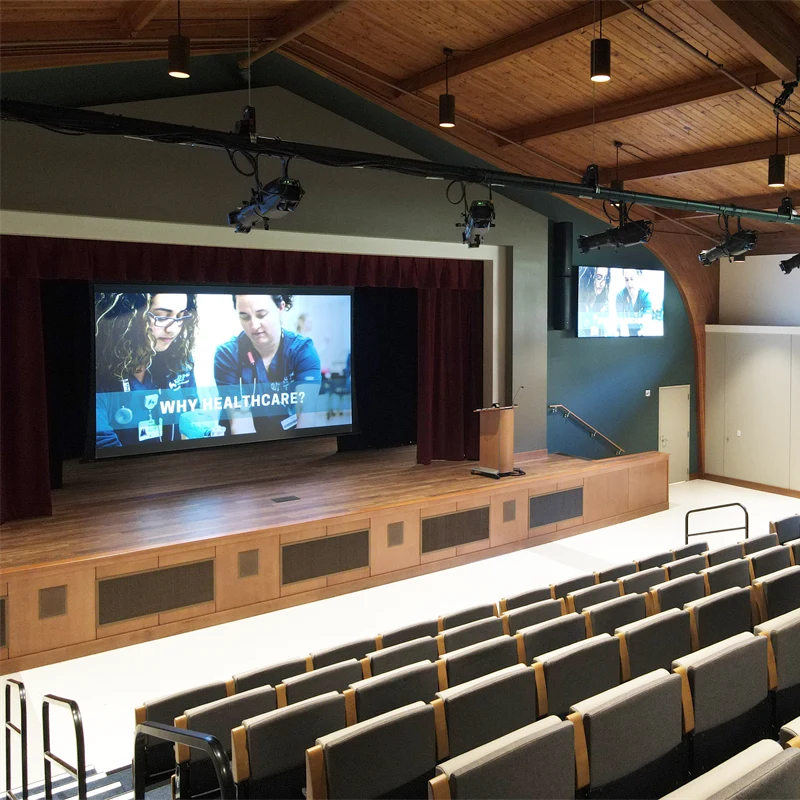

• Auditoriums and lecture halls requiring a large, tensioned front-projection image
• Corporate boardrooms and all-hands rooms using panoramic 21:9 content
• Commercial meeting spaces and multi-purpose rooms with permanent motorized screens
• Training rooms and briefing centers needing a flat, geometrically accurate picture
• Houses of worship with front-projected image walls

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Premier XL a tab-tensioned screen?

Yes. The Premier XL uses a lateral tab-guide cable system with RF-welded tabs to hold the viewing surface flat, which keeps the projected image geometrically accurate and free of waves or curl in a permanent installation.

How large an image does this model support?

The Premier XL model supports a maximum image width up to 16' (488 cm). This unit is configured at a 208 3/8" diagonal in 21:9 ultrawide format. Contact us to confirm the exact viewable dimensions for your room.

Can it be mounted on a wall or a ceiling?

Both. The extruded aluminum case installs with optional wall or ceiling brackets, which can be positioned to avoid conflicts with building structure. Browse our projector mounts and lifts for companion hardware.

What projectors work with this screen?

Any commercial front projector matched to the 208 3/8" 21:9 image size and your room's throw distance. Browse our commercial projectors or contact us for a throw-distance calculation.

How quiet is the motor?

This unit ships in a quiet (Q) motor configuration, which reduces operating noise compared with the standard motor package for use in occupied conference and presentation spaces.

What warranty and support are included?

The Premier XL carries Draper's standard manufacturer warranty, with RF-welded tabs warranted against separation for five years, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
