Draper Premier XL – 200", NTSC – 101810

Product Overview

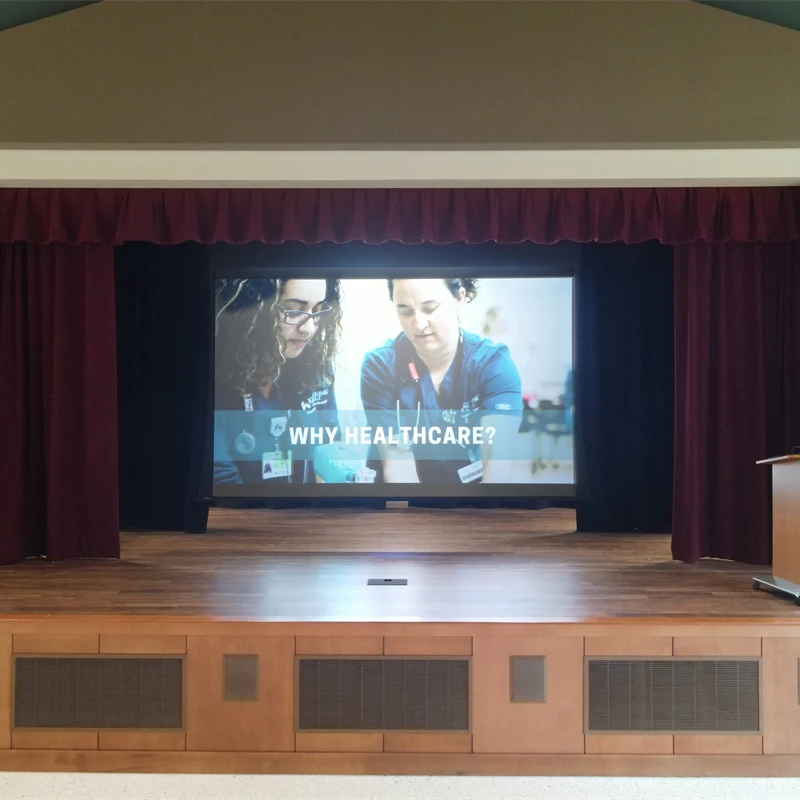

The Draper Premier XL is a large-format, tab-tensioned motorized projection screen built for big rooms that need a wide, perfectly flat image on demand. This 200" diagonal NTSC (4:3) model lowers from an extruded aluminum case to a rigidly tensioned surface, making it a capable 200-inch large-format projection screen for auditoriums, houses of worship, and large multi-purpose rooms still standardized on 4:3 content. RF-welded tabs and a standard 12" black top drop hold the wide surface flat for accurate front projection. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Premier XL motorized projection screen extends the Premier platform to larger sizes for auditoriums, worship spaces, and large-format commercial rooms. It uses the same tab-tensioning approach with RF-welded tabs down each edge to maintain even lateral tension, holding this 200" 4:3 surface flat for accurate geometry across a wide image. Where the standard Premier uses a steel case, the Premier XL is housed in a fabricated extruded aluminum case with a curved front and L-shaped back/top cover in a black finish, measuring 6-3/4" high by 6-3/4" deep to support the larger roller. The image area is fully framed in black with a standard 12" black top drop to set proper image height. This unit ships with the standard motor and a 110-120V three-position switch as the standard control; optional Plug & Play low-voltage (LP) or quiet (QLP) controllers are available, and the Premier XL supports image widths up to 16' (488 cm). Its 4:3 (NTSC) format suits large rooms with legacy presentation systems and archived 4:3 content. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, formats, and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Large-format sizing — The Premier XL supports image widths up to 16' (488 cm), suiting auditoriums and other large rooms.
• Tab-tensioned viewing surface — The surface is held flat by tabs along both edges to eliminate waves and deliver accurate image geometry across a wide image.
• RF-welded tabs — Radio-frequency welded tabs form a durable seal that resists separation and is warranted against separation for five years.
• Extruded aluminum case — A fabricated extruded aluminum case with curved front and L-shaped cover in black houses the larger roller assembly.
• Motorized operation — A tubular motor raises and lowers the screen electrically so it stows out of sight when the room is used for other purposes.
• Flexible control options — Ships with a 110-120V three-position switch; optional Plug & Play low-voltage (LP) or quiet (QLP) controllers are available.
• UL Listed with 5-year warranty — The Premier XL is UL Listed and backed by Draper's standard warranty, supplied through Creation Networks as an authorized dealer.

Typical Applications

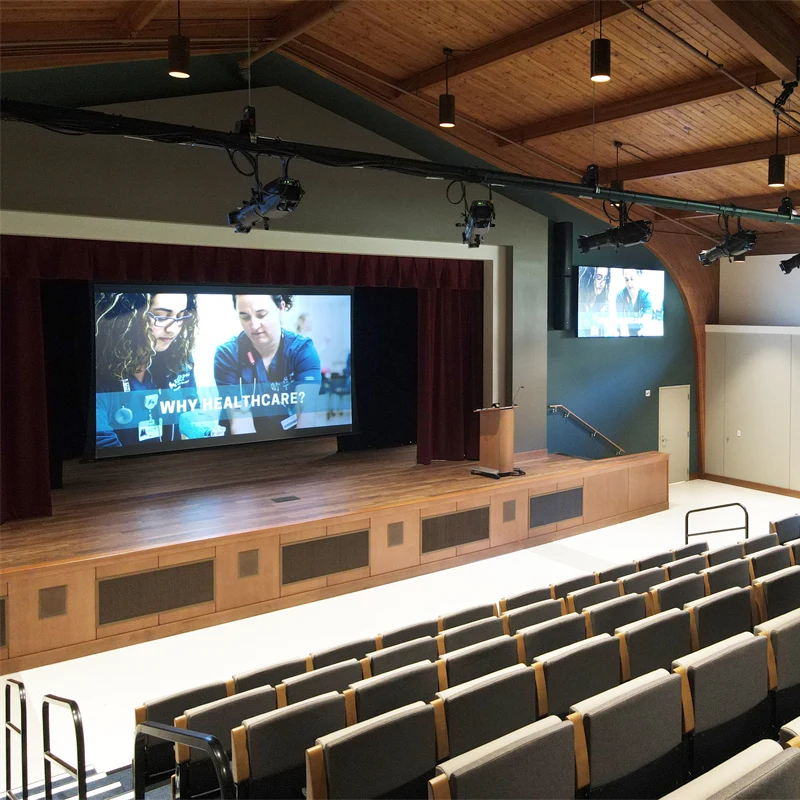

• Auditoriums and large lecture halls
• Houses of worship using large-format front projection
• Large multi-purpose rooms and all-hands rooms
• Training rooms and commercial meeting spaces requiring a wide image
• Government and municipal assembly spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How large can the Premier XL go?

The Premier XL is a large-format screen that supports image widths up to 16' (488 cm). This unit is a 200" diagonal 4:3 configuration; confirm exact viewable dimensions with us before ordering.

How does the Premier XL differ from the standard Premier?

The Premier XL uses the same tab-tensioning and RF-welded tab construction but is built for larger sizes, with a fabricated extruded aluminum case (6-3/4" x 6-3/4") instead of the standard Premier's steel case. The standard Premier tops out at 12' image width; the XL goes to 16'.

What control options are available?

It ships with a 110-120V three-position switch as standard, with optional Plug & Play low-voltage (LP) or quiet (QLP) controllers available. Note that QLP is not available for screens over 119" diagonal in 16:9 format. Contact us to match the right controller.

Is this a wall-mount or ceiling-mount screen?

Both. The Premier XL supports wall or ceiling mounting, with optional wall or ceiling brackets for added flexibility. Given the size and weight of a large-format screen, confirm structural support with us during specification.

What projectors and mounts work with this screen?

The Premier XL works with commercial front projectors matched to its 4:3 format and the throw distance of a large room. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Premier XL is UL Listed and carries Draper's standard warranty, with RF-welded tabs warranted against separation for five years. It is supplied by Creation Networks as an authorized dealer; contact us at creationnetworks.net for pre-sale specification help and post-sale support.
