Draper Premier XL – 20', NTSC – 101390

Product Overview

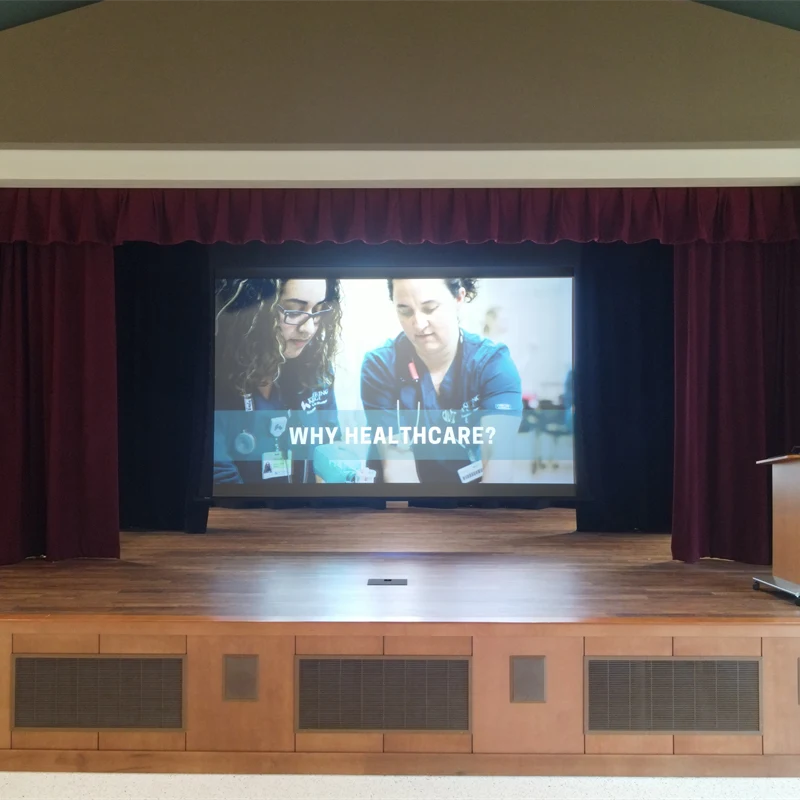

The Draper Premier XL is a large-format tab-tensioned motorized projection screen for permanent installations that exceed standard screen sizes, such as auditoriums, all-hands rooms, and houses of worship. This 20' (240") NTSC (4:3) model is configured with the OptiFlex Matt White XT1000VB front-projection surface (Part #101390), giving a 144" x 192" image area at the model's 16' maximum image width. Series V tab-tensioning holds the large surface flat across its full width in a fabricated extruded aluminum case. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Premier XL electric projection screen extends the Premier platform to larger sizes, with a maximum image width up to 16' (488 cm). This unit is a large-format 4:3 (NTSC) front-projection screen with a 20' diagonal and a 144" x 192" image area, configured with the OptiFlex Matt White XT1000VB surface. Matt White XT1000VB is a 1.0-gain matt white diffusing surface that reflects a uniformly bright image across a full 180° viewing cone with accurate color, recommended for rooms where ambient light can be reasonably controlled; it is GREENGUARD Gold certified for low chemical emissions. Series V tab-tensioning uses a tab-guide cable system along each side to keep the surface flat, and RF-welded tabs are warranted against separation for five years. The screen is housed in a fabricated extruded aluminum case with a curved front and L-shaped back/top cover in a black finish, measuring 6-3/4" high x 6-3/4" deep (17 x 17 cm), with the image area fully framed in black and a standard 12" (30 cm) black top drop. This unit operates on 220 V and includes a 110-120V 3-position control switch as standard, with additional control options available for integration into commercial AV control systems. The 4:3 format and large image area suit auditoriums and large training or worship spaces that display data and mixed content to a wide audience. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for other sizes and surfaces, or contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Large-format design — The Premier XL supports image widths up to 16' (488 cm); this unit reaches that maximum with a 144" x 192" image area.
• OptiFlex Matt White XT1000VB surface — The 1.0-gain matt white surface delivers a uniformly bright image and accurate color across a full 180° viewing cone.
• Series V tab-tensioning — Tab-guide cables along both edges hold the large surface flat across its full width for an even, wrinkle-free image.
• Extruded aluminum case — The fabricated aluminum case with curved front measures 6-3/4" high x 6-3/4" deep (17 x 17 cm) for permanent wall or ceiling mounting.
• RF-welded tab construction — Radio-frequency-welded tabs form a durable seal warranted against separation for five years.
• GREENGUARD Gold certified surface — The viewing surface meets GREENGUARD Gold limits for low chemical emissions into indoor air.
• Made in USA — Manufactured at Draper's facility in Spiceland, Indiana.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full Draper manufacturer warranty coverage.

Typical Applications

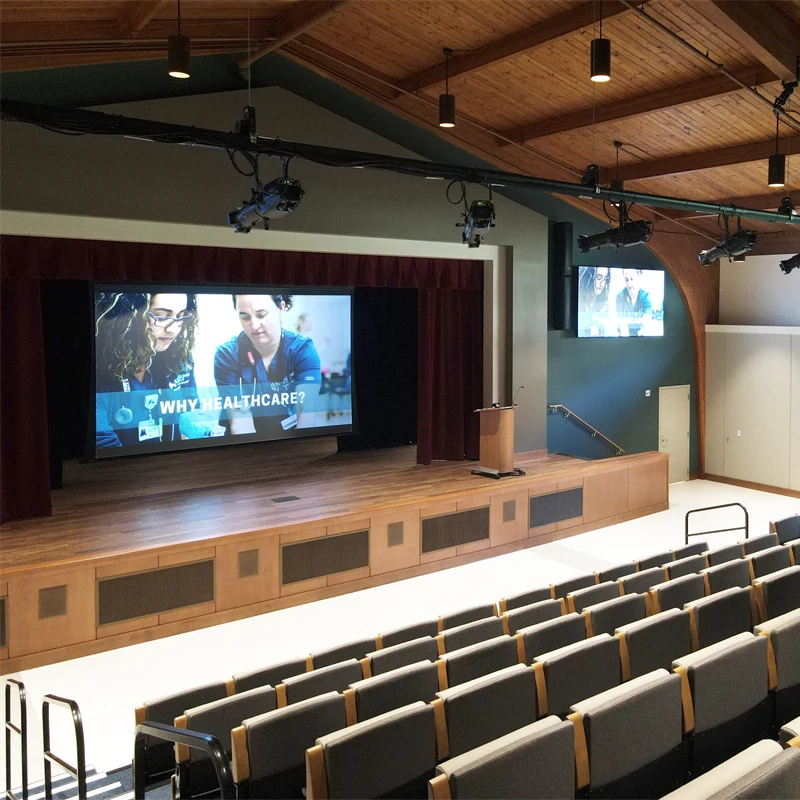

• Auditoriums and large venues using front projection to a wide audience
• Houses of worship displaying lyrics, video, and presentation content
• All-hands rooms and large commercial meeting spaces
• Large training rooms and multi-purpose rooms standardized on 4:3 content
• Government and education spaces requiring a large-format electric screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Premier XL a tensioned screen?

Yes. The Premier XL is a Series V tab-tensioned electric screen. Tab-guide cables run along both edges and RF-welded tabs hold the large surface flat across its full width, delivering an even, wrinkle-free image.

How large is this screen and what is the model's maximum size?

This unit has a 20' (240") diagonal in 4:3 (NTSC), giving a 144" x 192" image area. The 192" (16') image width is the maximum image width offered on the Premier XL. Custom sizes within the model's limits are available on request.

What surface is installed and how does it handle ambient light?

The Matt White XT1000VB is a 1.0-gain matt white front-projection surface with a full 180° viewing cone and typical contrast. It is recommended for rooms where ambient light can be reasonably controlled and is GREENGUARD Gold certified.

What projectors and mounts are compatible?

It works with commercial front projectors matched to its large 4:3 image and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the Premier XL mounted?

The extruded aluminum case mounts to a wall or ceiling. Optional wall- or ceiling-mounting brackets provide added installation flexibility for large-format deployments.

Can it integrate with a commercial AV control system?

Yes. A 110-120V 3-position switch is included as standard, and additional control options are available to integrate the screen with commercial AV control systems. Contact Creation Networks for control configuration.

What warranty and support are included?

The Premier XL carries Draper's 5-year warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
