Draper Premier XL – 184", HDTV – 101800

Product Overview

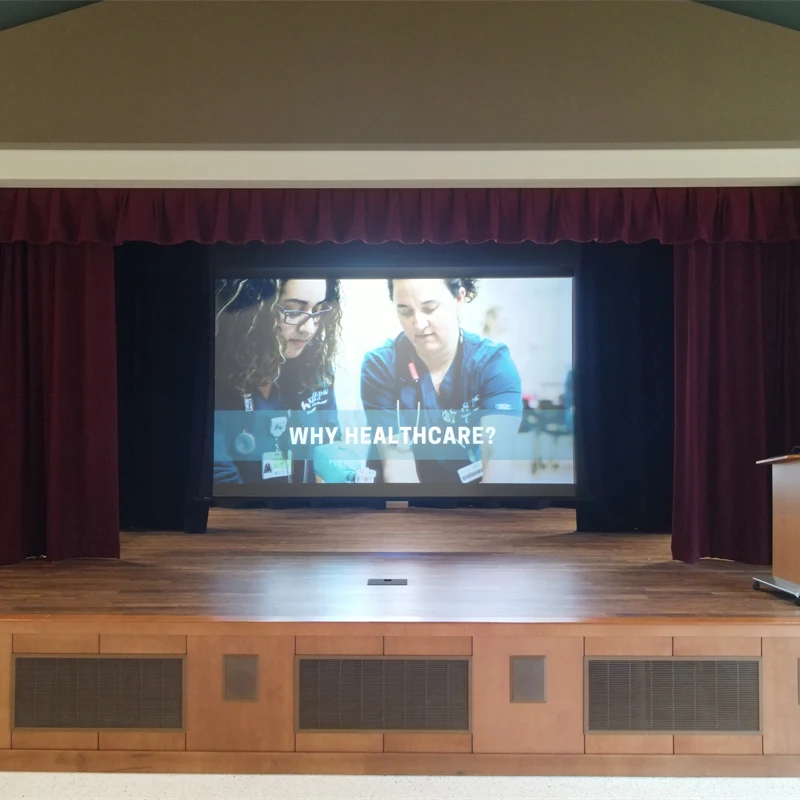

The Draper Premier XL is a large-format, tab-tensioned motorized projection screen for auditoriums, all-hands rooms, and large commercial meeting spaces. This 184" diagonal model in HDTV (16:9) format is built on a fabricated extruded aluminum case with a tab-tensioned viewing surface, making it a strong fit as an HDTV motorized projection screen for large-venue front projection. As a large-format tab-tensioned electric screen, it holds a flat, wrinkle-free image across its full width. All units ship through Creation Networks at authorized-dealer pricing with Draper's manufacturer warranty.

Product Description

The Draper Premier XL 184" projection screen (Part # 101800) is an electric, ceiling- or wall-mounted screen built for integrators specifying a 16:9 HDTV projection screen in large rooms. The tab-tensioning system uses side tab-guide cables and a weighted bottom dowel to hold the surface flat, which is critical for image geometry across wide surfaces, and the RF-welded tabs are warranted against separation for five years. As a base-configuration unit, it ships with Draper's standard 110-120V three-position control switch, with optional low-voltage and quiet motor controllers available on other Premier XL configurations for tighter AV system integration. The Premier XL accepts a range of Draper Series V tab-tensioned viewing surfaces; confirm the exact surface for this SKU with Creation Networks before ordering. The fabricated extruded aluminum case has a curved front and black finish and measures 6-3/4" high by 6-3/4" deep for a compact profile above the image, with a standard 12" black top drop and optional wall or ceiling mounting brackets. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• HDTV 16:9 format — A 16:9 image area suited to video, cinema, and standard widescreen presentation content.
• Tab-tensioned viewing surface — Side tab-guide cables and a weighted bottom dowel keep the surface flat for consistent image geometry across the full width.
• Standard three-position control — Ships with Draper's standard 110-120V three-position switch, with optional low-voltage and quiet motor controllers available on other configurations.
• Large-format sizing — Supports large commercial image sizes up to a 16' (488 cm) maximum image width for large venues.
• Extruded aluminum case — A fabricated aluminum case with curved front and black finish measures 6-3/4" high by 6-3/4" deep for a compact profile.
• RF-welded tabs — Radio-frequency welded tabs form a durable seal and are warranted against separation for five years.
• Wall or ceiling mounting — Optional wall or ceiling brackets support surface-mounted installation in permanent venues.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

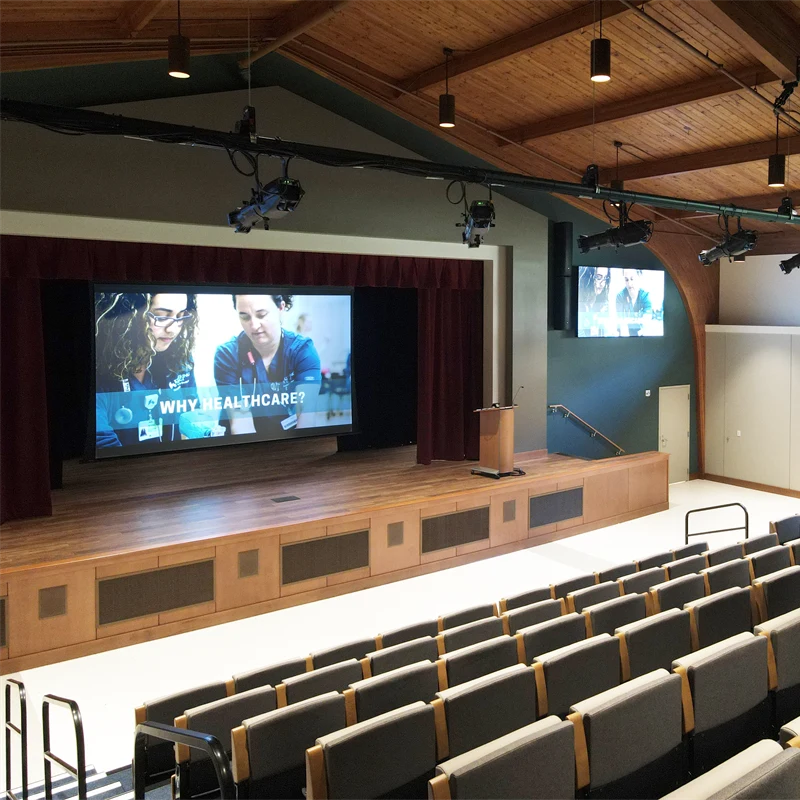

• Auditoriums requiring a large-format HDTV front-projection image
• All-hands rooms and town-hall spaces in corporate facilities
• Houses of worship using front projection in large sanctuaries
• Government spaces and large commercial meeting rooms
• Multi-purpose rooms and training rooms needing a retractable large screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Viewing surface, voltage, and exact viewable dimensions vary by configuration; confirm with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier XL a tab-tensioned screen?

Yes. The Premier XL is a Draper Series V tab-tensioned electric screen. Side tab-guide cables and a weighted bottom dowel maintain even lateral and vertical tension, holding the surface flat for consistent image geometry on large surfaces.

How is this base-configuration screen controlled?

The base Premier XL ships with Draper's standard 110-120V three-position control switch. Other Premier XL configurations add optional low-voltage (LVC-IV) or quiet motor controllers for closer integration with commercial AV control systems. Ask Creation Networks if you need a specific control option.

Which viewing surface does this SKU use?

The Premier XL is offered with a range of Draper Series V tab-tensioned surfaces, including matt white, grey high-contrast, CineFlex, and TecVision options. Confirm the exact surface configured for Part # 101800 with Creation Networks before ordering.

What is the maximum image size for this model?

The Premier XL is a large-format model with a maximum image width up to 16' (488 cm). This unit is a 184" diagonal screen in HDTV (16:9) format. Contact Creation Networks to confirm exact viewable dimensions for your room.

What projectors and mounts are compatible with the Premier XL?

It works with any commercial front projector matched to its 184" HDTV (16:9) format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Premier XL carries Draper's manufacturer warranty, including a five-year warranty against RF-welded tab separation, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
