Draper Premier XL – 182 3/8", 21:9 Ultrawide – 101820CD

Product Overview

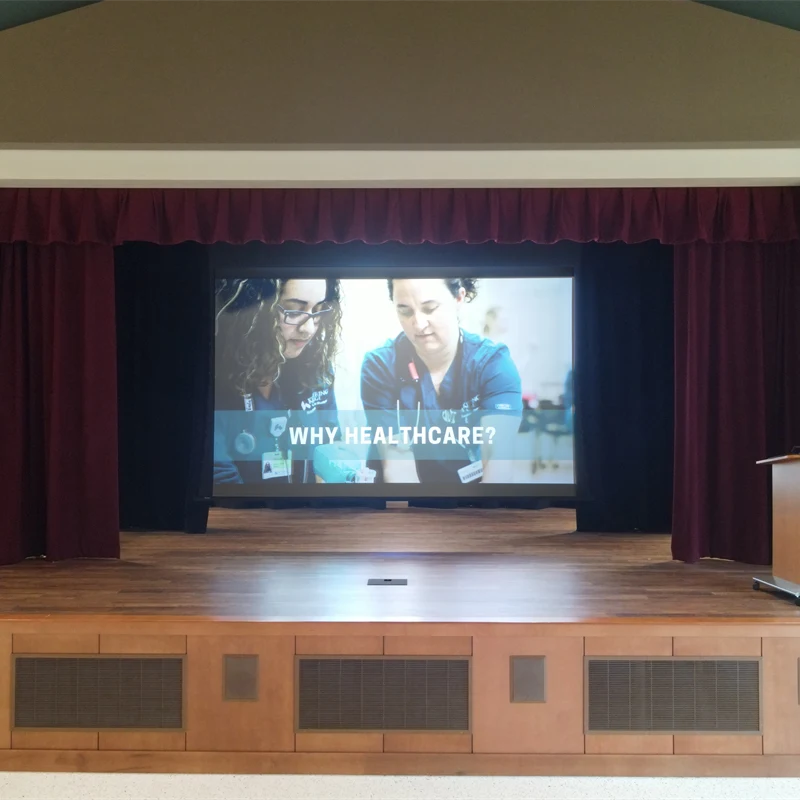

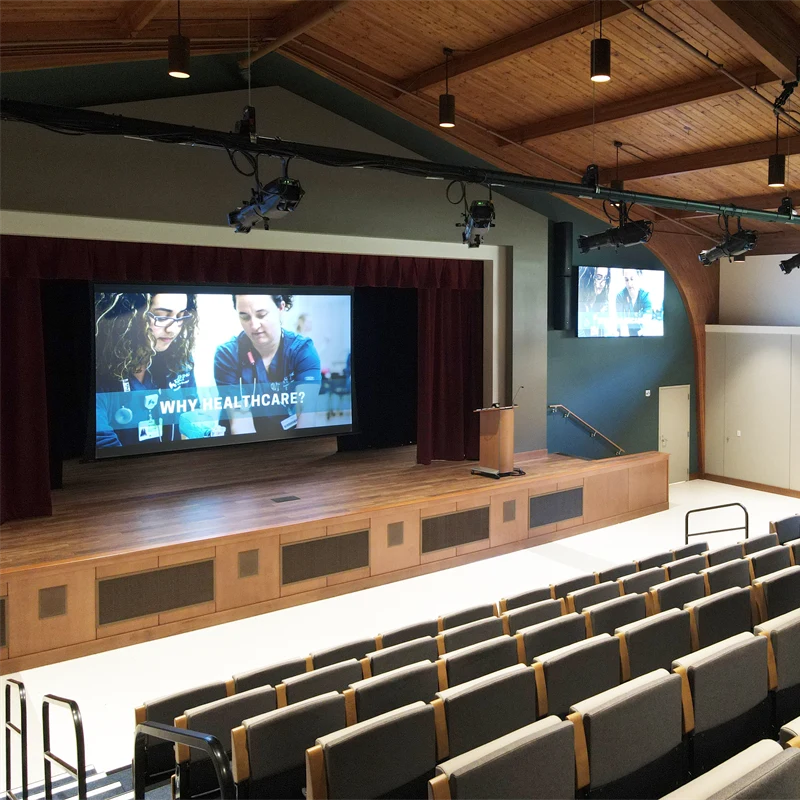

The Draper Premier XL is a wall- or ceiling-mounted, large-format tab-tensioned projection screen built for auditoriums, all-hands rooms, and large venues where standard screen sizes fall short. This 182 3/8" diagonal 21:9 Ultrawide model is configured with the CineFlex White XT700V rear-projection surface, a strong fit for broadcast sets, atriums, and worship stages that use rear projection or edge-blended imaging. As a tab-tensioned screen it uses RF-welded tabs and a side tab-guide cable system to hold a flat surface across the full width. All units ship through Creation Networks at authorized-dealer pricing with Draper's five-year warranty.

Product Description

The Draper Premier XL tab-tensioned screen is an economical large-format electric screen for integrators specifying wide-image projection in permanent installations. The fabricated extruded aluminum case measures 6-3/4" high x 6-3/4" deep with a curved front and L-shaped back/top cover in a black finish, and Draper rates the model for image widths up to 16' (488 cm). The tab-tensioned design uses RF-welded tabs, warranted against separation for five years, with a tab-guide cable on each side to maintain even lateral tension and a flat viewing surface at large sizes. This unit is configured with the CineFlex White XT700V surface, a white rear-projection material with 0.7 gain and a broad viewing cone, intended for rear projection and edge-matched or blended setups where ambient light can be reasonably controlled; it can also be used in dual or low-gain front-projection designs. The image area is fully framed in black with a standard 12" black top drop, and the screen includes a 110-120V three-position switch as standard, with optional Plug & Play low-voltage or additional control options available. This configuration is wired for 220 V, and optional wall or ceiling mounting brackets add installation flexibility. The screen is UL Listed. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Large-format tab-tensioned surface — RF-welded tabs and side tab-guide cables hold a flat viewing surface across image widths up to 16' (488 cm).
• CineFlex White XT700V rear-projection surface — A 0.7-gain white surface with a broad viewing cone for rear projection and edge-blended imaging.
• Fabricated aluminum case — A 6-3/4" x 6-3/4" extruded aluminum case with a curved front and black finish for permanent large-venue installations.
• RF-welded tabs, five-year seal warranty — The welded tabs are warranted against separation for five years for reliable long-term flatness.
• Flexible mounting — Optional wall or ceiling mounting brackets support surface installation in auditoriums and large meeting spaces.
• Standard three-position switch — Ships with a 110-120V three-position switch, with optional low-voltage Plug & Play control available.
• UL Listed — Carries UL Listing and Draper's five-year warranty, supplied by Creation Networks as an authorized dealer.

Typical Applications

• Auditoriums and large venues using rear or edge-blended projection
• Broadcast studios and production sets with rear-projection backdrops
• All-hands rooms and large commercial meeting spaces
• Houses of worship with wide-format front-of-house imaging
• Multi-purpose rooms requiring large-format projection surfaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What is the maximum image width of the Premier XL?

Draper rates the Premier XL for image widths up to 16' (488 cm). This 182 3/8" 21:9 Ultrawide model falls within that range. For sizes beyond the Premier XL's maximum, contact Creation Networks about alternate large-format models.

Is the Premier XL tab-tensioned?

Yes. The Premier XL uses a tab-tensioned surface with RF-welded tabs and a side tab-guide cable system that maintains even lateral tension for a flat image at large sizes. The welded tabs are warranted against separation for five years.

Why is this unit configured with a rear-projection surface?

This model ships with CineFlex White XT700V, a 0.7-gain white rear-projection surface with a broad viewing cone. It suits rear-projection and edge-blended installations where ambient light is reasonably controlled, and can also be used in dual or low-gain front projection.

What projectors and mounts are compatible with the Premier XL?

It works with commercial projectors matched to its 182 3/8" 21:9 format and your room's throw geometry. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the Premier XL installed and controlled?

It is a wall- or ceiling-mounted electric screen using optional mounting brackets, and ships with a 110-120V three-position switch. Optional low-voltage Plug & Play control is available for integration with AV control systems. This unit is wired for 220 V.

What warranty and support are included?

The Premier XL carries Draper's five-year warranty (USA and Canada) and is UL Listed, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
