Draper Premier XL – 182 3/8", 21:9 Ultrawide – 101820CB

Product Overview

The Draper Premier XL is a large-format tab-tensioned motorized projection screen for permanent installations that exceed standard screen sizes, such as auditoriums, all-hands rooms, and broadcast environments. This 182 3/8" model is built in a 21:9 ultrawide format and configured with the CineFlex CH1200V rear-projection surface (Part #101820CB), making it suited to rear-projection systems where the projector sits behind the screen. Series V tab-tensioning holds the large surface flat across its full width in a fabricated extruded aluminum case. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Premier XL electric projection screen extends the Premier platform to larger sizes, with a maximum image width up to 16' (488 cm). This unit is a 21:9 ultrawide rear-projection screen configured with the CineFlex CH1200V surface, a neutral-grey rear-projection diffusing material with a gain of 1.2 and a controlled viewing cone (half-gain angle 30°) that delivers high resolution and strong contrast even in well-lit rooms. Series V tab-tensioning uses a tab-guide cable system along each side to keep the surface flat, and RF-welded tabs are warranted against separation for five years. The screen is housed in a fabricated extruded aluminum case with a curved front and L-shaped back/top cover in a black finish, measuring 6-3/4" high x 6-3/4" deep (17 x 17 cm). The image area is fully framed in black with a standard 12" (30 cm) black top drop. This unit operates on 220 V and includes a 110-120V 3-position control switch as standard, with additional control options available for integration into commercial AV control systems. The 21:9 ultrawide geometry suits data walls, edge-blended presentations, and cinemascope content in large venues. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for other sizes and surfaces, or contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Large-format design — The Premier XL supports image widths up to 16' (488 cm) for auditoriums, all-hands rooms, and large venues.
• 21:9 ultrawide format — The extended aspect ratio suits cinemascope content, data walls, and edge-blended widescreen presentations.
• CineFlex CH1200V rear-projection surface — The 1.2-gain neutral-grey surface delivers high resolution and strong contrast for rear-projection systems, even in well-lit rooms.
• Series V tab-tensioning — Tab-guide cables along both edges hold the large surface flat across its full width for an even, wrinkle-free image.
• Extruded aluminum case — The fabricated aluminum case with curved front measures 6-3/4" high x 6-3/4" deep (17 x 17 cm) for permanent wall or ceiling mounting.
• RF-welded tab construction — Radio-frequency-welded tabs form a durable seal warranted against separation for five years.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full Draper manufacturer warranty coverage.

Typical Applications

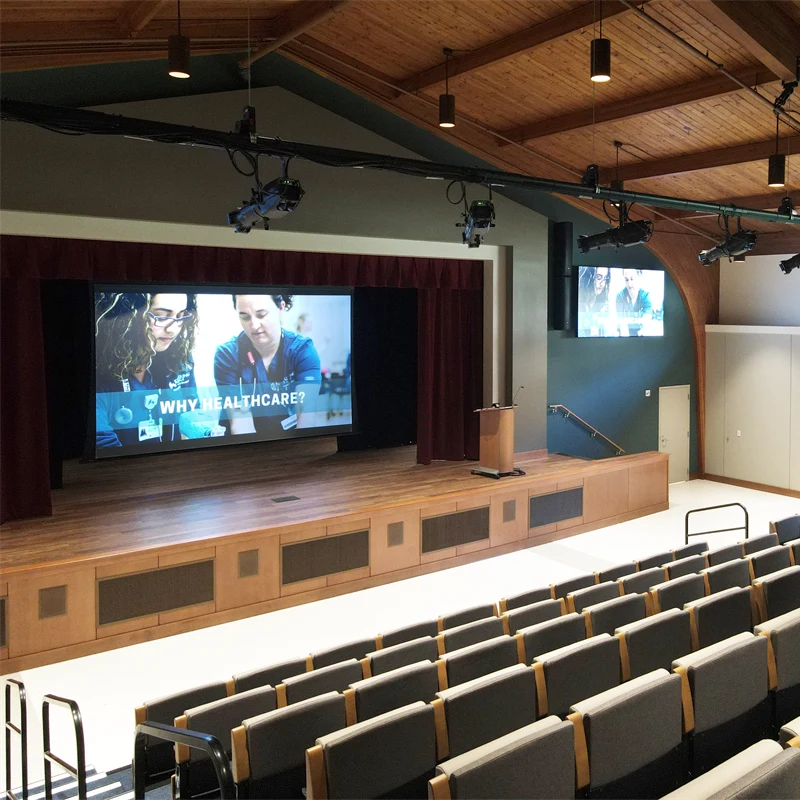

• Auditoriums and large venues using rear projection behind the screen
• Broadcast studios and production sets requiring an ultrawide rear-projection image
• All-hands rooms and large commercial meeting spaces
• Multi-purpose rooms displaying edge-blended or cinemascope content
• Command and control or exhibit spaces needing a large flat rear-projection surface

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, rear-projection throw geometry, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Premier XL a tensioned screen?

Yes. The Premier XL is a Series V tab-tensioned electric screen. Tab-guide cables run along both edges and RF-welded tabs hold the large surface flat across its full width, delivering an even, wrinkle-free image.

Is this a front- or rear-projection screen?

This unit is configured with the CineFlex CH1200V surface, which is a rear-projection diffusing material. It is intended for rear-projection systems where the projector is positioned behind the screen. Contact Creation Networks to plan the rear-projection throw geometry for your room.

How large can the Premier XL go?

The Premier XL supports image widths up to 16' (488 cm). This 182 3/8" 21:9 ultrawide model falls within that maximum. Custom sizes within the model's limits are available on request.

What surface is installed and how does it handle ambient light?

The CineFlex CH1200V is a neutral-grey rear-projection surface with a gain of 1.2 and a controlled viewing cone (half-gain angle 30°). It delivers high resolution and strong contrast, including in well-lit rooms.

How is the Premier XL mounted?

The extruded aluminum case mounts to a wall or ceiling. Optional wall- or ceiling-mounting brackets provide added installation flexibility for large-format deployments.

Can it integrate with a commercial AV control system?

Yes. A 110-120V 3-position switch is included as standard, and additional control options are available to integrate the screen with commercial AV control systems. Contact Creation Networks for control configuration.

What warranty and support are included?

The Premier XL carries Draper's 5-year warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
