Draper Premier XL – 165", Widescreen – 101804CDU

Product Overview

The Draper Premier XL is a large-format, tab-tensioned motorized projection screen configured here in 16:10 widescreen with a CineFlex rear-projection surface. This 165" diagonal model pairs the CineFlex White XT700V surface with a factory LVC-IV low-voltage controller, making it a practical widescreen motorized projection screen for auditoriums, all-hands rooms, and large commercial meeting spaces. As a large-format tab-tensioned electric screen, it maintains a flat, wrinkle-free surface across its full width. All units ship through Creation Networks at authorized-dealer pricing with Draper's manufacturer warranty.

Product Description

The Draper Premier XL 165" projection screen (Part # 101804CDU) is an electric, ceiling- or wall-mounted screen built for integrators specifying a 16:10 widescreen projection screen with a CineFlex rear-projection surface. The tab-tensioning system uses side tab-guide cables and a weighted bottom dowel to hold the surface flat, which is critical for image geometry across wide surfaces, and the RF-welded tabs are warranted against separation for five years. The CineFlex White XT700V surface is a white rear-projection surface with a broad viewing cone and high resolution, suited to edge matching, blending, and short-throw rear projection where ambient light can be reasonably controlled; it carries a rear-projection gain of 0.7 and a front-projection gain of 0.5, and can also be used in dual or low-gain front-projection setups. This unit is supplied with the LVC-IV low-voltage controller for integration with commercial AV control and building-automation systems. The fabricated extruded aluminum case has a curved front and black finish and measures 6-3/4" high by 6-3/4" deep for a compact profile above the image, with a standard 12" black top drop and optional wall or ceiling mounting brackets. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• 16:10 widescreen format — A 16:10 image area suited to data presentation, computer-driven content, and mixed AV in commercial rooms.
• CineFlex White XT700V rear-projection surface — A white rear-projection surface with a broad viewing cone and high resolution for edge matching, blending, and short-throw rear projection.
• Tab-tensioned viewing surface — Side tab-guide cables and a weighted bottom dowel keep the surface flat for consistent image geometry across the full width.
• Factory LVC-IV low-voltage controller — Provides a low-voltage control interface for integration with commercial AV control and automation systems.
• Large-format sizing — Supports large commercial image sizes up to a 16' (488 cm) maximum image width for large venues.
• Extruded aluminum case — A fabricated aluminum case with curved front and black finish measures 6-3/4" high by 6-3/4" deep for a compact profile.
• RF-welded tabs — Radio-frequency welded tabs form a durable seal and are warranted against separation for five years.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

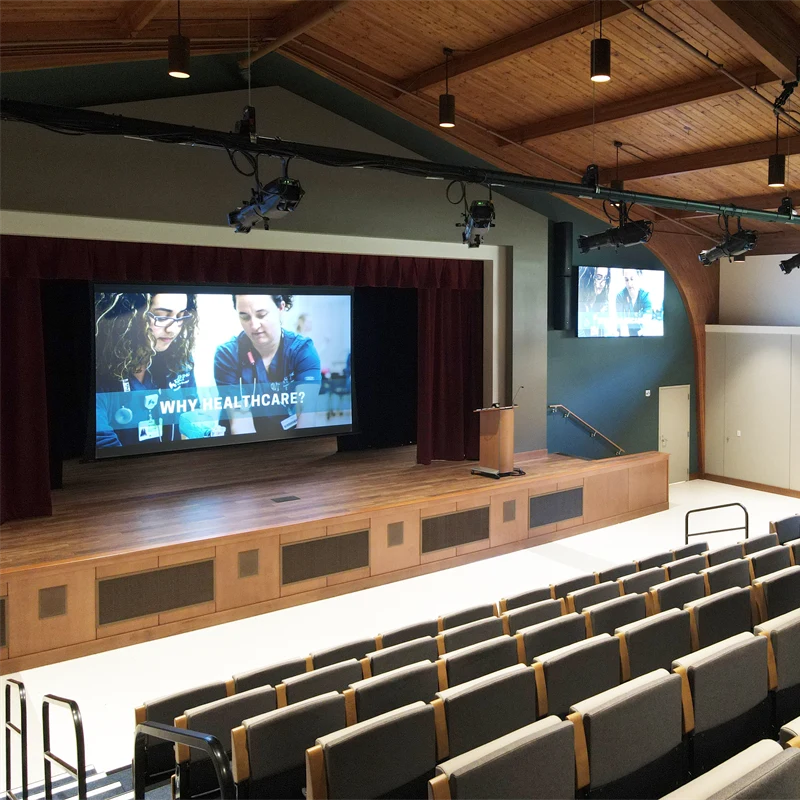

• Auditoriums using rear projection where the projector is concealed behind the screen
• All-hands rooms and large commercial meeting spaces
• Houses of worship using front or rear projection
• Government spaces and multi-purpose rooms
• Training rooms needing a retractable widescreen surface

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, voltage, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the CineFlex White XT700V a rear-projection surface?

Yes. CineFlex White XT700V is primarily a white rear-projection surface with a broad viewing cone, well suited to edge matching, blending, and short-throw rear projection where ambient light is controlled. It has a rear-projection gain of 0.7 and a front-projection gain of 0.5, and can also be used in dual or low-gain front-projection applications.

Is the Draper Premier XL a tab-tensioned screen?

Yes. The Premier XL is a Draper Series V tab-tensioned electric screen. Side tab-guide cables and a weighted bottom dowel maintain even tension, holding the surface flat for consistent image geometry.

What is the maximum image size for this model?

The Premier XL is a large-format model with a maximum image width up to 16' (488 cm). This unit is a 165" diagonal screen in 16:10 widescreen format. Contact Creation Networks to confirm exact viewable dimensions for your room.

What does the LVC-IV controller connect to?

This unit ships with the LVC-IV low-voltage controller, which provides a low-voltage control interface for integration with commercial AV control and building-automation systems. Ask Creation Networks about wiring and interface options for your control platform.

What projectors and mounts are compatible with the Premier XL?

It works with any commercial projector matched to its 165" 16:10 widescreen format and your room's throw distance and projection method. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Premier XL carries Draper's manufacturer warranty, including a five-year warranty against RF-welded tab separation, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
