Draper Premier, 92", HDTV, CineFlex CH1200V, 110 V - 101059CB
Product Overview

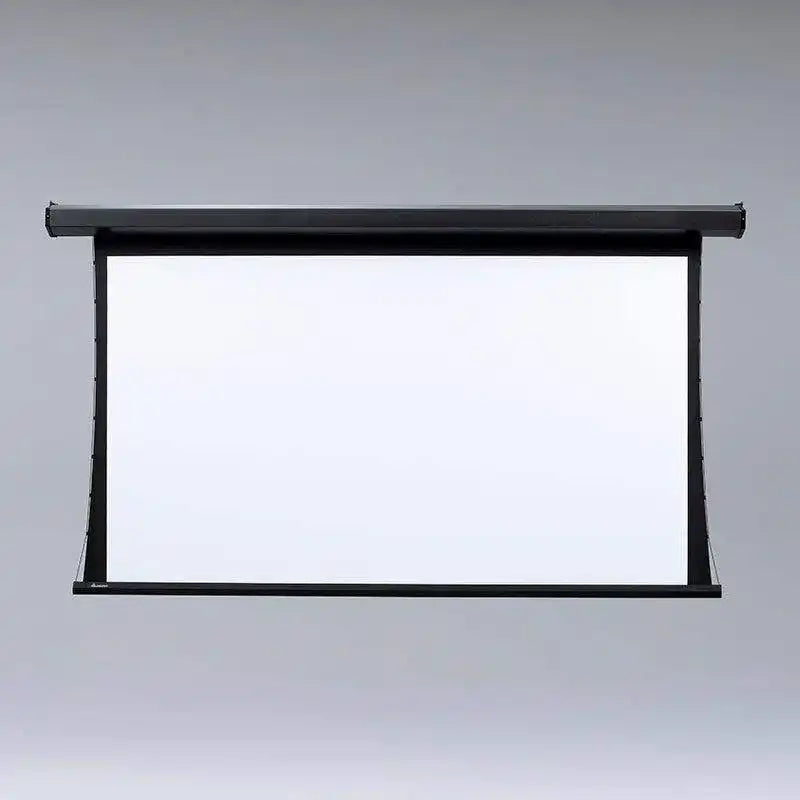

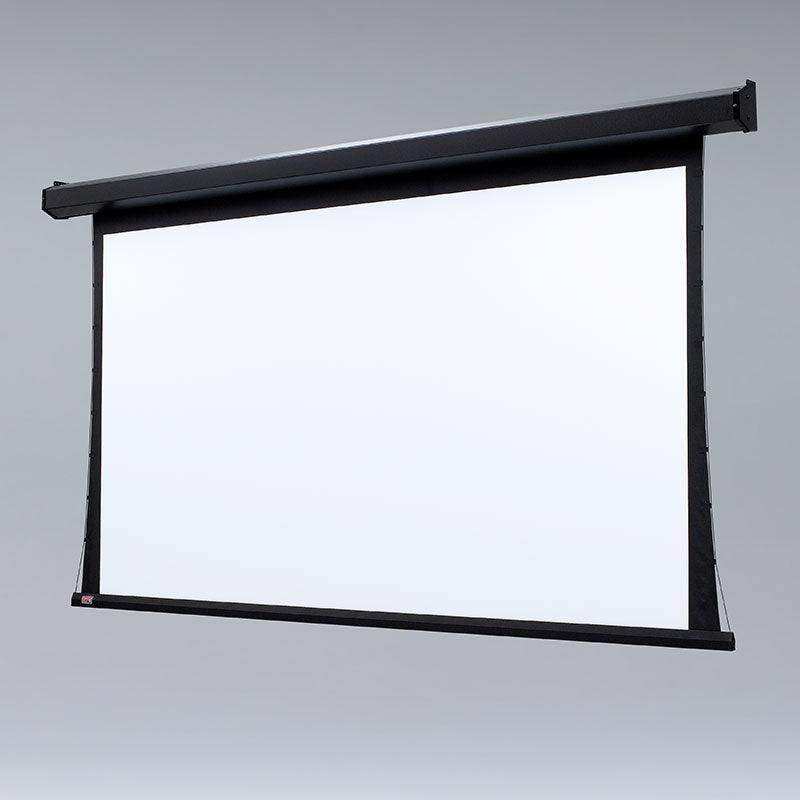

The Draper Premier with CineFlex CH1200V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring high image contrast in a fully controlled lighting environment. The CineFlex CH1200V delivers a 1.2 gain—reflecting more light back toward the audience than a standard white surface—making it the surface of choice for dedicated projection rooms, home theaters, and auditoriums where ambient light can be fully eliminated. The Premier housing's lower profile makes it suitable for installations with limited above-ceiling plenum depth.
Product Description
The CineFlex CH1200V surface is Draper's highest-gain standard surface offering at 1.2, engineered to maximize projected light output in rooms where ambient light is fully controlled. By reflecting more light toward the viewer, this surface allows lower-lumen projectors to achieve brighter images—or allows higher-lumen projectors to create more impactful images. It is particularly well matched to dedicated screening rooms, high-end home theaters, and executive briefing centers where blackout conditions can be maintained.

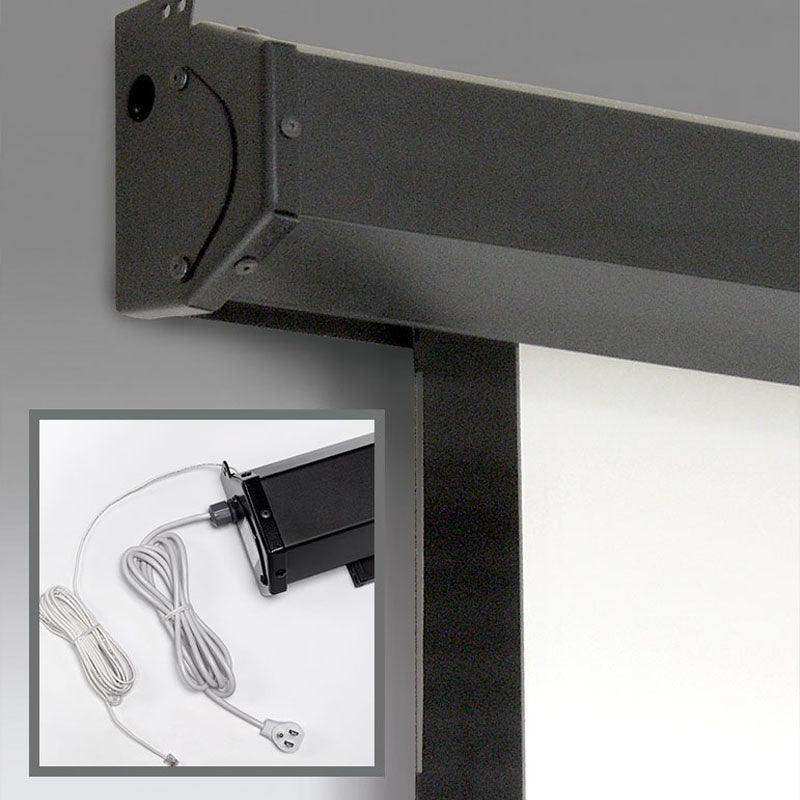

The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction. The screen assembly snaps into preset latching brackets when the space is ready for AV commissioning. The RF-welded tab-tensioning system maintains a flat image plane, with tabs warranted for five years against separation.
Key Features
- CineFlex CH1200V Viewing Surface (1.2 Gain) — High-gain surface for controlled lighting environments; maximizes projected brightness.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Lower-Profile Housing — Compact case suitable for installations with limited above-ceiling plenum depth.
- RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Dedicated projection room
- High-end home theater
- Executive briefing center
- Screening room or preview theater
- Simulation lab
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | CineFlex CH1200V |
| Surface Gain | 1.2 |
| Available Formats | HDTV 16:9, 16:10 (WUXGA), NTSC 4:3, 21:9 Ultrawide |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (CBQ) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
When is the CineFlex CH1200V the right surface choice?
When the room has full lighting control. The 1.2 gain surface reflects more light toward the viewer, enabling higher perceived brightness and contrast in fully controlled environments.
How does the Premier differ from the Access V?
The Premier features a lower-profile housing suitable for installations with limited above-ceiling plenum depth.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
