Draper Premier, 15', NTSC, Grey XH600V, 110 V, with LVC-IV Low Voltage Controller - 101373U
Draper Premier, 15', NTSC, Grey XH600V, 110 V, with LVC-IV Low Voltage Controller - 101373U is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Premier, 15', NTSC, Grey XH600V, 110 V, with LVC-IV Low ...
Product Overview

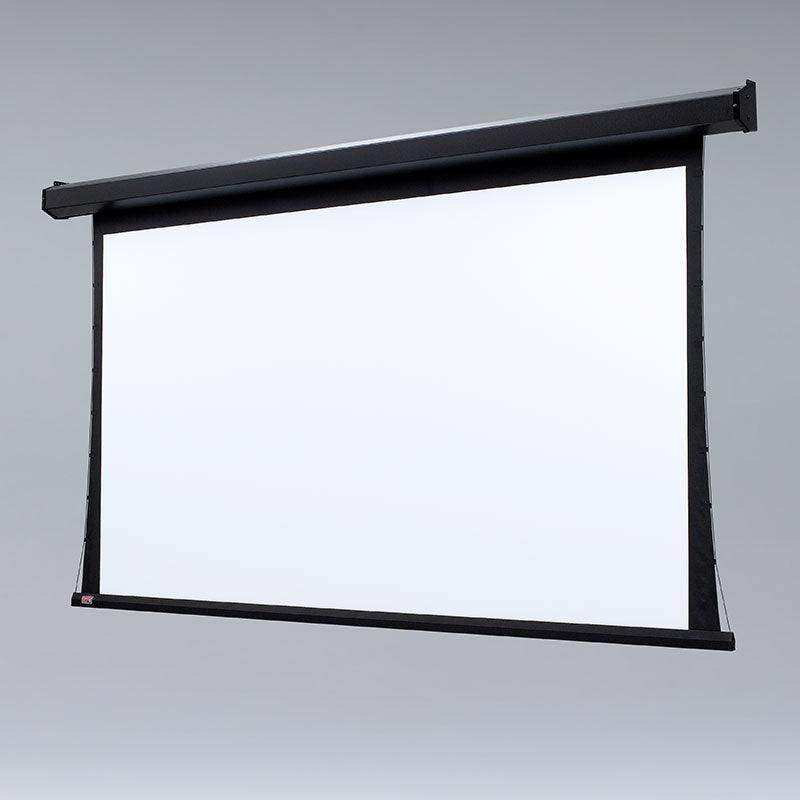

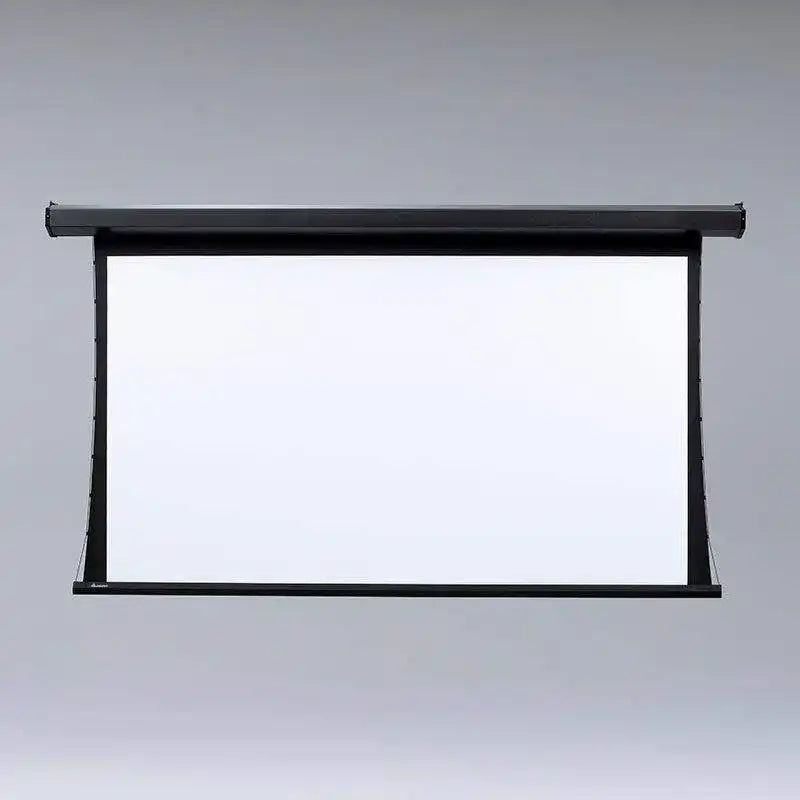

The Draper Premier with Grey XH600V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring ambient light rejection in a lower-profile ceiling housing. The Grey XH600V surface delivers a 0.6 gain with ambient light rejection properties, making it the preferred choice for conference rooms, boardrooms, and classrooms where ambient light cannot be fully controlled. The Premier housing's lower profile makes it suitable for installations with limited plenum depth. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.
Product Description
The Grey XH600V surface uses a grey formulation to increase perceived contrast in rooms with moderate ambient light. With a 0.6 gain, the surface absorbs more ambient light than a standard white surface while reflecting projected content with enhanced contrast—making images crisper in boardrooms, conference rooms, and classrooms with windows or uncontrolled lighting.
The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction before ceilings are closed. The screen assembly snaps into preset latching brackets when the space is ready for AV commissioning. The RF-welded tab-tensioning system maintains a flat image plane, with tabs warranted for five years against separation.
Key Features
- Grey XH600V Viewing Surface (0.6 Gain) — Ambient light rejection grey surface; enhances projected image contrast in rooms with uncontrolled lighting.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Lower-Profile Housing — Compact case suitable for installations with limited above-ceiling plenum depth.
- RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Conference room with windows or ambient light
- Boardroom
- Classroom or training room
- Executive presentation space
- Hybrid meeting room
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | Grey XH600V |
| Surface Gain | 0.6 |
| Available Formats | HDTV 16:9, 16:10 (WUXGA), NTSC 4:3, 21:9 Ultrawide |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (Q) | LVC-IV (U) | QM + LVC-IV (QU) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
When is the Grey XH600V the right surface choice?
When ambient light in the room cannot be fully controlled. The grey formulation increases perceived contrast over a standard white surface.
Can the LVC-IV integrate with Crestron or Extron?
Yes. Specify at time of order.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
