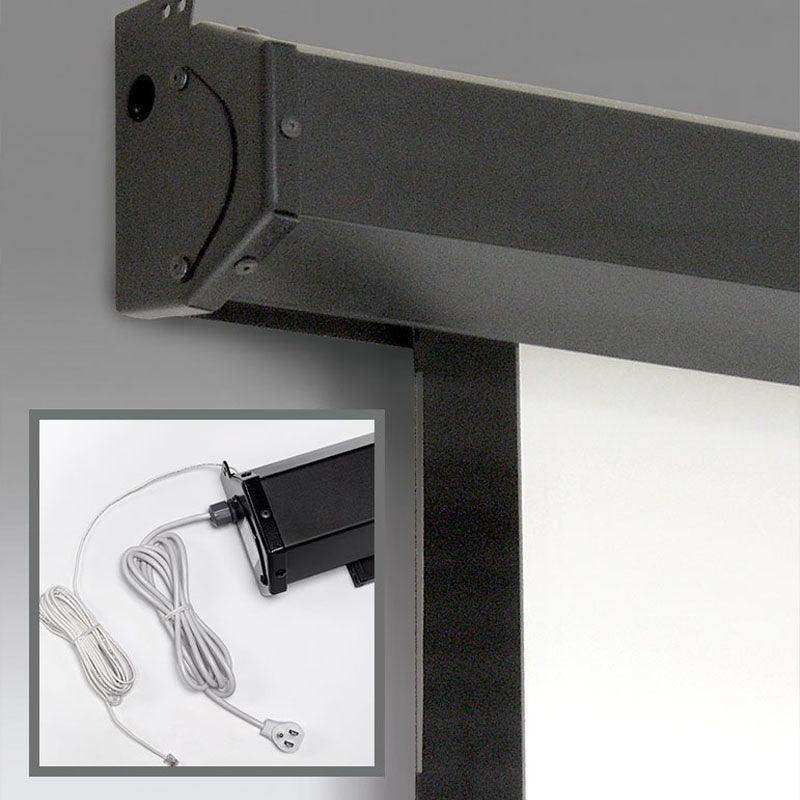

Draper Premier, 137", 16:10, Matt White XT1000VB, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller - 101641QU
Draper Premier, 137", 16:10, Matt White XT1000VB, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller - 101641QU is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Premier, 137", 16:10, Matt White XT1000VB, 110 V, with ...
Product Overview

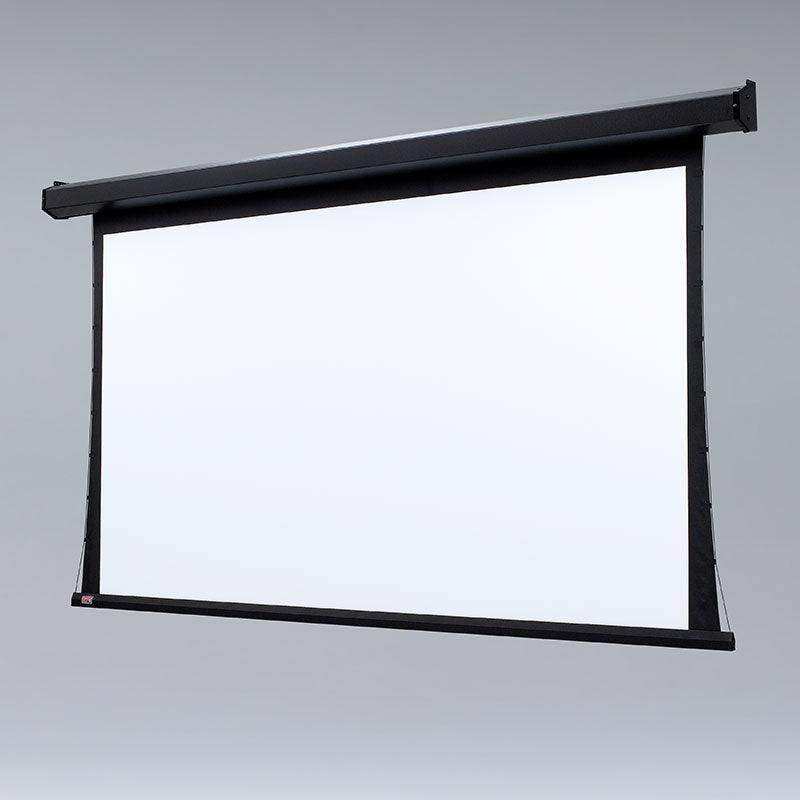

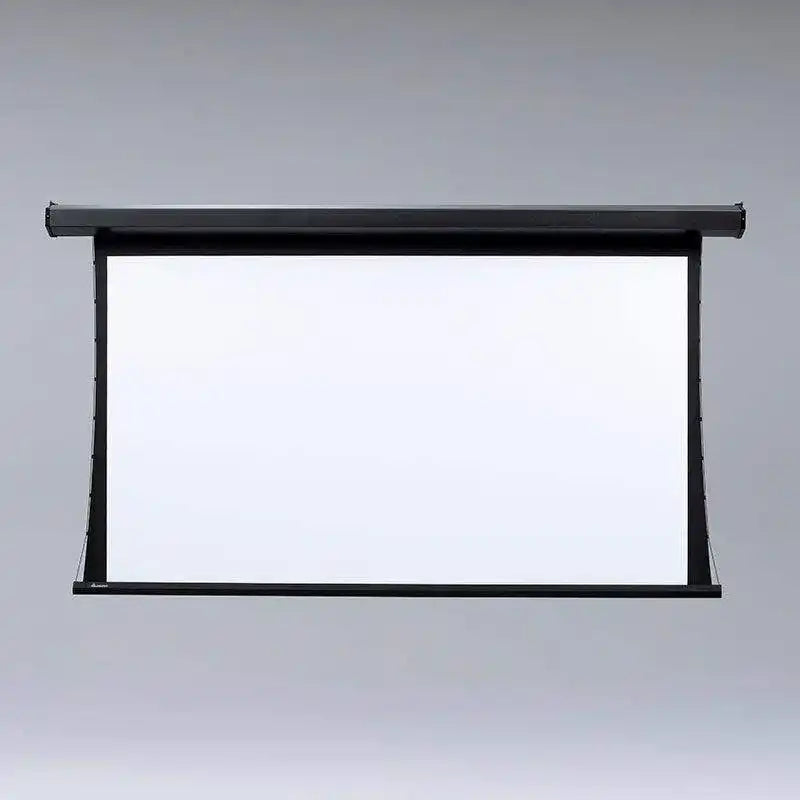

The Draper Premier with Matt White XT1000VB surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring full ceiling concealment in a lower-profile housing. The Matt White XT1000VB is Draper's standard reference white surface with a 1.0 gain—delivering accurate, neutral brightness across a wide viewing angle—making it the most broadly applicable surface in the Premier lineup. The 16:10 format is optimized for WUXGA (1920×1200) resolution projectors and laptop-native content, making it well suited for boardrooms, conference rooms, and education environments that pair the screen with WUXGA projectors for minimal edge cropping.
Product Description
The Matt White XT1000VB surface delivers a 1.0 gain with wide-angle, spectrally neutral reflectivity—the default choice for commercial AV installers specifying a Premier without a specialized ambient light, contrast, or acoustic transparency requirement. The surface works with a broad range of commercial projectors across throw distances and lumen ratings typical in corporate environments.
The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction. The screen assembly snaps into preset latching brackets when the space is ready for AV commissioning. The RF-welded tab-tensioning system maintains a flat image plane, with tabs warranted for five years against separation.
Key Features
- Matt White XT1000VB Viewing Surface (1.0 Gain) — Standard reference white; spectrally neutral with wide-angle reflectivity.
- 16:10 Format (WUXGA) — Native match for 1920×1200 projectors; minimizes cropping with laptop-native content.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Lower-Profile Housing — Compact case suitable for installations with limited above-ceiling plenum depth.
- RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Boardroom with WUXGA projector
- Conference room
- Training room or education environment
- Multipurpose room
- Government or military presentation space
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | Matt White XT1000VB |
| Surface Gain | 1.0 |
| Format | 16:10 (WUXGA) |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (Q) | LVC-IV (U) | QM + LVC-IV (QU) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
Why choose 16:10 over 16:9?
16:10 (WUXGA) matches the native resolution of many commercial projectors and laptops, eliminating letterboxing and maximizing the usable screen area for presentations and data content.
How does the Premier differ from the Access V?
The Premier features a lower-profile housing suitable for installations with limited above-ceiling plenum depth.
Can the LVC-IV controller integrate with Crestron or Extron?
Yes. Specify at time of order.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
