Draper Premier, 133", HDTV, CineFlex White XT700V, 110 V, with Quiet Motor - 101185CDQ
Draper Premier, 133", HDTV, CineFlex White XT700V, 110 V, with Quiet Motor - 101185CDQ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Premier, 133", HDTV, CineFlex White XT700V, 110 V, with...
Product Overview

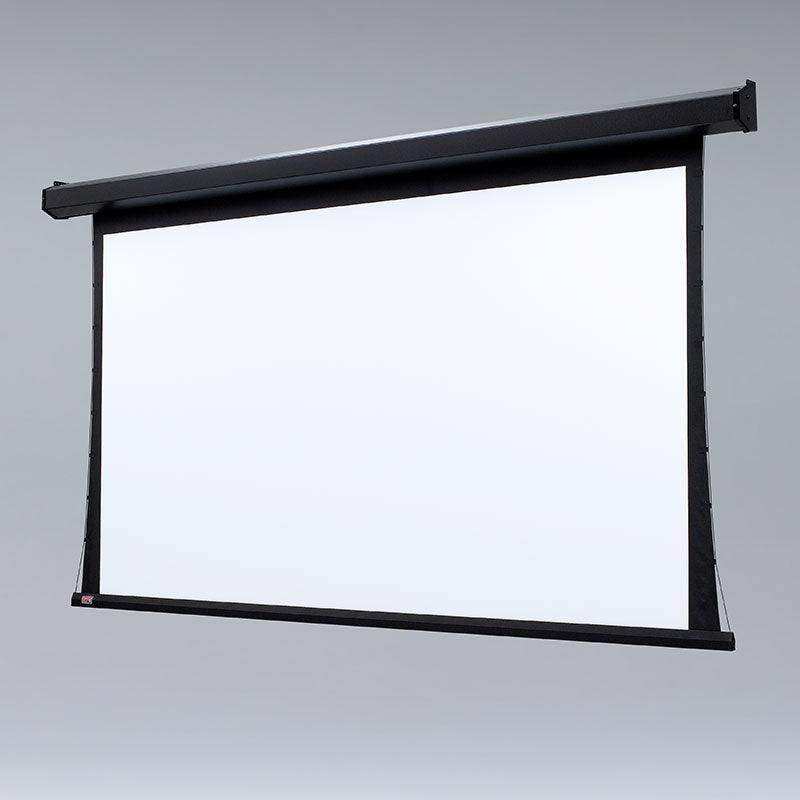

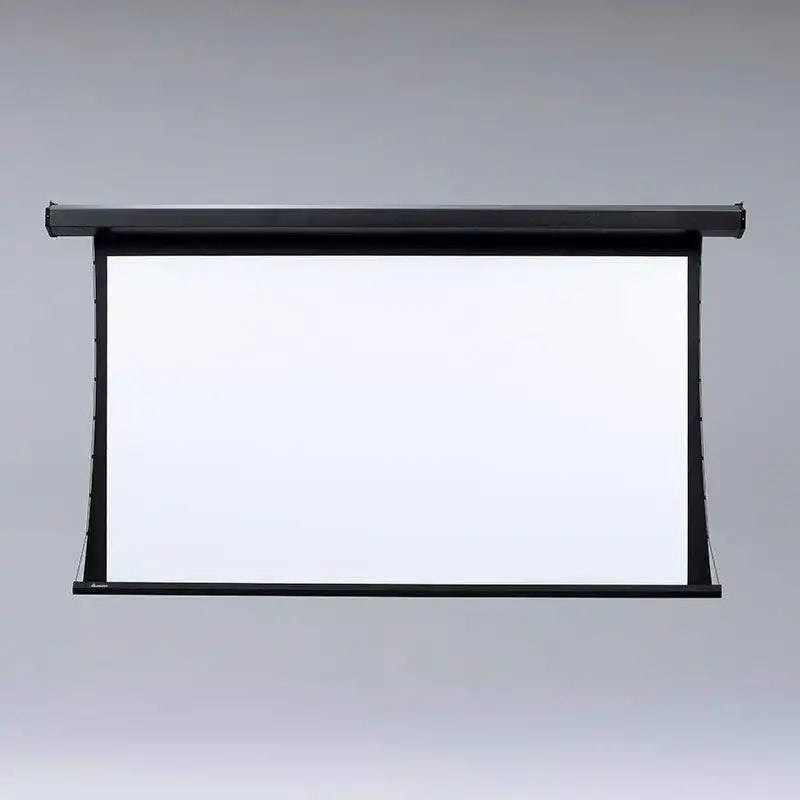

The Draper Premier with CineFlex White XT700V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring uniform image brightness across a wide viewing angle in a lower-profile housing. The CineFlex White XT700V delivers a 0.7 gain with superior off-axis reflectivity, making it the surface of choice for large rooms, tiered seating, and wide conference rooms where audience members are seated at oblique viewing angles to the screen. The Premier housing's lower profile makes it suitable for installations with limited above-ceiling plenum depth.
Product Description
The CineFlex White XT700V surface is engineered to maintain brightness uniformity at wide seating angles. Unlike standard gain surfaces that lose brightness toward the edges, XT700V delivers consistent light output across the full seating area—eliminating the hot-spot effect and making it the preferred choice for wide rooms with audience members seated well off the screen's center axis.
The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction. The screen assembly snaps into preset latching brackets when the space is ready for AV commissioning. The RF-welded tab-tensioning system maintains a flat image plane, with tabs warranted for five years against separation.
Key Features
- CineFlex White XT700V Viewing Surface (0.7 Gain) — Superior off-axis reflectivity; uniform brightness across wide seating areas.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Lower-Profile Housing — Compact case suitable for installations with limited above-ceiling plenum depth.
- RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Wide conference room or boardroom
- Tiered seating lecture hall or auditorium
- Training room with wide seating arrangement
- House of worship with wide sanctuary
- Large multipurpose space
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | CineFlex White XT700V |
| Surface Gain | 0.7 |
| Available Formats | HDTV 16:9, 16:10 (WUXGA), NTSC 4:3, 21:9 Ultrawide |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (CDQ) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
When is the CineFlex White XT700V the right surface choice?
When audience members are seated at wide angles to the screen. The XT700V maintains brightness uniformity across the full seating area, whereas standard gain surfaces lose brightness at oblique angles.
How does the Premier differ from the Access V?
The Premier features a lower-profile housing suitable for installations with limited above-ceiling plenum depth.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
