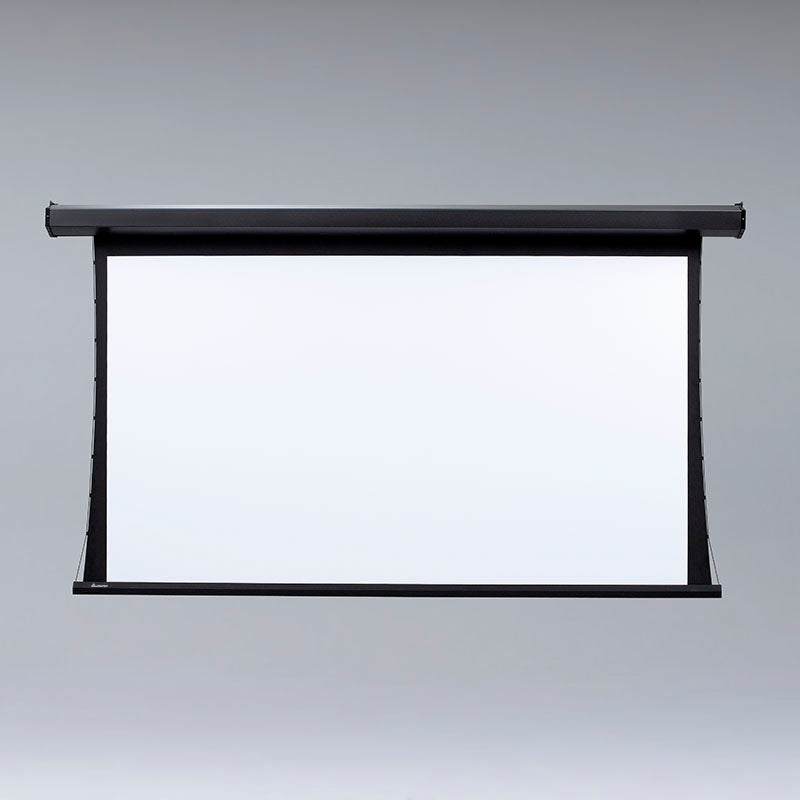

Draper Premier – 133", HDTV – 101235

Product Overview

The Draper Premier is a tab-tensioned, motorized electric projection screen for permanent commercial AV installations, and this 133" model is built in the HDTV (16:9) format for widescreen video, laptops, and modern presentation sources. As a 133 inch motorized projection screen, it drops from a wall- or ceiling-mounted steel case and holds a flat, wrinkle-free image through Draper's tab-tensioning system. It is well suited to conference rooms, boardrooms, and training rooms that need a large 16:9 image and a clean retracted appearance. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Premier tab-tensioned electric projection screen is engineered for integrators specifying a dependable motorized screen with a consistently flat viewing surface. This unit is configured in the 133" HDTV (16:9) format and is available in Draper's range of viewing surfaces, including Matt White XT1000VB, Grey XH600V, CineFlex, and TecVision options, so the surface can be matched to projector output and room lighting. The screen retracts into a pentagonal steel case with a black plastisol finish (white is optional) and matching endcaps with universal mounting brackets, so it can be surface-mounted to a wall or ceiling. Tab-tensioning with RF-welded tabs keeps the surface taut across its full width, and the RF-welded tabs are warranted against separation and stickiness. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area, and an optional white aluminum ceiling trim kit is available for recessed installation. As a commercial motorized projection screen, the Premier ships standard with a 110-120V three-position control switch and supports additional control options for integration into a larger AV system. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the deployment. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens collection. Contact Creation Networks at creationnetworks.net for surface selection, throw-distance planning, and lead times.

Key Features

• 133" HDTV (16:9) format — The widescreen 16:9 diagonal matches modern laptops, video, and unified-communications sources in commercial rooms.
• Tab-tensioned viewing surface — Side tab-tensioning holds the surface flat and wrinkle-free across the full width for accurate, distortion-free projected images.
• RF-welded tabs — The tabs are radio-frequency welded to create a durable seal that resists separation and stickiness over the life of the screen.
• Multiple surface options — Offered in Matt White XT1000VB, Grey XH600V, CineFlex, and TecVision surfaces to match projector brightness and ambient light.
• Pentagonal steel case — The screen retracts into a black plastisol-finished steel case (white optional) with matching endcaps and universal mounting brackets for wall or ceiling installation.
• Black masking border — The image area is fully framed in black with a standard 12" (30 cm) top drop to position the image and hide the roller.
• AV control ready — A 110-120V three-position switch is standard, with additional low-voltage control options available for integration with commercial AV systems.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with Draper's standard 5-year limited warranty and UL-listed construction.

Typical Applications

• Conference rooms and commercial meeting spaces with widescreen front projection
• Corporate boardrooms presenting 16:9 video and unified-communications content
• Training rooms and multi-purpose rooms requiring a retractable screen
• Houses of worship using motorized front-projection screens
• Government and briefing spaces needing a clean, concealed screen when retracted

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Surface, voltage, and weight vary by configuration—confirm exact viewable dimensions and options with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier a tab-tensioned screen?

Yes. The Premier uses Draper's tab-tensioning system with RF-welded tabs to hold the viewing surface flat and wrinkle-free across its full width, which is important for maintaining a distortion-free image on a large motorized screen.

Which viewing surface should I choose for a 16:9 room?

The Premier is offered in several surfaces. Matt White XT1000VB is a neutral general-purpose choice, Grey XH600V improves perceived contrast in rooms with ambient light, and TecVision options address high-gain or ambient-light-rejecting needs. Contact us and we can recommend a surface for your projector and room.

What projectors and mounts are compatible with the Premier?

The Premier works with any commercial front projector matched to its 133" 16:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the Premier installed?

It is a surface-mounted motorized screen. The steel case ships with matching endcaps and universal mounting brackets for wall or ceiling installation, and an optional white aluminum ceiling trim kit is available for recessed applications.

Can this screen be integrated with an AV control system?

Yes. The Premier ships standard with a 110-120V three-position control switch, and Draper offers additional low-voltage control options for integration with commercial AV control systems.

What warranty and support are included?

The Premier carries Draper's standard 5-year limited warranty and is UL Listed, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
