Draper Premier, 126", 21:9 Ultrawide, Grey XH600V, 110 V - 101815FB
Draper Premier, 126", 21:9 Ultrawide, Grey XH600V, 110 V - 101815FB is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Premier, 126", 21:9 Ultrawide, Grey XH600V, 110 V - 101...
Product Overview

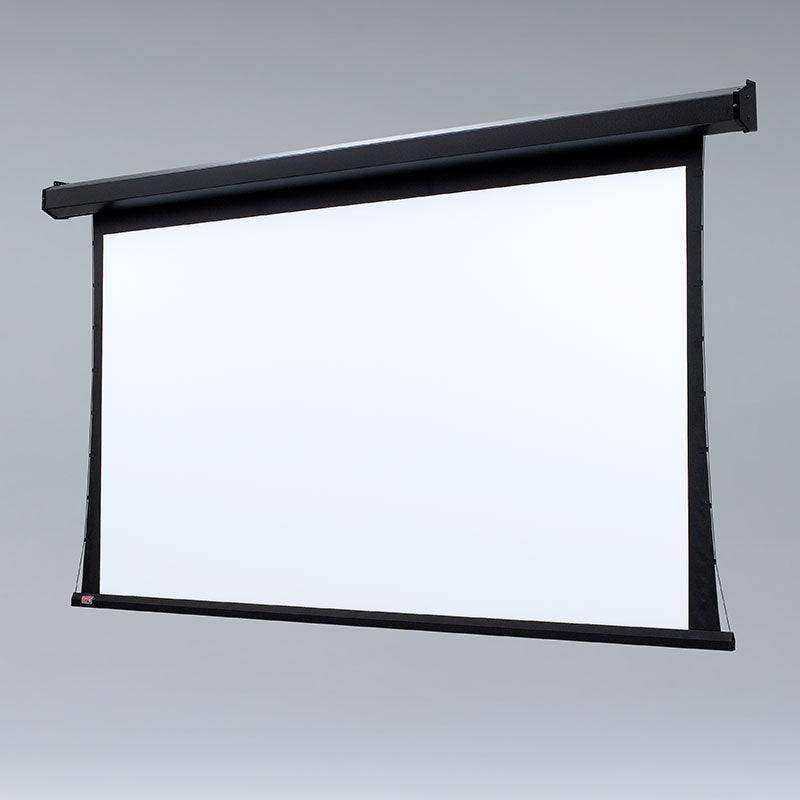

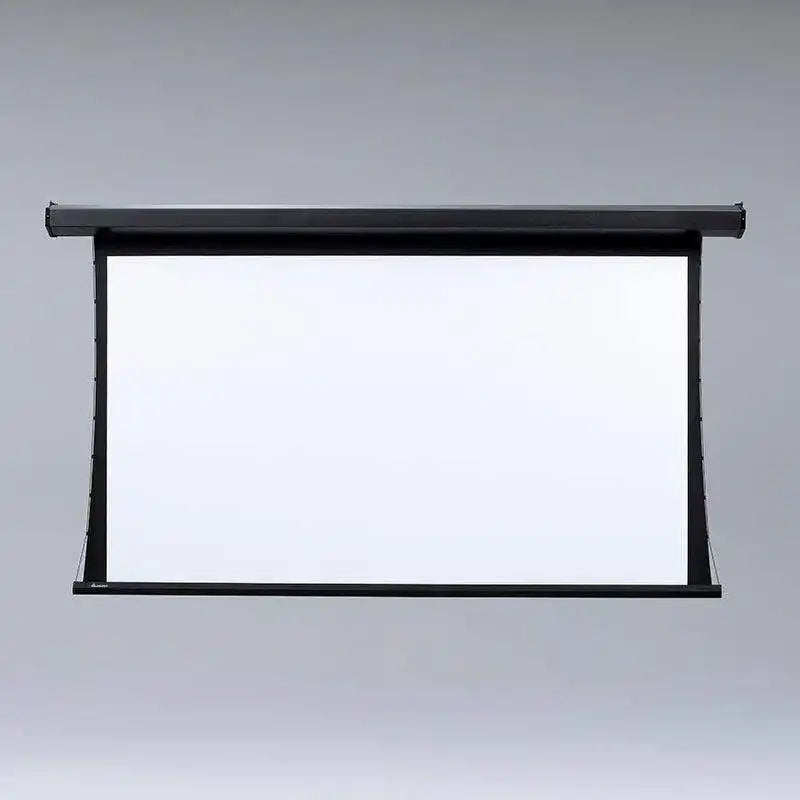

The Draper Premier 21:9 Ultrawide with Grey XH600V surface is a motorized, ceiling-recessed tab-tensioned projection screen engineered for 21:9 cinematic and ultrawide presentations. The Grey XH600V 0.6 gain surface delivers ambient light rejection, making it ideal for large conference rooms, boardrooms, and presentation spaces that show cinematic or ultrawide content in environments with uncontrolled ambient light. The Premier housing's lower profile makes it well suited for installations with limited plenum depth above the ceiling.
Product Description
The 21:9 format is natively matched to ultrawide cinema lenses and content production formats including 2.35:1 and 2.40:1, making it the correct choice for high-end home theaters, executive screening rooms, and auditoriums projecting scope-format content without black bars. In commercial settings, 21:9 screens support conference room displays that span wide presentation areas without the blank black bars of a 16:9 format.
The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in. The RF-welded tab-tensioning system maintains a flat image plane, with tabs warranted for five years against separation.
Key Features
- Grey XH600V Viewing Surface (0.6 Gain) — Ambient light rejection for enhanced contrast in rooms with uncontrolled lighting.
- 21:9 Ultrawide Format — Native 2.35:1 / 2.40:1 aspect ratio for cinematic scope content; no black bars.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Lower-Profile Housing — Compact case for installations with limited above-ceiling plenum depth.
- RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- QM + LVC-IV Option — Quiet motor with dry-contact low voltage controller for Crestron/Extron/AMX/Control4 integration.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Executive screening room
- Home theater (scope format)
- Large conference room
- Auditorium or lecture hall
- Cinema simulation lab
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | Grey XH600V |
| Surface Gain | 0.6 |
| Format | 21:9 Ultrawide (approx. 2.35:1) |
| Available Sizes | 104.25", 126", 152" |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | QM + LVC-IV (QU) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
What is 21:9 Ultrawide format used for?
It matches scope cinema formats (2.35:1, 2.40:1) natively, eliminating black bars when projecting cinematic content. It's also used for ultrawide conference room presentations.
Why choose Grey XH600V for a large ultrawide screen?
Larger screens in conference rooms and auditoriums often have ambient light that can wash out a standard white surface. The 0.6 gain grey formulation maintains contrast without requiring full blackout.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
