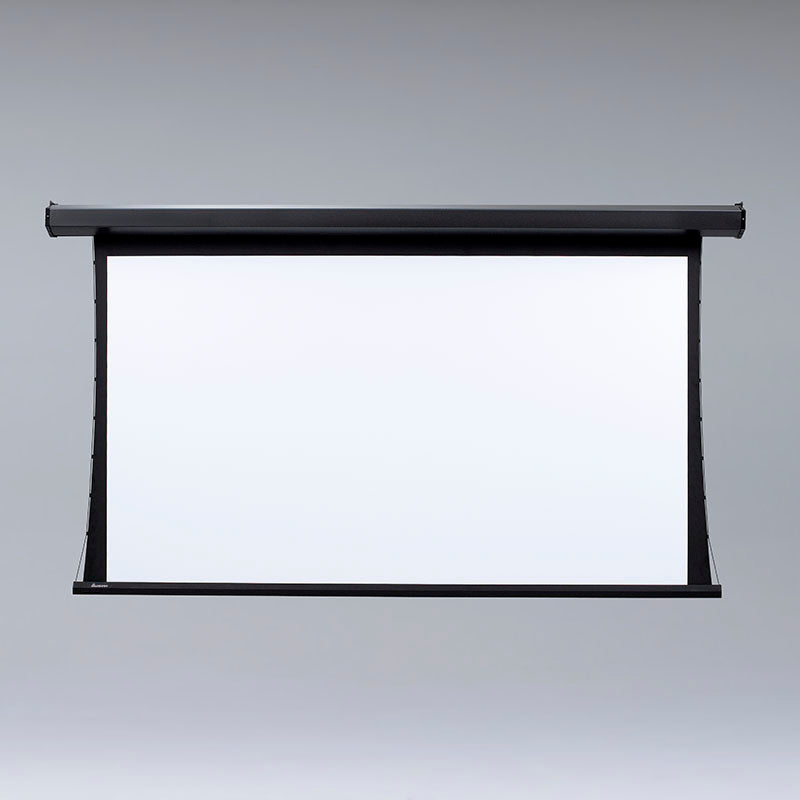

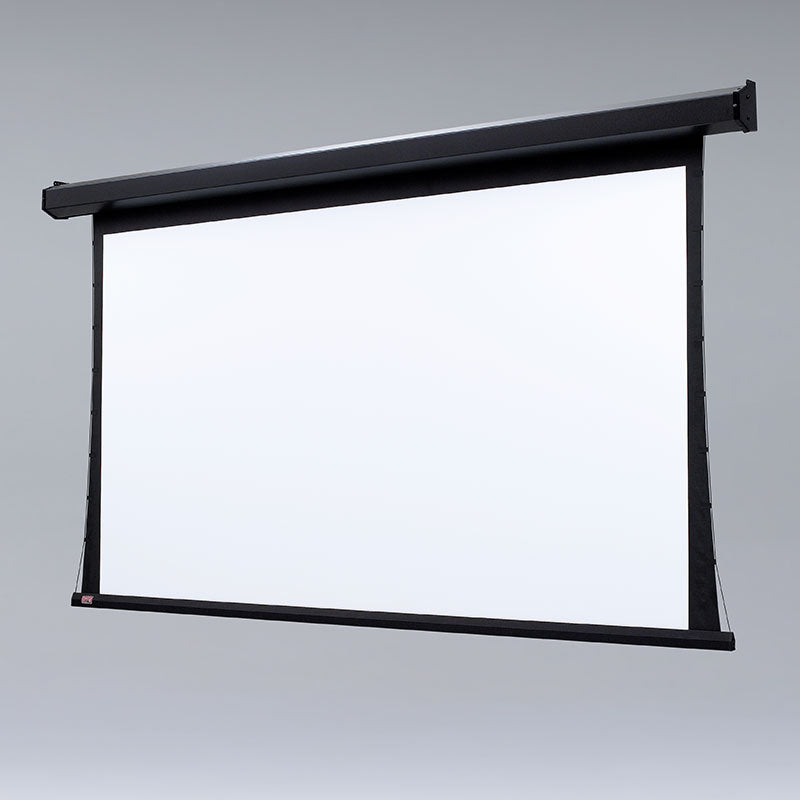

Draper Premier – 126", 21:9 Ultrawide – 101815SCU

Product Overview

The Draper Premier is a tab-tensioned, electric 21:9 ultrawide motorized projection screen built for permanent commercial AV installations in conference rooms, boardrooms, and training spaces. This 126" diagonal ultrawide model uses Draper's RF-welded tab-tensioning to hold a perfectly flat viewing surface, and it ships configured with the LVC-IV low voltage controller for integration with commercial control systems. As a ceiling- or wall-mounted 126-inch motorized projection screen, it supports image widths up to 12' and installs cleanly in finished commercial interiors. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Premier tab-tensioned electric screen is engineered for integrators who need a dependable, low-noise motorized screen with a wrinkle-free image in a permanent installation. The viewing surface is held flat by Draper's factory-set tab-tensioning system, with RF-welded tabs that provide a durable seal and resist separation over the life of the screen. The screen rolls into a sleek pentagonal 22-gauge steel case finished in black plastisol, measuring 5-7/8" high by 5-1/4" deep, with matching endcaps that form universal wall- or ceiling-mounting brackets. A standard 12" black drop at the top of the viewing area sets the image at the correct height for most rooms, and the image area is fully framed in black to improve perceived contrast. This unit is configured with Draper's LVC-IV low voltage controller, giving integrators a clean interface to Crestron, AMX, Extron, and similar commercial AV control systems for automated screen operation. The UL-listed, instantly reversible motor operates at a low 44 dB, which suits conference rooms and boardrooms where acoustic noise during screen deployment is a concern. This makes the Premier a practical choice for corporate meeting spaces, training rooms, and multi-purpose rooms that need a full-size front-projection surface on demand. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and formats, or the broader projection screens collection. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — Draper's factory-set tensioning system holds the surface flat for a wrinkle-free image across the full 126" ultrawide format.
• RF-welded tabs — Welded tab construction creates a durable seal that resists separation and stickiness over years of cycling.
• 21:9 ultrawide format — The wide 21:9 aspect ratio suits multi-source layouts, widescreen content, and panoramic presentation in conference and training rooms.
• LVC-IV low voltage controller — The included low-voltage controller integrates with Crestron, AMX, Extron, and other commercial AV control systems for automated up/stop/down operation.
• Quiet, UL-listed motor — The instantly reversible tubular motor runs at a low 44 dB, appropriate for acoustically sensitive meeting spaces.
• Pentagonal steel case — A 22-gauge steel case with black plastisol finish and matching endcaps forms universal wall- or ceiling-mounting brackets.
• Wall or ceiling mounting — Universal brackets and an optional ceiling trim kit support surface or recessed installation.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms requiring a full-size, widescreen front-projection surface
• Conference rooms with automated screen control through a Crestron, AMX, or Extron system
• Training rooms and commercial meeting spaces using front projection on demand
• Multi-purpose rooms where the screen retracts out of view when not in use
• Government and institutional spaces specifying a UL-listed, quiet motorized screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface material, and size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier a tab-tensioned screen?

Yes. The Premier is a Series V tab-tensioned electric screen. Draper's factory-set tab-tensioning system, with RF-welded tabs, keeps the viewing surface flat and wrinkle-free for a consistent projected image.

What does the LVC-IV controller on this unit do?

The LVC-IV is Draper's low voltage controller. It lets integrators tie the screen into commercial AV control systems such as Crestron, AMX, and Extron for automated up, stop, and down operation alongside projectors and shades.

Can the Premier be recessed into a ceiling?

Yes. It mounts to a wall or ceiling using the universal brackets formed by its endcaps, and an optional white aluminum ceiling trim kit is available for recessed installation. Draper recommends an additional 12" black top drop for ceiling-recessed jobs.

What projectors and mounts are compatible with this screen?

The Premier works with any commercial front projector matched to its 126" 21:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How loud is the motor during operation?

The Premier uses an instantly reversible, UL-listed tubular motor rated at approximately 44 dB, which is quiet enough for most conference rooms and boardrooms. A dedicated Quiet motor option is also offered on the Premier line for more acoustically sensitive rooms.

What warranty and support are included?

The Premier carries Draper's 5-year limited warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
