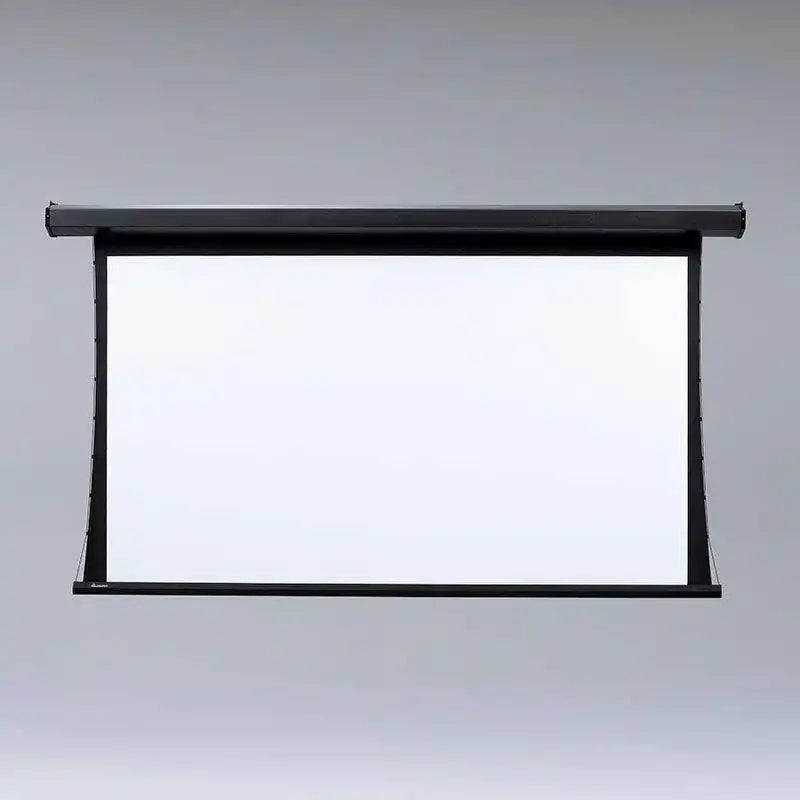

Draper Premier, 123", 16:10, Grey XH600V, 110 V, with Quiet Motor - 101648Q

Product Overview

The Draper Premier with Grey XH600V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring ambient light rejection in a lower-profile ceiling housing. The Grey XH600V surface delivers a 0.6 gain with ambient light rejection properties, making it the preferred choice for conference rooms, boardrooms, and classrooms where ambient light cannot be fully controlled and screen contrast must be maintained. The Premier housing's lower profile makes it suitable for installations with limited plenum depth. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.

Product Description

The Grey XH600V surface uses a grey formulation to increase perceived contrast in rooms with moderate ambient light. With a 0.6 gain, the surface absorbs more ambient light than a standard white surface while reflecting projected content with enhanced contrast—making images appear crisper and more defined in boardrooms, conference rooms, and classrooms with windows or uncontrolled lighting. This is the surface of choice for commercial spaces that cannot achieve full blackout conditions.

The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction before ceilings are closed. The screen assembly is stored safely off-site and snapped into preset latching brackets when the space is ready for AV commissioning. The RF-welded tab-tensioning system maintains a flat image plane, with tabs warranted for five years against separation.

Key Features

• Grey XH600V Viewing Surface (0.6 Gain) — Ambient light rejection; enhances projected image contrast in rooms with uncontrolled lighting conditions.
• Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted; bottom flange trims opening cleanly.
• Lower-Profile Housing — Compact case suitable for installations with limited above-ceiling plenum depth.
• RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
• Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
• Quiet Motor Option — Reduces operational noise.
• LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
• Plenum-Rated, UL-Listed Housing — Approved for environmental air-handling ceiling spaces.

Typical Applications

• Conference room with windows or ambient light
• Boardroom
• Classroom or training room
• Executive presentation space
• Hybrid meeting room

Technical Specifications

Frequently Asked Questions

When is the Grey XH600V the right surface choice?
When ambient light in the room cannot be fully controlled. The grey formulation increases perceived contrast by absorbing more ambient light than a standard white surface.

How does the Premier differ from the Access V?
The Premier features a lower-profile housing suitable for installations with limited above-ceiling plenum depth.

Can the LVC-IV controller integrate with Crestron or Extron?
Yes. Specify at time of order to have it built into the housing.

Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
