Draper Premier, 113", 16:10, ClearSound NanoPerf XT1000V, 110 V, with Quiet Motor - 101794SCQ
Draper Premier, 113", 16:10, ClearSound NanoPerf XT1000V, 110 V, with Quiet Motor - 101794SCQ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Premier, 113", 16:10, ClearSound NanoPerf XT1000V, 110 ...
Product Overview

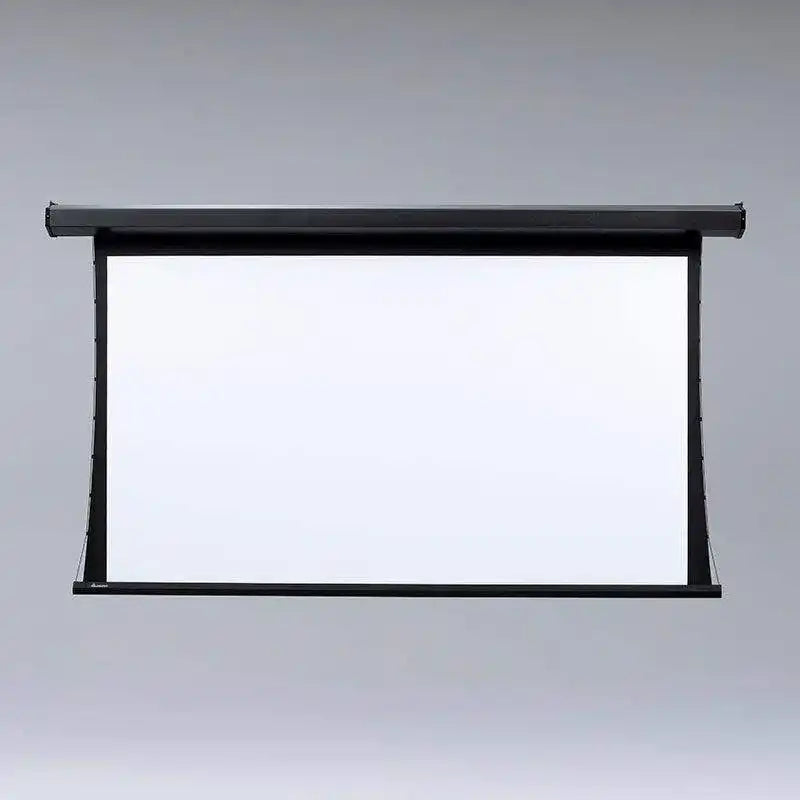

The Draper Premier with ClearSound NanoPerf XT1000V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring acoustically transparent performance in a lower-profile ceiling housing. The ClearSound NanoPerf XT1000V allows audio from speakers placed behind the screen to pass through without audible loss—enabling a true speaker-behind-screen configuration where center channel audio emanates from the image plane. With a 1.0 gain, this surface delivers reference-standard image quality identical to the Matt White XT1000VB while adding full acoustic transparency. The Premier housing's lower profile makes it suitable for installations with limited above-ceiling plenum depth.
Product Description
ClearSound NanoPerf XT1000V uses Draper's micro-perforation process to create a consistent pattern of precisely sized perforations across the screen surface. The perforations are sized to allow high-frequency audio to pass freely while having a negligible visual impact on the projected image at normal viewing distances. The 1.0 gain surface maintains full reference-white brightness, making it the highest-performance acoustically transparent surface in the Premier lineup for critical AV applications.

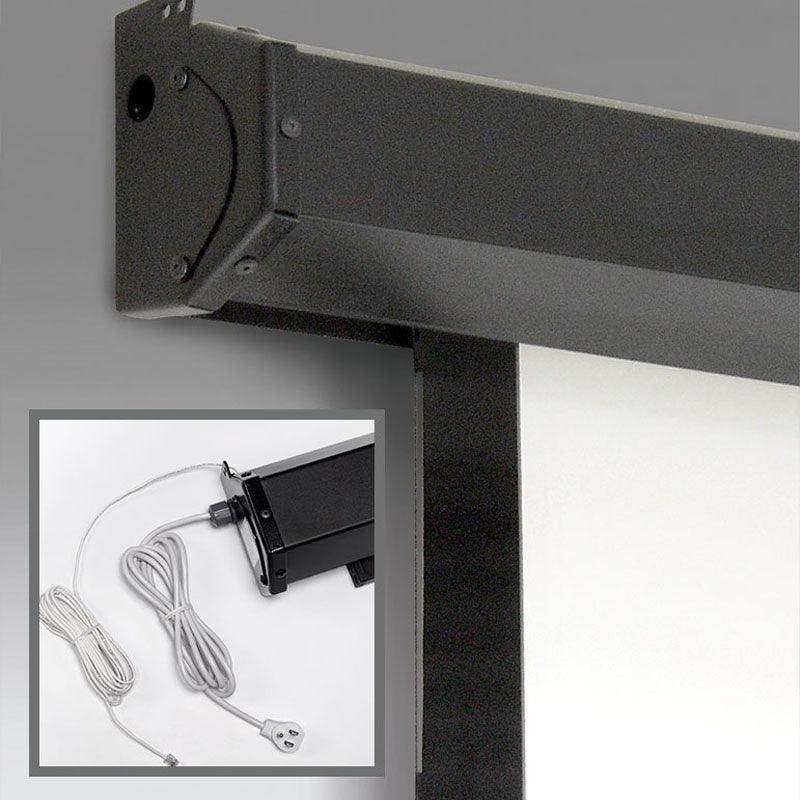

The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction. The screen assembly snaps into preset latching brackets when the space is ready for AV commissioning. The RF-welded tab-tensioning system maintains a flat image plane, with tabs warranted for five years against separation.
Key Features
- ClearSound NanoPerf XT1000V (1.0 Gain) — Acoustically transparent; micro-perforations for speaker-behind-screen configurations.
- Speaker-Behind-Screen Compatibility — Center channel audio emanates from the image plane for proper stereo image alignment.
- 16:10 Format (WUXGA) — Native match for 1920×1200 projectors.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Lower-Profile Housing — Compact case suitable for installations with limited above-ceiling plenum depth.
- RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications

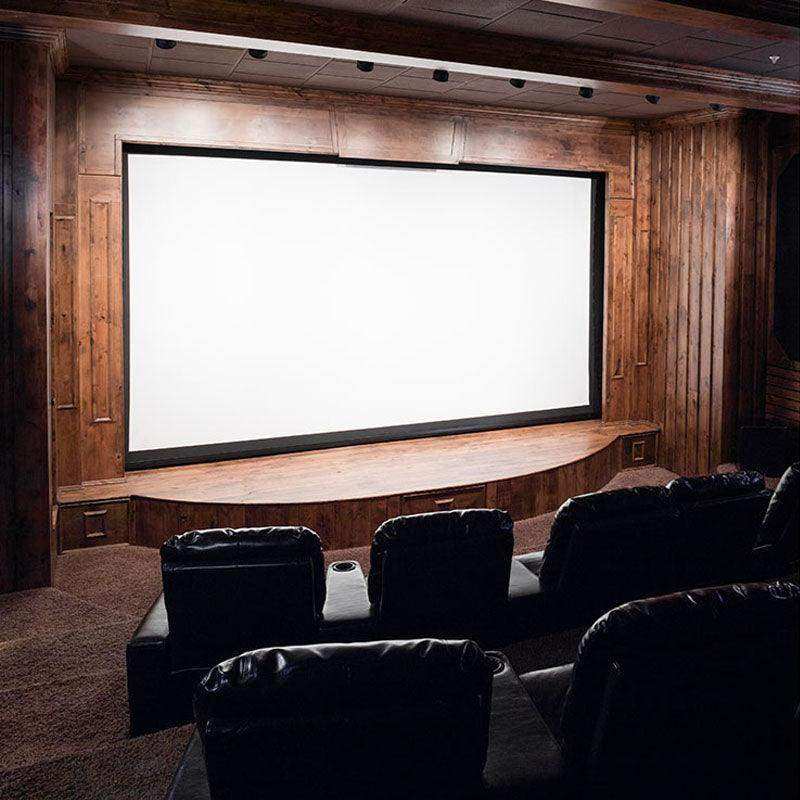

- High-end home theater
- Executive screening room
- Corporate auditorium with speaker system
- House of worship with distributed audio
- University lecture hall with full AV integration
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | ClearSound NanoPerf XT1000V |
| Surface Gain | 1.0 |
| Acoustic Transparency | Yes — micro-perforation pattern |
| Format | 16:10 (WUXGA) |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (Q) | LVC-IV (U) | QM + LVC-IV (QU) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
Can I place speakers directly behind this screen?
Yes. The NanoPerf micro-perforation pattern is designed for center channel, LCR, and distributed speaker placement behind the screen surface.
Is the acoustic transparency visible at normal viewing distances?
No. The micro-perforations are invisible at normal projection viewing distances.
How does the Premier differ from the Access V?
The Premier features a lower-profile housing suitable for installations with limited above-ceiling plenum depth.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
