Draper Premier – 109", 16:10 – 101639CBU

Product Overview

The Draper Premier is a tab-tensioned motorized projection screen engineered for permanent commercial AV installations in conference rooms, boardrooms, and training rooms. This 109" 16:10 widescreen model uses Draper's Series V tab-tensioning to hold a flat, even image surface, and it ships with the LVC-IV low-voltage controller (Part #101639CBU) for integration with commercial AV control systems. The ceiling- or wall-mounted electric screen suits data-and-video presentation environments that standardize on the 16:10 aspect ratio. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

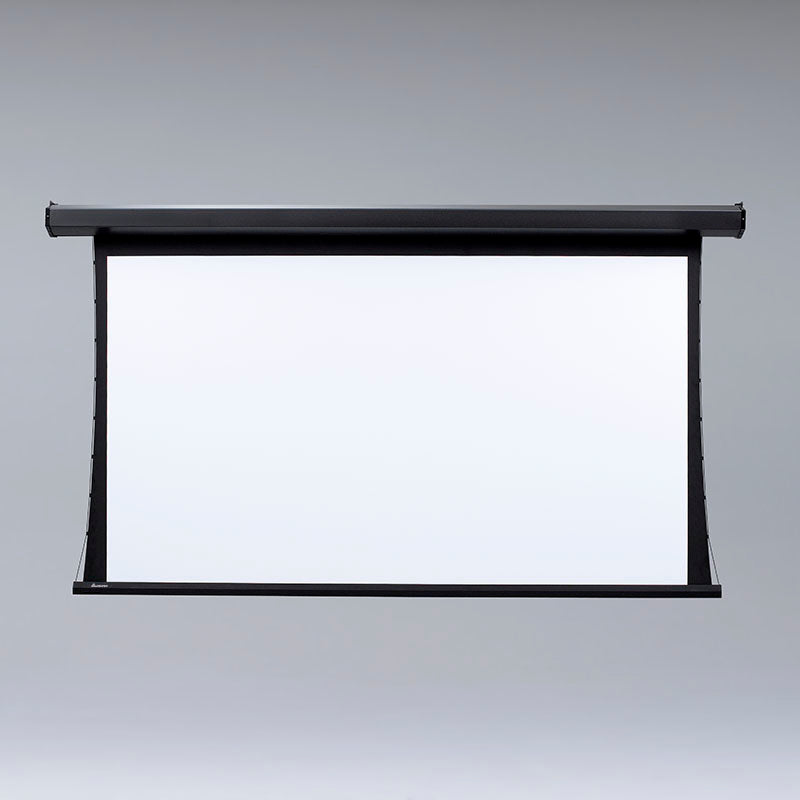

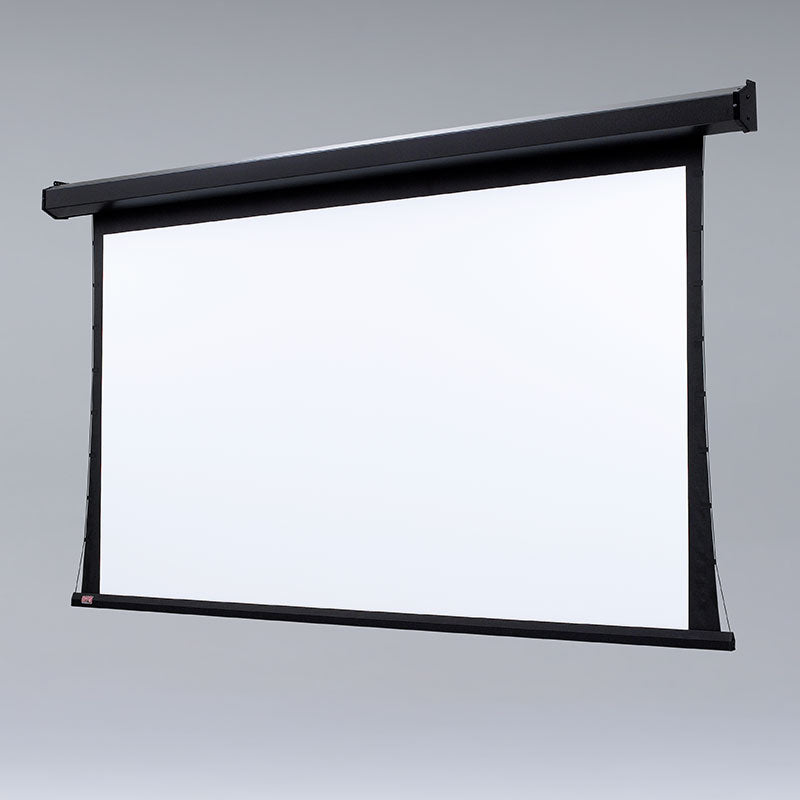

The Draper Premier electric projection screen houses a tab-tensioned viewing surface in a sleek black pentagonal steel case designed for wall or ceiling mounting. Series V tab-tensioning uses a tab-guide cable system along each side to hold the surface flat and eliminate the waviness that degrades a projected image, while RF-welded tabs form a durable seal warranted against separation. This 109" screen is built in the 16:10 widescreen format, a common native ratio for commercial laptops and presentation sources, keeping projected content edge-to-edge without letterboxing. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top for a finished appearance. The unit is configured with the LVC-IV low-voltage controller, which provides a 3-wire connection to building automation and commercial AV control systems such as Crestron, AMX, Extron, and QSC; a 110-120V 3-position control switch is also included as standard. Optional wall- or ceiling-mounting brackets and a white aluminum ceiling trim kit support surface or recessed installation. The Premier is offered with a range of Draper viewing surfaces, so confirm the exact surface for this configuration with Creation Networks before ordering. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for other sizes and surfaces, or contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Series V tab-tensioning — Tab-guide cables along both edges hold the viewing surface flat for a consistently even, wrinkle-free projected image.
• 16:10 widescreen format — The 109" screen matches the native aspect ratio of many commercial presentation sources, filling the image area without letterboxing.
• LVC-IV low-voltage control — A 3-wire low-voltage connection integrates the screen with Crestron, AMX, Extron, and QSC control systems.
• Pentagonal steel case — The black plastisol-finished steel case mounts to a wall or ceiling and includes matching endcaps with universal mounting brackets.
• RF-welded tab construction — Radio-frequency-welded tabs form a durable seal warranted against separation, protecting long-term flatness.
• Finished black framing — The image area is fully framed in black with a standard 12" (30 cm) top drop for a clean installed appearance.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full Draper manufacturer warranty coverage.

Typical Applications

• Conference rooms and boardrooms standardized on 16:10 presentation content
• Corporate training rooms and multi-purpose rooms using front projection
• Commercial meeting spaces integrated with Crestron, AMX, or Extron control
• Huddle rooms and mid-size meeting spaces requiring a motorized electric screen
• Government and education spaces needing a ceiling- or wall-mounted screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Viewing surface and voltage for this configuration are not published at the SKU level; confirm surface, voltage, and exact viewable dimensions with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier a tensioned screen?

Yes. The Premier is a Series V tab-tensioned electric screen. Tab-guide cables run along both edges and RF-welded tabs hold the surface flat, delivering an even, wrinkle-free image across the full width.

What does the "U" in part number 101639CBU indicate?

The U denotes the LVC-IV low-voltage controller, which adds low-voltage control integration to the screen for use with commercial AV control systems.

Can this screen integrate with a Crestron or AMX control system?

Yes. The LVC-IV low-voltage controller provides a 3-wire connection compatible with Crestron, AMX, Extron, QSC, and similar commercial AV control systems. A standard 110-120V 3-position wall switch is also included.

Why choose a 16:10 screen?

16:10 is a native aspect ratio for many commercial laptops and presentation projectors. Matching the screen to the source ratio fills the image area without letterbox bars, which is useful in rooms standardized on data-and-video content.

What projectors and mounts are compatible with the Premier?

It works with any commercial front projector matched to its 109" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Which viewing surface does this unit use?

The Premier is available with several Draper viewing surfaces. The exact surface for this configuration is not published at the SKU level, so contact Creation Networks to confirm the surface before ordering.

What warranty and support are included?

The Premier carries Draper's 5-year warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
