Draper Premier, 106", HDTV, Matt White XT1000VB, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller - 101060QU
Draper Premier, 106", HDTV, Matt White XT1000VB, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller - 101060QU is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Premier, 106", HDTV, Matt White XT1000VB, 110 V, with Q...
Product Overview
The Draper Premier with Matt White XT1000VB surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring full ceiling concealment in a lower-profile housing. The Matt White XT1000VB is Draper's standard reference white surface with a 1.0 gain—delivering accurate, neutral brightness across a wide viewing angle—making it the most broadly applicable surface in the Premier lineup. The Premier housing's lower profile makes it suitable for installations with limited plenum depth. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.
Product Description
The Matt White XT1000VB surface delivers a 1.0 gain with wide-angle, spectrally neutral reflectivity, making it the default choice for commercial AV installers specifying a Premier without a specialized ambient light, contrast, or acoustic transparency requirement. The surface works well with a broad range of commercial projectors across the throw distances and lumen ratings typical in corporate environments.

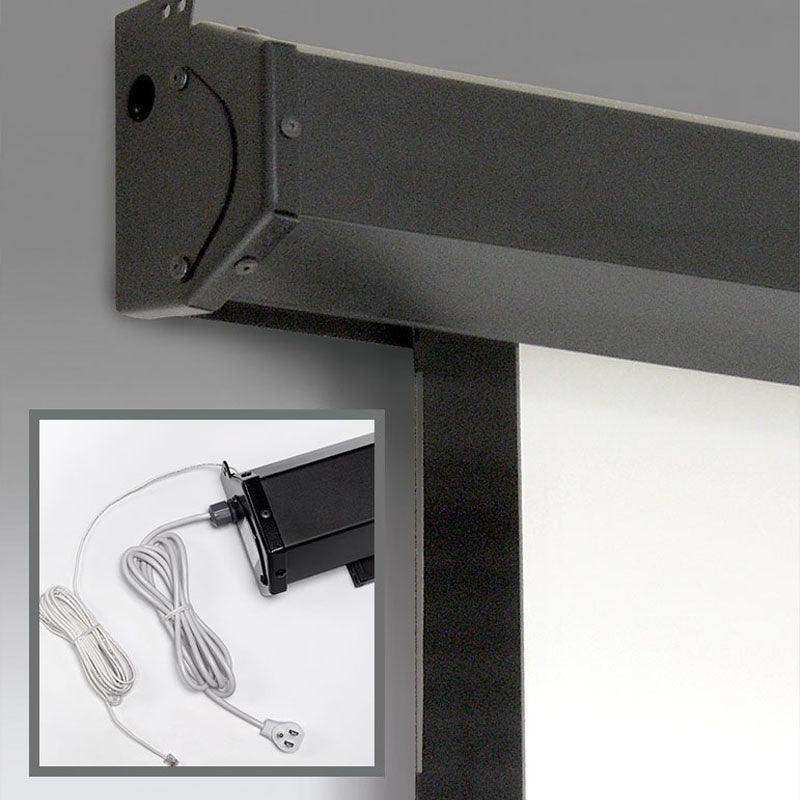

The Premier housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction before ceilings are closed. The screen assembly snaps into preset latching roller brackets when the space is ready for AV commissioning. The RF-welded tab-tensioning system maintains a consistently flat image plane, with tabs warranted for five years against separation. Optional Quiet Motor and LVC-IV Low Voltage Controller must be specified at time of order.
Key Features
- Matt White XT1000VB Viewing Surface (1.0 Gain) — Standard reference white; spectrally neutral with wide-angle reflectivity.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Lower-Profile Housing — Compact case suitable for installations with limited above-ceiling plenum depth.
- RF-Welded Tab-Tensioned System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Boardroom
- Conference room
- Training room
- Multipurpose room
- House of worship
- Auditorium
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | Matt White XT1000VB |
| Surface Gain | 1.0 |
| Available Formats | HDTV 16:9, 16:10 (WUXGA), NTSC 4:3, 21:9 Ultrawide |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (Q) | LVC-IV (U) | QM + LVC-IV (QU) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
How does the Premier differ from the Access V?
The Premier features a lower-profile housing suitable for installations with limited above-ceiling plenum depth. Both series are motorized ceiling-recessed screens with tab-tensioning, plenum-rated housings, and case-now, screen-later installation.
Is the Matt White XT1000VB a good general-purpose surface choice?
Yes. The 1.0 gain spectrally neutral surface works with the widest range of projectors and environments.
Can the LVC-IV controller integrate with Crestron or Extron?
Yes. Specify at time of order to have it built into the housing.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
