Draper Premier – 104 1/4", 21:9 Ultrawide – 101814CB

Product Overview

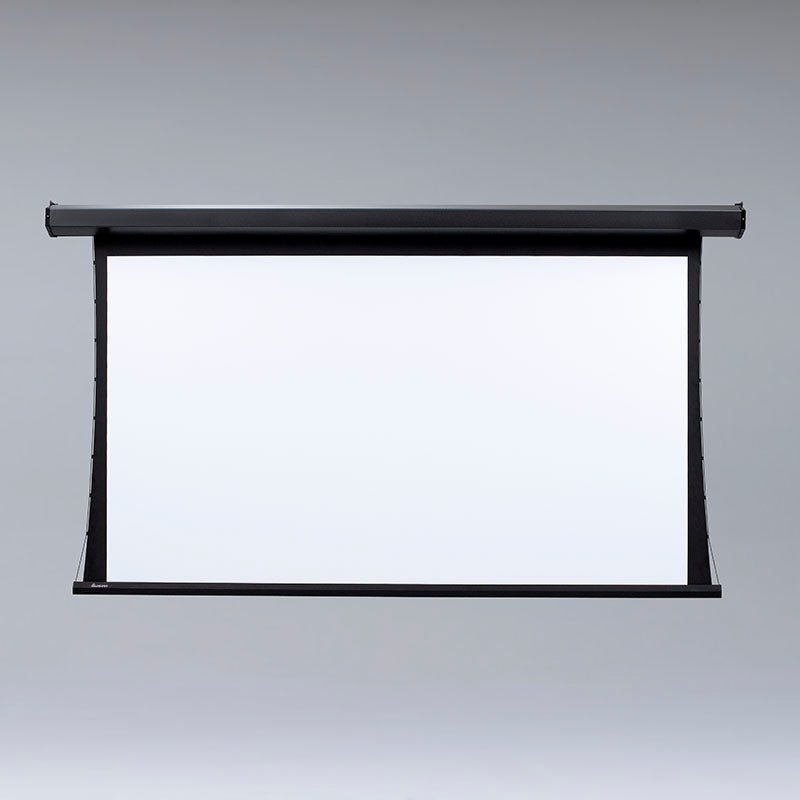

The Draper Premier is a tab-tensioned, electric 21:9 ultrawide motorized projection screen built for permanent commercial AV installations in conference rooms, boardrooms, and training spaces. This 104 1/4" diagonal ultrawide model uses Draper's RF-welded tab-tensioning to hold a perfectly flat viewing surface, making it a clean fit for rooms that display panoramic or multi-source content. As a ceiling- or wall-mounted 104-inch motorized projection screen, it supports image widths up to 12' and installs neatly in finished commercial interiors. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Premier tab-tensioned electric screen is engineered for integrators who need a dependable, low-noise motorized screen with a wrinkle-free image in a permanent installation. This unit is configured in the 21:9 ultrawide format at a 104 1/4" diagonal, a wide layout suited to panoramic content, side-by-side sources, and widescreen presentation. The viewing surface is held flat by Draper's factory-set tab-tensioning system, with RF-welded tabs that provide a durable seal and resist separation over years of use. The screen rolls into a pentagonal 22-gauge steel case finished in black plastisol, measuring 5-7/8" high by 5-1/4" deep, with matching endcaps that form universal wall- or ceiling-mounting brackets. A standard 12" black drop at the top of the viewing area positions the image at a comfortable height, and the image area is fully framed in black to sharpen perceived contrast. This configuration ships with Draper's standard 3-position (up/off/down) wall switch; the Premier line also offers Quiet and LVC-IV low-voltage control options for integration with Crestron, AMX, and Extron systems. The UL-listed, instantly reversible motor runs at a low 44 dB, which suits conference rooms and boardrooms where deployment noise matters. This makes the Premier a practical choice for corporate meeting spaces, training rooms, and multi-purpose rooms that need a full-size ultrawide front-projection surface on demand. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and formats, or the broader projection screens collection. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — Draper's factory-set tensioning system holds the surface flat for a wrinkle-free image across the full 104 1/4" ultrawide format.
• RF-welded tabs — Welded tab construction creates a durable seal that resists separation and stickiness over years of cycling.
• 21:9 ultrawide format — The wide 21:9 aspect ratio suits multi-source layouts, widescreen content, and panoramic presentation in conference and training rooms.
• Standard 3-position control — Ships with an up/off/down wall switch; Quiet and LVC-IV low-voltage options are available across the Premier line.
• Quiet, UL-listed motor — The instantly reversible tubular motor runs at a low 44 dB, appropriate for acoustically sensitive meeting spaces.
• Pentagonal steel case — A 22-gauge steel case with black plastisol finish and matching endcaps forms universal wall- or ceiling-mounting brackets.
• Wall or ceiling mounting — Universal brackets and an optional ceiling trim kit support surface or recessed installation.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms displaying panoramic or side-by-side ultrawide content
• Conference rooms needing a full-size retractable front-projection surface
• Training rooms and commercial meeting spaces using front projection on demand
• Multi-purpose rooms where the screen retracts out of view when not in use
• Government and institutional spaces specifying a UL-listed, quiet motorized screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, voltage, surface material, and size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier a tab-tensioned screen?

Yes. The Premier is a Series V tab-tensioned electric screen. Draper's factory-set tab-tensioning system, with RF-welded tabs, keeps the viewing surface flat and wrinkle-free for a consistent projected image.

What is the 21:9 ultrawide format good for?

The 21:9 aspect ratio provides a very wide image, well suited to panoramic content, cinematic sources, and side-by-side data or video windows in conference and presentation rooms.

How is this unit controlled, and can it integrate with a control system?

This configuration ships with Draper's standard 3-position (up/off/down) wall switch. For integration with Crestron, AMX, or Extron, the Premier line also offers the LVC-IV low-voltage controller and Quiet motor options; contact us to specify the right configuration.

What projectors and mounts are compatible with this screen?

The Premier works with any commercial front projector matched to its 104 1/4" 21:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Can the Premier be recessed into a ceiling?

Yes. It mounts to a wall or ceiling using the universal brackets formed by its endcaps, and an optional white aluminum ceiling trim kit is available for recessed installation. Draper recommends an additional 12" black top drop for ceiling-recessed jobs.

What warranty and support are included?

The Premier carries Draper's 5-year limited warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
