Draper Premier – 100", HDTV – 101766

Product Overview

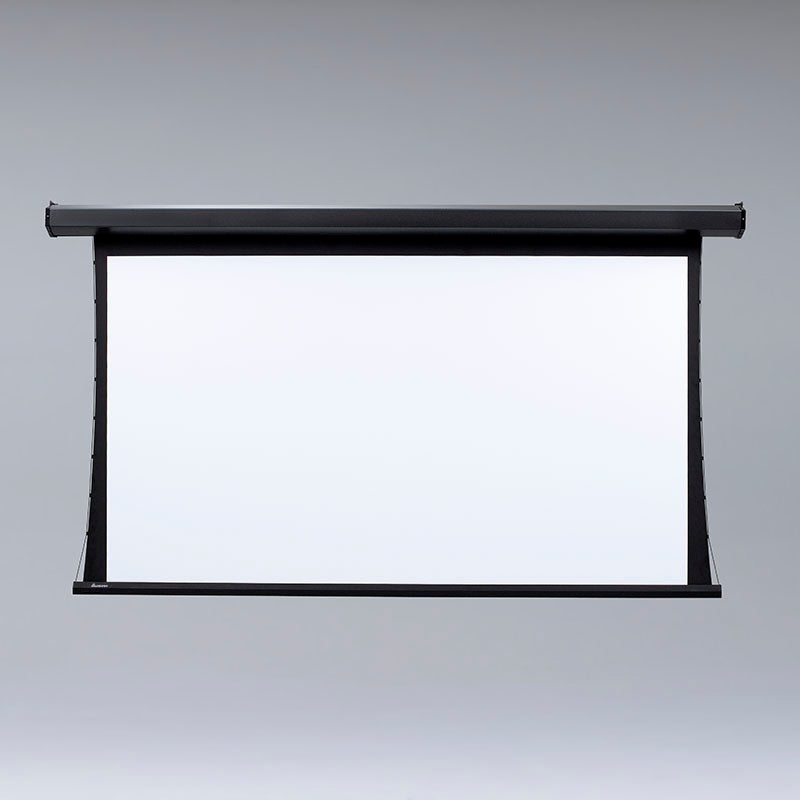

The Draper Premier is a wall- or ceiling-mounted, tab-tensioned motorized projection screen engineered for commercial AV integration in conference rooms, boardrooms, and training environments. This 100" diagonal HDTV (16:9) model uses tab-tensioned construction with RF-welded tabs to hold a perfectly flat viewing surface for consistent image quality. As an affordable Series V electric screen, it fits corporate meeting spaces, classrooms, and houses of worship that need a durable motorized screen at a competitive price. All units ship through Creation Networks at authorized-dealer pricing with Draper's five-year warranty.

Product Description

The Draper Premier tab-tensioned screen is built for integrators who need a reliable, cost-effective electric screen for everyday commercial deployments. It ships in a sleek pentagonal steel case with a black plastisol finish as standard (white optional), including matching endcaps with universal mounting brackets, and the case measures a compact 5-7/8" high x 5-1/4" deep. The tab-tensioned design uses RF-welded tabs to maintain even lateral tension and a flat surface, eliminating the separation and stickiness that can affect non-tensioned screens over time. Draper rates the Premier for image widths up to 12' (366 cm); for wider images, the Premier XL extends the same platform up to 16' (488 cm). The image area is fully framed in black with a standard 12" black drop at the top of the viewing area, and an optional white aluminum ceiling trim kit allows recessed installation when a flush ceiling appearance is required. Optional wall- or ceiling-mounting brackets add installation flexibility, and rear-projection surfaces are available for rear-projection room designs. The screen includes one 110-120V three-position switch as standard, with additional control options available for AV control system integration, and it is UL Listed. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for surface selection, throw-distance planning, and lead times.

Key Features

• Tab-tensioned Series V surface — RF-welded tabs maintain even lateral tension for a perfectly flat viewing surface and consistent image quality.
• Pentagonal steel case — A sleek steel case with black plastisol finish (white optional) and compact 5-7/8" x 5-1/4" profile for wall or ceiling mounting.
• Maximum image width up to 12' — Draper rates the Premier for image widths up to 12' (366 cm); the Premier XL covers larger sizes.
• Universal mounting brackets included — Matching endcaps with universal brackets, plus optional wall or ceiling mounting brackets for added flexibility.
• Optional recessed trim kit — An optional white aluminum ceiling trim kit supports a recessed, flush-ceiling installation.
• Rear-projection surfaces available — The Premier can be configured with rear-projection surfaces for rear-projection room designs.
• Standard three-position switch — Ships with a 110-120V three-position switch, with additional control options for AV system integration.
• UL Listed with Draper warranty — Carries UL Listing and Draper's five-year warranty, supplied by Creation Networks as an authorized dealer.

Typical Applications

• Corporate conference rooms and boardrooms
• Training rooms and huddle rooms with front projection
• Commercial meeting spaces needing a flat, tensioned image
• Houses of worship using front projection
• Multi-purpose rooms requiring a durable motorized screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm the exact viewing surface, gain, and viewable dimensions with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier tab-tensioned?

Yes. The Premier is a tab-tensioned Series V electric screen. RF-welded tabs maintain even lateral tension so the viewing surface stays flat, which improves image quality compared with non-tensioned screens.

What is the maximum image width?

Draper rates the Premier for image widths up to 12' (366 cm). For larger installations, the Premier XL uses the same platform and supports image widths up to 16' (488 cm).

Which viewing surface does this unit use?

The Premier is available in a range of Draper front- and rear-projection surfaces, including Matt White, grey contrast, ambient-light-rejecting TecVision, and CineFlex rear-projection materials. Contact Creation Networks to confirm the surface and gain for this specific configuration.

Can the Premier be recessed into the ceiling?

Yes. An optional white aluminum ceiling trim kit allows a recessed, flush-ceiling installation. Draper recommends an additional 12" black top drop for ceiling-recessed installations.

What projectors and mounts are compatible with the Premier?

It works with commercial projectors matched to its 100" 16:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Premier carries Draper's five-year warranty (USA and Canada) and is UL Listed, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
