Draper Premier, 10', NTSC, Grey XH600V, 110 V, with Quiet Motor - 101271Q

Product Overview

The Draper Premier (101271Q) is a tab-tensioned motorized projection screen that holds a perfectly flat viewing surface for distortion-free images for commercial AV integration. This configuration delivers a 10' diagonal 4:3 NTSC image on the Grey XH600V viewing surface (0.6 gain, 180° viewing angle), making it well suited to rooms with some ambient light such as multi-purpose and worship spaces. It installs as a wall- or ceiling-mounted motorized projection screen and ships with a standard 110-120V three-position control switch (this SKU adds the quiet, low-noise motor option).

Product Description

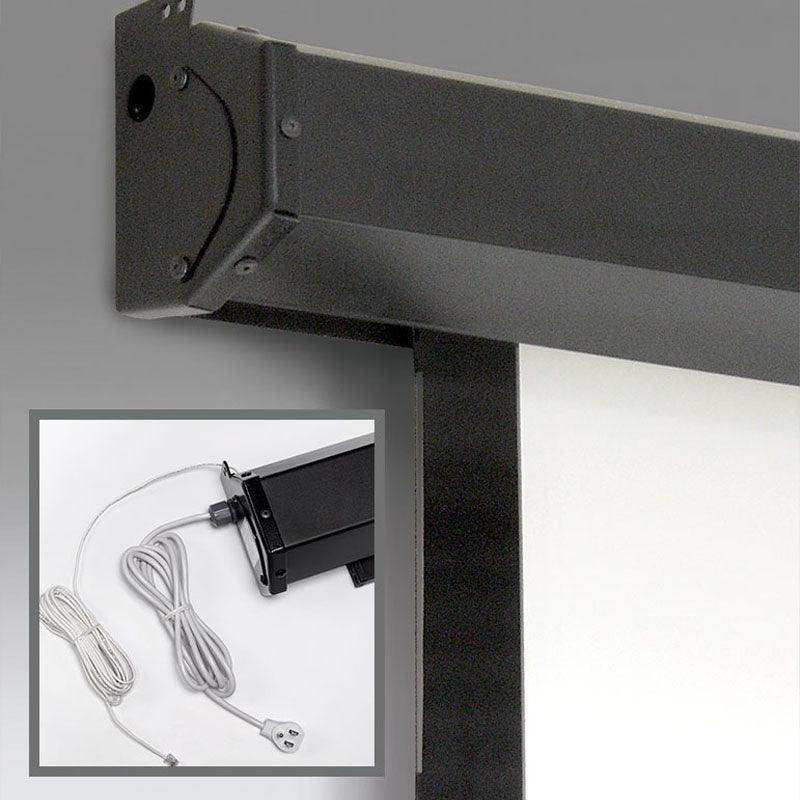

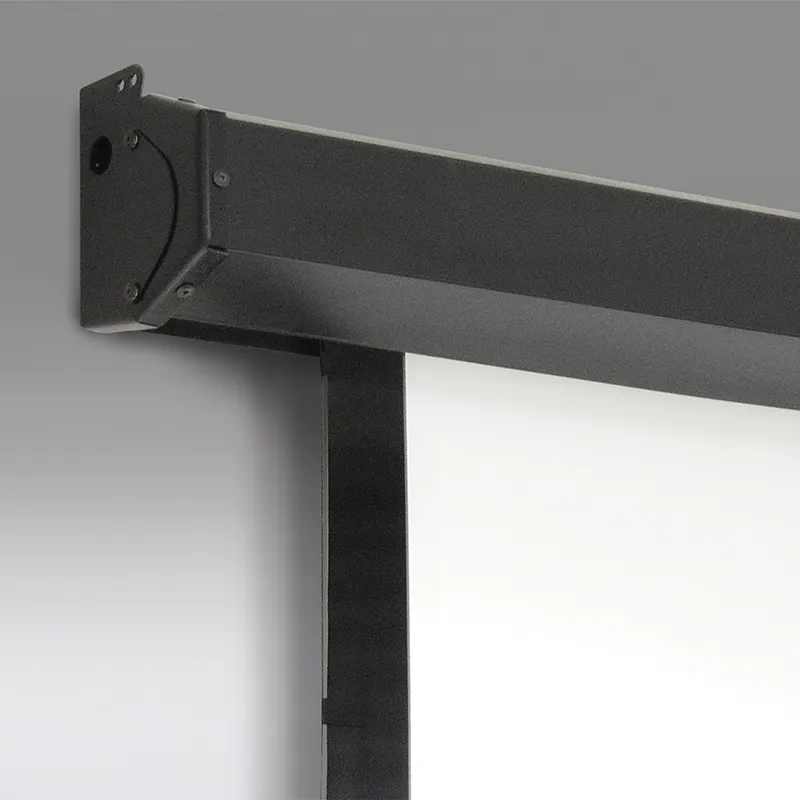

The Premier is engineered for boardrooms, worship spaces, and multi-purpose rooms with some ambient light that need a tab-tensioned screen with improved contrast and quiet operation. Its tab-tensioning system with RF-welded tabs keeps the surface drum-flat across the full image area, eliminating the curl and waviness that degrade edge-to-edge focus. Endcaps form universal mounting brackets, so the screen mounts to a wall or ceiling without additional hardware.

The Grey XH600V surface offers 0.6 gain and a 180° viewing angle, and it deepens black levels and improves perceived contrast where some ambient light is present. At 10' in a 4:3 NTSC aspect ratio, this size matches the throw distances and seating depths typical of rooms with some ambient light such as multi-purpose and worship spaces. Maximum image width on this model reaches 12' (366 cm), and the case carries a UL listing. The screen is electrically operated by a tubular motor mounted inside the roller, instantly reversible with an electric brake, and the optional Quiet Motor on this SKU runs at approximately 44 dB — about 30% quieter than a standard tubular motor — for boardrooms and worship spaces where motor noise is noticeable.

Compare related Draper motorized screens at Creation Networks, including the full Draper projection screen collection and other electric screen lines such as the Access E, Premier, Targa, and Ultimate Access series.

Key Features

• Grey XH600V viewing surface — 0.6 gain, 180° viewing angle. The surface deepens black levels and improves perceived contrast where some ambient light is present.

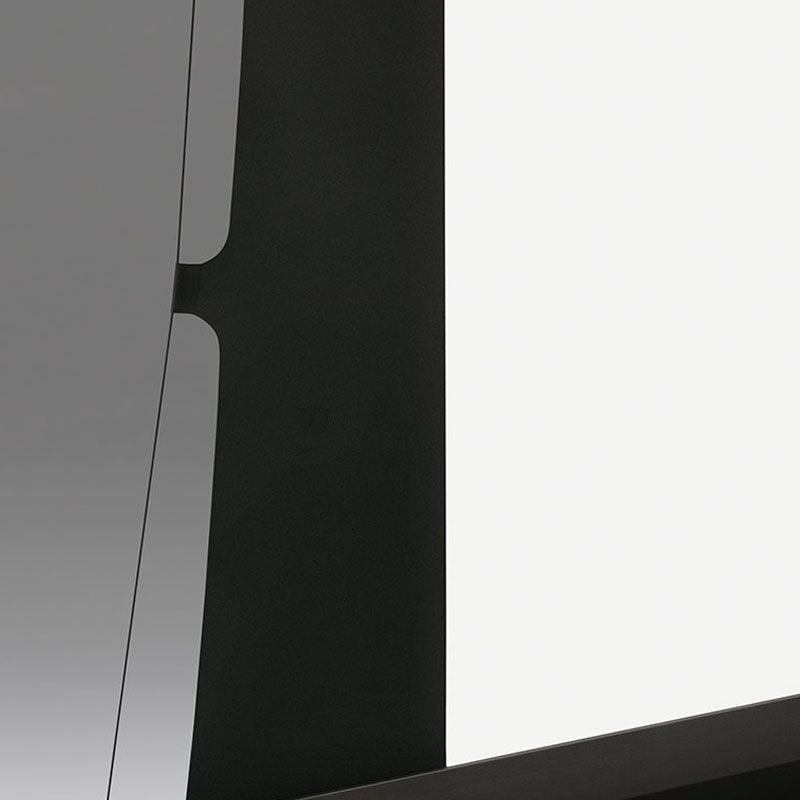

• Tab-tensioned flatness — RF-welded tabs hold the surface perfectly flat for distortion-free, edge-to-edge image geometry.
• Wall- or ceiling-mount flexibility — Universal mounting brackets support either wall or ceiling installation.
• 4:3 NTSC image format — Native 4:3 NTSC geometry at 10' diagonal for rooms with some ambient light such as multi-purpose and worship spaces.
• Quiet Motor included — Operates at roughly 44 dB, about 30% quieter than a standard motor, for noise-sensitive rooms.
• Standard 3-position control — Ships with a 110-120V up/stop/down wall switch; LVC-IV and 220V options are factory-built.
• UL listed, 5-year warranty — UL-listed assembly backed by Draper's 5-year warranty for commercial deployment.

Typical Applications

• House of worship
• Conference room
• Boardroom
• Multi-purpose room
• All-hands room
• Auditorium

Technical Specifications

Frequently Asked Questions

What does the Grey XH600V surface do?
The high-contrast grey surface (0.6 gain) deepens black levels and raises perceived contrast in rooms that cannot be fully darkened, at the cost of some peak brightness versus a white surface.

How quiet is the Quiet Motor option on this SKU?
The Quiet Motor runs at approximately 44 dB — about 30% quieter than a standard tubular motor — which is noticeable in worship spaces and boardrooms.

Is this screen tab-tensioned?
Yes. The Premier is tab-tensioned with RF-welded tabs for a perfectly flat surface and accurate image geometry.

What is the projected image size in this NTSC (4:3) configuration?
The 10' model provides a 72" x 96" viewable area in the 4:3 NTSC format.

Can it integrate with a control system?
Yes. Beyond the included 3-position switch, LVC-IV low-voltage control and 220V operation are available factory-built for integration.

What warranty applies?
UL listed and backed by Draper's 5-year warranty.
