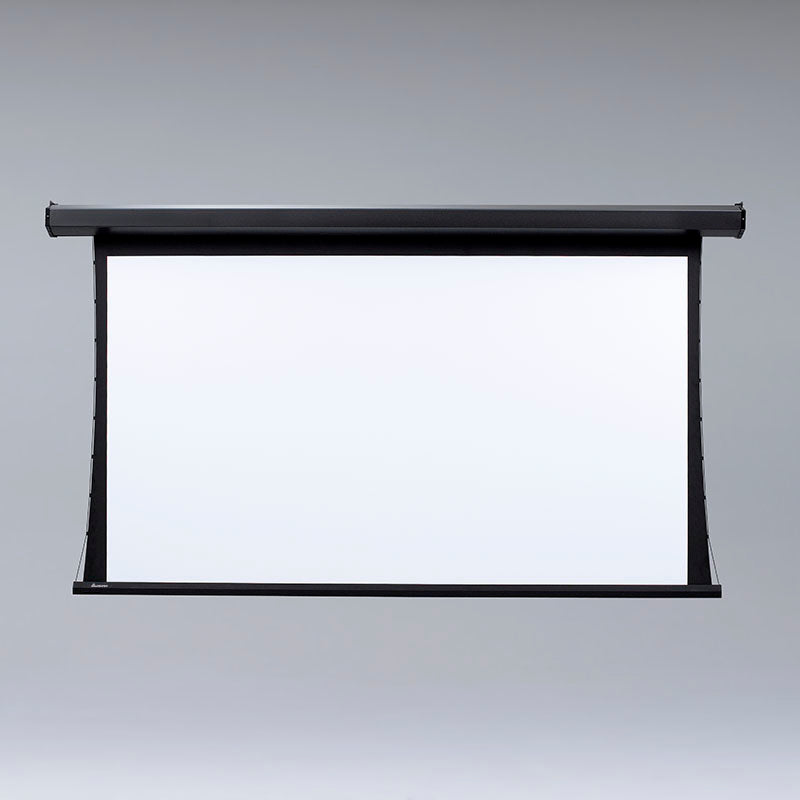

Draper Premier – 10', NTSC – 101229SCQ

Product Overview

The Draper Premier is an electric, tab-tensioned projection screen built for permanent commercial AV installations that need a perfectly flat image from a motorized ceiling- or wall-mounted screen. This 10' NTSC (4:3) model pairs a steel case with RF-welded tensioning tabs and ships with a quiet motor for noise-sensitive rooms. As a 10-foot motorized projection screen, it holds the viewing surface flat and wrinkle-free for accurate, distortion-free front projection in conference rooms, boardrooms, and training rooms. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Premier electric screen is engineered for integrators specifying a motorized, tab-tensioned image surface in a durable steel case finished in black plastisol, with white available as an option. Tab-tensioning uses RF-welded tabs along both edges to keep the surface taut and perfectly flat, eliminating the curl and edge waves common to free-hanging screens and delivering a clean picture for front projection. The case measures 5-7/8" high by 5-1/4" deep (15 cm x 13 cm), with matching endcaps that form universal wall- or ceiling-mounting brackets so the same unit fits most commercial mounting scenarios. A standard 12" (30 cm) black drop at the top of the viewing area sets the image at the correct height for the room and supports ceiling-recessed installation with an optional trim kit. This unit is configured with a quiet motor to reduce operating noise in boardrooms, worship spaces, and other acoustically sensitive rooms, and it can be operated from the standard three-position control. The Premier supports a maximum image width up to 12' (366 cm); for wider images, the Premier XL extends the same platform. This makes it well suited to corporate meeting spaces, higher-education classrooms, and worship venues that need quiet, reliable daily motorized operation. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and formats, or the broader projection screens collection. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned surface — RF-welded tabs hold the viewing surface flat and wrinkle-free for distortion-free front projection.
• Motorized operation — An electric drive raises and lowers the screen on command for daily use in commercial rooms.
• Quiet motor — This unit is configured with a quiet motor to reduce operating noise in acoustically sensitive spaces.
• Steel case — A one-piece steel case with black plastisol finish, white optional, protects the roller in permanent installations.
• Universal mounting — Matching endcaps form universal brackets for either wall or ceiling installation.
• 12" black drop — A standard 12" (30 cm) black drop positions the image and supports ceiling-recessed mounting.
• Control options available — Ships with a standard three-position switch, with low-voltage and other control options available for AV integration.
• Draper 5-year warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms and conference rooms using motorized front projection
• Training rooms and all-hands rooms that retract the screen when not in use
• Higher-education and corporate classrooms
• Houses of worship with fixed front-projection systems
• Multi-purpose rooms requiring a flat, retractable image surface

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Premier a tab-tensioned screen?

Yes. The Premier is a tab-tensioned electric screen that uses RF-welded tabs along both edges to hold the viewing surface flat and wrinkle-free, which delivers a distortion-free image compared with free-hanging motorized screens.

What does the quiet motor option provide?

This unit is configured with a quiet motor that lowers operating noise during raise and lower cycles, which is helpful in boardrooms, worship spaces, and recording environments where screen noise would be distracting.

What projectors and mounts are compatible with this screen?

The Premier works with any commercial front projector matched to its 10' NTSC (4:3) format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the Premier installed?

It is a motorized screen that mounts to a wall or ceiling. The steel case includes matching endcaps that form universal mounting brackets, and a standard 12" black drop supports ceiling-recessed installation with an optional trim kit.

Can this screen be integrated with an AV control system?

Yes. The Premier ships with a standard three-position switch, and low-voltage and other control options are available so integrators can trigger the screen from a control processor or building-automation system.

What warranty and support are included?

The Premier carries Draper's 5-year warranty (valid in the U.S. and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
