Draper Nocturne+ E – 113", 16:10 – 138025

Product Overview

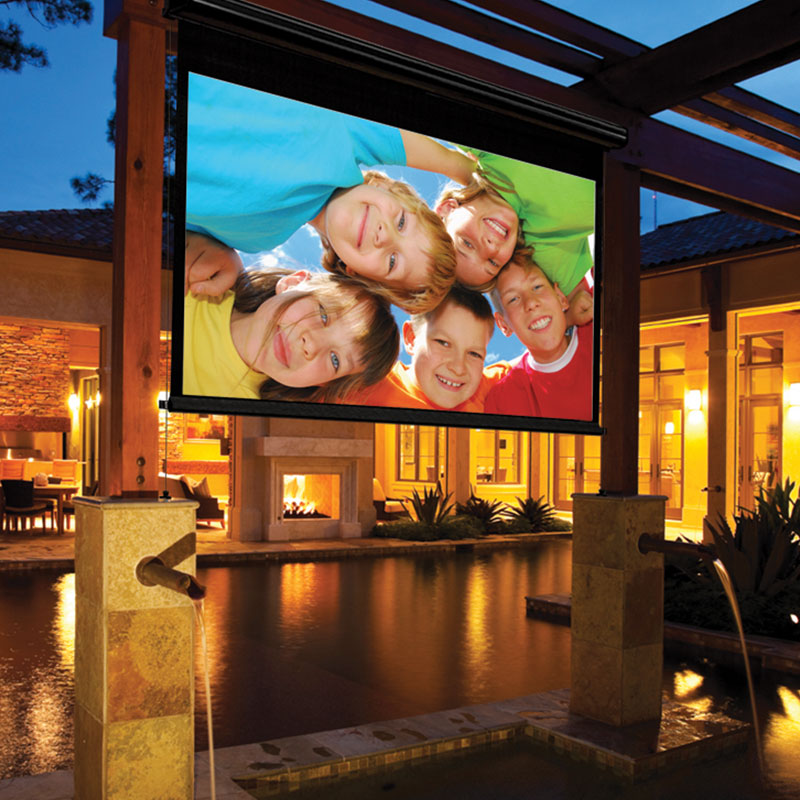

The Draper Nocturne+ E is a weather-resistant, electric outdoor motorized projection screen engineered for permanent open-air AV installations. This 113" diagonal 16:10 model is a Draper Series E free-hanging screen, built with an insect- and weather-resistant aluminum headbox and a weighted hem bar for reliable performance on patios, pool decks, and hospitality spaces. As a wall- or structure-mounted outdoor projection screen for commercial AV, it ships with floating wall brackets for secure, installer-friendly mounting. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Nocturne+ E weather-resistant projection screen is designed for integrators specifying front projection in outdoor commercial environments where a standard indoor screen would not survive the elements. It is a Series E free-hanging (non-tensioned) electric screen, meaning the viewing surface hangs from the roller and is stabilized by a weighted hem bar rather than side tab-tensioning. The screen retracts into an insect- and weather-resistant aluminum headbox measuring 3-5/8" deep by 3-5/8" high, with an integrated hinge that simplifies installation and ongoing maintenance. Floating wall brackets grip the back of the case for a secure, low-visibility mount, and hardware is available in silver, white, black, ivory, or charcoal bronze to match the surrounding architecture. In breezy locations, cable guides secure the hem bar to reduce sway during operation, and Draper recommends retracting the screen in high wind to prevent damage. This unit is offered in the 16:10 widescreen format at a 113" diagonal, with a 60" x 96" viewing area suited to hospitality video, sports viewing, and outdoor presentation. This makes the Nocturne+ E a practical choice for patios, pool decks, restaurants and bars, and other open-air commercial venues that need a durable, retractable image surface. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and formats, or the broader projection screens collection. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Weather-resistant outdoor design — Built for patios, pool decks, and hospitality spaces, with materials rated for open-air commercial use.
• Insect- and weather-resistant aluminum headbox — The 3-5/8" square headbox includes an integrated hinge for easy installation and maintenance access.
• Free-hanging (non-tensioned) surface — The Series E surface hangs from the roller and is stabilized by a weighted hem bar rather than tab-tensioning.
• Weighted hem bar — Adds mass at the bottom of the surface to keep the image stable during deployment.
• Cable guides for windy conditions — Optional cable guides secure the hem bar to limit sway; retract the screen in high wind to prevent damage.
• Floating wall brackets included — Brackets grip the back of the case for a secure, simplified, low-visibility mount.
• Multiple hardware finishes — Available in silver, white, black, ivory, or charcoal bronze, with custom powder coat colors on request.
• Remote control options — The electric motor supports remote control options for convenient outdoor operation.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Hospitality patios, pool decks, and open-air lounges
• Restaurants, bars, and outdoor dining areas showing sports and media
• Outdoor commercial meeting and event spaces
• House of worship outdoor services and community movie nights
• Multi-purpose courtyards and open-air venues

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, voltage, surface material, and size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Nocturne+ E a tab-tensioned screen?

No. The Nocturne+ E is a Draper Series E free-hanging screen. The viewing surface hangs from the roller and is stabilized by a weighted hem bar rather than side tab-tensioning, which keeps the design simple and durable for outdoor use.

Can this screen be installed outdoors?

Yes. The Nocturne+ E is a weather-resistant exterior screen designed for patios, pool decks, hospitality spaces, and other open-air environments. It uses an insect- and weather-resistant aluminum headbox and ships with floating wall brackets for secure mounting.

How does it hold up in wind?

A weighted hem bar stabilizes the surface during operation, and cable guides can secure the hem bar in breezy conditions. Draper recommends retracting the screen in high wind to prevent damage, since the fabric itself remains unsecured.

What projectors and mounts are compatible with this screen?

The Nocturne+ E works with any commercial front projector matched to its 113" 16:10 format and your throw distance; use a projector and mount rated for the outdoor environment. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What finishes are available for the hardware?

The headbox and hardware are offered in silver, white, black, ivory, or charcoal bronze, with custom powder coat colors available to match the surrounding architecture.

What warranty and support are included?

The Nocturne+ E carries Draper's 5-year limited warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
