Draper Edgeless Clarion, 123", 16:10, Matt White XT1000VB
Product Overview
The Draper ShadowBox Clarion (Part #255029) is a commercial-grade fixed frame projection screen with a Matt White XT1000VB surface, configured at approximately 123"–137" diagonal. Built for conference rooms, lecture halls, boardrooms, and training facilities, it combines a rigid 1.5-inch extruded aluminum frame with Draper's Vel-Tex fabric border system for a precise, professional installation.
Product Description
The ShadowBox Clarion is Draper's standard commercial fixed frame screen, engineered for AV integrators and facilities teams who need reliable, repeatable performance across multiple installations. The frame is constructed from 1.5-inch (38 mm) extruded aluminum with a black powder coat finish and mitered corners, giving installed screens a clean edge-to-edge appearance with minimal visual distraction.
The Matt White XT1000VB surface delivers a neutral 1.0 gain with a broad viewing cone, making it the standard choice for controlled-lighting environments such as conference rooms, classrooms, and training centers. The screen material attaches via Draper's snap system, allowing the surface to be field-replaced without removing the frame from the wall — an important consideration for facilities managers planning for long-term maintenance.
ShadowBox Clarion is available in 16:10, HDTV 16:9, and NTSC 4:3 aspect ratios and supports wall mounting as standard. Screens up to 12 feet wide can be flown (suspended from the ceiling) using appropriate rigging hardware. Maximum standard diagonal is 226 inches (16 feet wide); custom widths are available up to 16 feet.
Key Features
- 1.0 Gain Surface — Accurate, neutral image reproduction across the full viewing cone.
- Wide Viewing Angle — Consistent brightness from off-axis seating positions.
- Controlled-Lighting Optimized — Performs best in rooms where ambient light can be dimmed or managed.
- Projector Compatible — Works with standard lumen, laser, and LED projectors.
- Snap Attachment — Screen material attaches via snap system for secure fit and simplified field replacement.

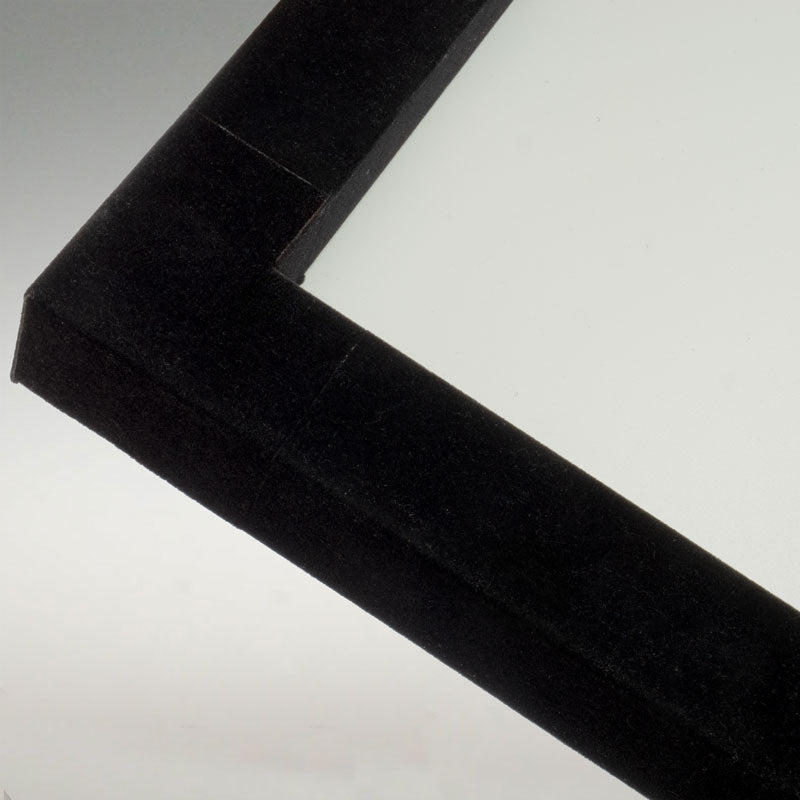

- Mitered Aluminum Frame — 1.5" (38 mm) extruded aluminum frame with black powder coat and Vel-Tex fabric border for clean, professional appearance.
- Commercial-Grade Construction — Designed and warranted for continuous use in commercial AV installations.
- 5-Year Warranty — Draper's standard commercial screen warranty for peace of mind on long-term installations.
Typical Applications

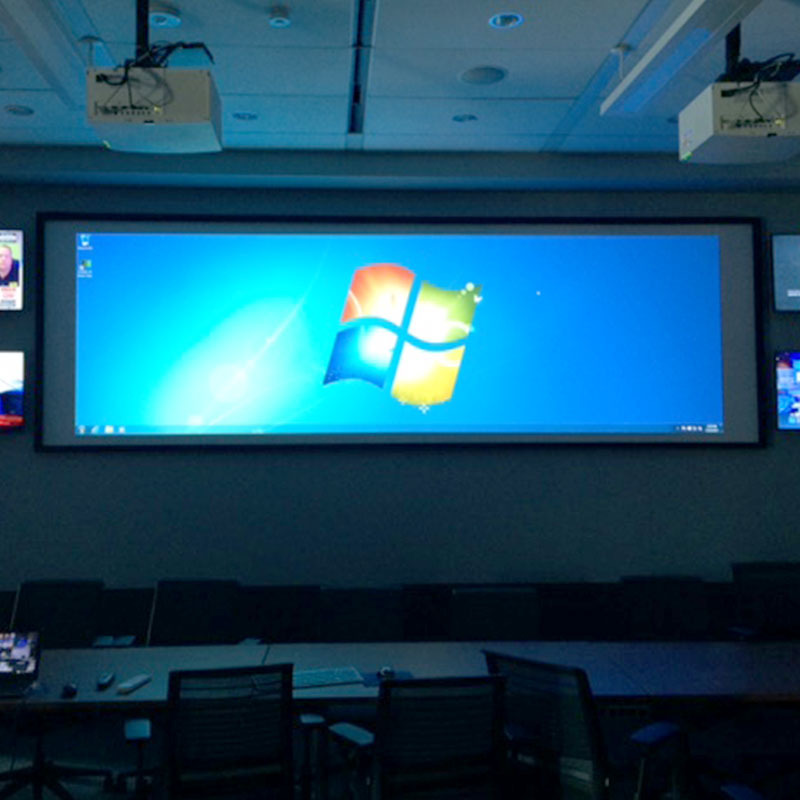

- Corporate Conference Rooms — Fixed frame screens deliver consistent image geometry without the mechanical complexity of motorized or retractable models.

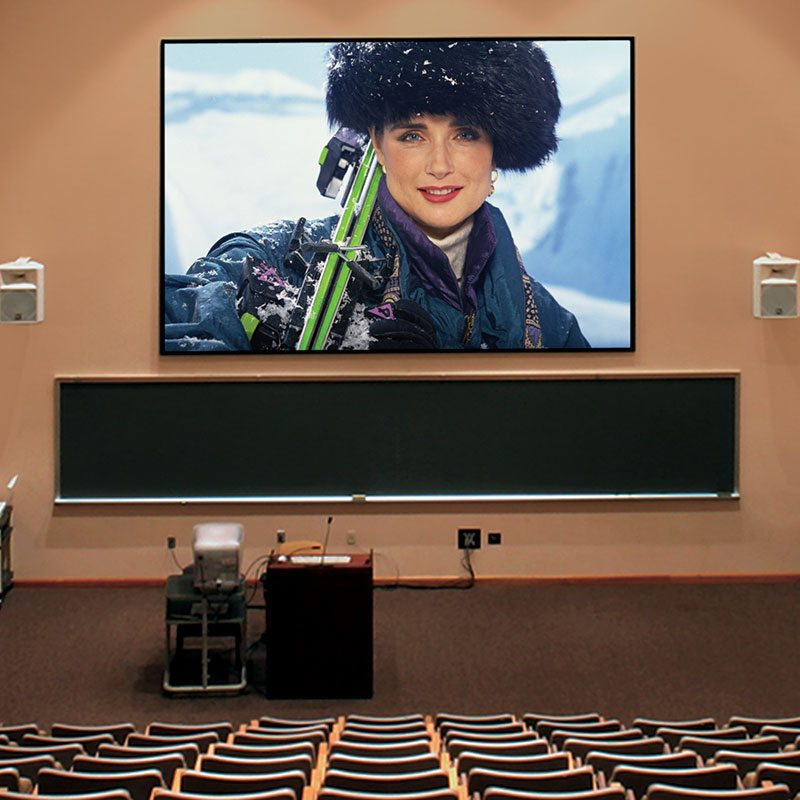

- Lecture Halls and Classrooms — Large diagonal sizes and multiple aspect ratio options support diverse projector configurations in educational settings.
- Training Facilities — Commercial-grade construction and a 5-year warranty make ShadowBox Clarion a reliable choice for high-use training rooms.
- Corporate Auditoriums — Larger configurations support front-row to back-row uniformity in auditorium seating arrangements.
- Houses of Worship — Fixed frame installation provides stable image alignment for consistent service-to-service presentation.
Technical Specifications
| Specification | Value |
|---|---|
| Diagonal Size | approximately 123"–137" (see part number for exact configuration) |
| Formats Available | 16:10 (Widescreen), HDTV 16:9, NTSC 4:3 |
| Frame Width | 1-1/2" (38 mm) extruded aluminum |
| Frame Finish | Black powder coat with Vel-Tex fabric border |
| Surface Material | Matt White XT1000VB |
| Gain | 1.0 |
| Surface Attachment | Snap attachment — field replaceable |
| Mounting | Wall mount standard; flown up to 12' wide |
| Max Standard Width | 16' (488 cm) |
| Warranty | 5 years |
| Part Number | 255029 |
Frequently Asked Questions
Can the screen surface be replaced in the field?
Yes. The ShadowBox Clarion uses a snap attachment system, so the screen material can be removed and replaced without taking the frame down from the wall.
Is this screen compatible with ultra short throw (UST) projectors?
The ShadowBox Clarion is designed for standard throw projectors. For UST applications, consider the Draper Versa Clarion. Contact us to discuss projector compatibility for your specific installation.
What aspect ratios are available?
ShadowBox Clarion is available in 16:10 (Widescreen), HDTV 16:9, and NTSC 4:3. The specific format for this part number is identified by the SKU. Contact us if you need a different format.
Can this screen be ceiling-mounted (flown)?
Screens up to 12 feet wide can be flown using appropriate rigging hardware. Larger screens require wall mounting. Consult Draper's installation documentation for load and rigging requirements.
