Draper Acumen XL V – 198", 16:10 – 155103CD

Product Overview

The Draper Acumen XL V is a surface-mounted, tab-tensioned large-format motorized projection screen built for auditoriums, large lecture halls, and other high-ceiling commercial venues that need a big, flat image on demand. This 198" diagonal model in a 16:10 widescreen format pairs a quiet low-voltage tubular motor with Draper's RF-welded tab-tensioning to hold the viewing surface flat for accurate edge-to-edge image geometry. As a large-venue electric projection screen, it surface-mounts to a wall or ceiling using the included floating brackets, keeping the extruded-aluminum case low-profile against modern interiors. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

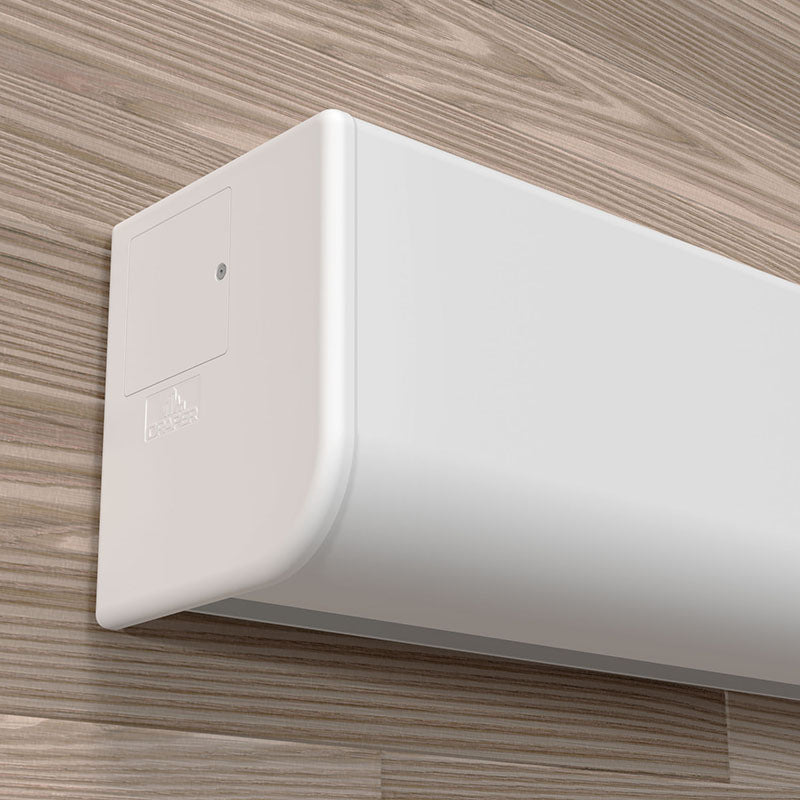

The Draper Acumen XL V is engineered for integrators specifying a surface-mounted motorized screen in venues where image width can reach up to 18' (5.5 m). The tab-tensioned surface uses durable RF-welded tabs that resist separation over years of daily cycling, delivering a flat, wrinkle-free image for large-format front projection. Its streamlined extruded-aluminum case measures 9-1/4" high x 8-1/8" deep and is finished in white powder coat as standard, with black available on request to match ceiling or wall treatments. The screen ships with a built-in low-voltage controller and wall switch, and it integrates with third-party control systems such as Crestron and Control4 for room automation. Both floating mounting brackets and ceiling suspension brackets are included, so the same unit can be wall-mounted or suspended from the structure above. A removable fascia provides direct access to the roller and motor, simplifying long-term service in fixed commercial installations. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top, positioning the picture at the correct height for tiered seating. The full Draper viewing-surface lineup is available, including 8K-ready TecVision surfaces and rear-projection options, so the surface can be matched to the room's ambient light and projector. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for additional sizes, formats, and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Surface-mounted, tab-tensioned design — Mounts to a wall or ceiling and holds the viewing surface flat for a wrinkle-free image across large image widths.
• RF-welded tabs — Radio-frequency-welded tab construction resists separation and maintains tension through repeated daily cycling.
• Large-format image up to 18' (5.5 m) wide — Sized for auditoriums, worship spaces, and other large commercial venues.
• Low-voltage tubular motor — Ships with a built-in low-voltage controller and wall switch, with quiet operation for occupied rooms.
• Dual mounting hardware included — Floating mounting brackets and ceiling suspension brackets ship in the box for wall or overhead installation.
• Removable fascia — Provides direct access to the roller and motor to simplify service in fixed installations.
• Extruded-aluminum case — Streamlined case in white powder coat as standard, with black available on request.
• Full Draper surface lineup — Compatible with the complete range of Draper viewing surfaces, including 8K-ready TecVision and rear-projection surfaces.
• Control-system compatible — Integrates with third-party automation such as Crestron and Control4.
• UL Listed with Draper warranty — Carries Draper's seven-year warranty (USA and Canada), supplied by Creation Networks as an authorized dealer.

Typical Applications

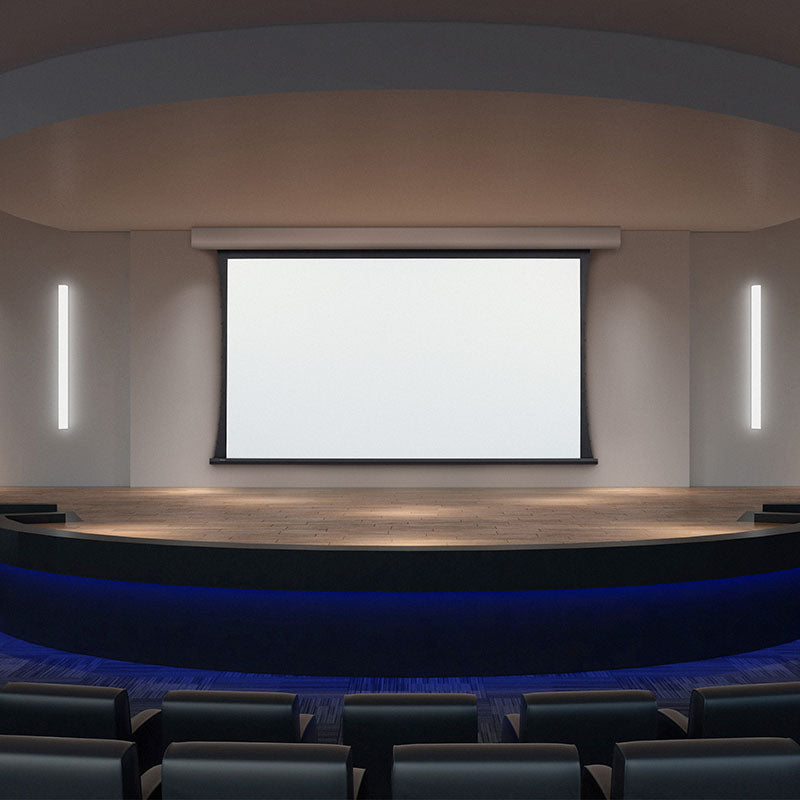

• Auditoriums and performing arts venues requiring a large front-projection image
• Houses of worship with wide sanctuary seating
• Higher-education lecture halls and large training rooms
• Corporate all-hands rooms and commercial meeting spaces
• Government and civic spaces with large-audience presentation needs
• Multi-purpose rooms that switch between presentation and video content

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface availability, and motor/control options with Creation Networks before ordering.

Frequently Asked Questions

Is the Acumen XL V wall-mounted or ceiling-mounted?

It is a surface-mounted screen and ships with both floating wall brackets and ceiling suspension brackets, so the same unit can be installed against a wall or suspended from the structure above. It is not a ceiling-recessed screen.

What is the largest image the Acumen XL V supports?

The Acumen XL V is built for large venues, with maximum image widths up to 18' (5.5 m). This 198" diagonal 16:10 widescreen unit sits within that range; custom sizes are available on request.

Does it integrate with Crestron, Control4, or other control systems?

Yes. The screen ships with a built-in low-voltage controller and wall switch and is compatible with third-party automation systems such as Crestron and Control4 for integrated room control.

Which viewing surface should I choose?

The full Draper viewing-surface lineup is available, including 8K-ready TecVision surfaces for ambient-light and high-contrast environments, plus rear-projection options. Contact us and we will match the surface to your projector and room lighting.

How is the screen serviced after installation?

The fascia is removable, giving direct access to the roller and motor without dismounting the case, which simplifies service and motor replacement in permanent installations.

What projectors and mounts pair with this screen?

It works with any commercial front projector matched to the 198" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Acumen XL V carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
