Draper Acumen XL V – 189", 16:10 – 155102CD

Product Overview

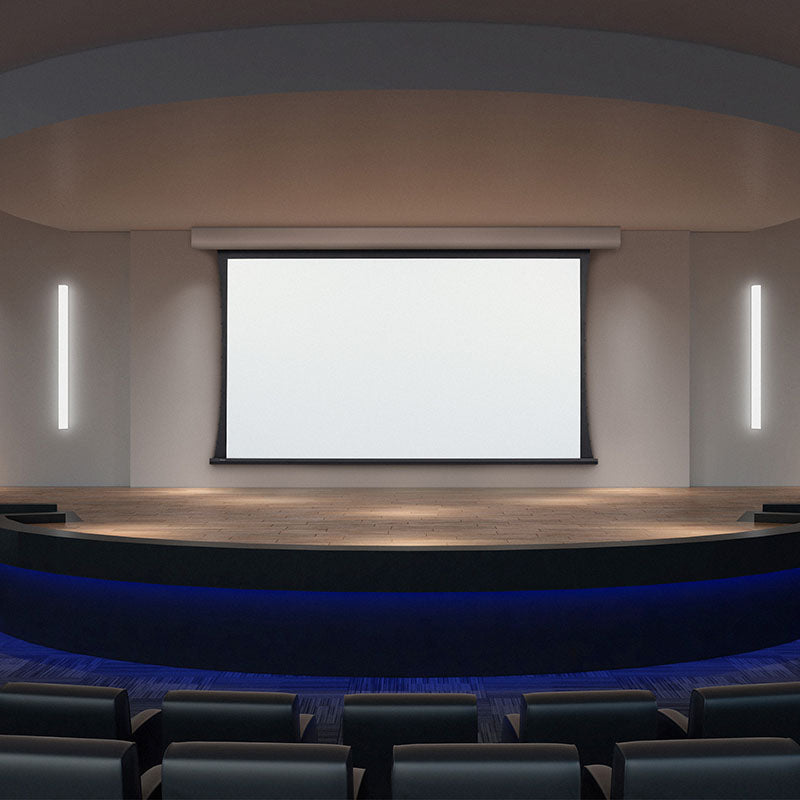

The Draper Acumen XL V is a large-format, surface-mounted, tab-tensioned motorized projection screen built for auditoriums, all-hands rooms, and other large commercial venues. This 189" diagonal 16:10 model mounts to a wall or ceiling and delivers a permanently flat image using RF-welded tabs, making it a capable large-format projection screen where a big, wave-free surface is required. As a Series V screen it supports Draper's full viewing-surface lineup, including award-winning, 8K-ready TecVision, driven by a quiet low-voltage motor. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

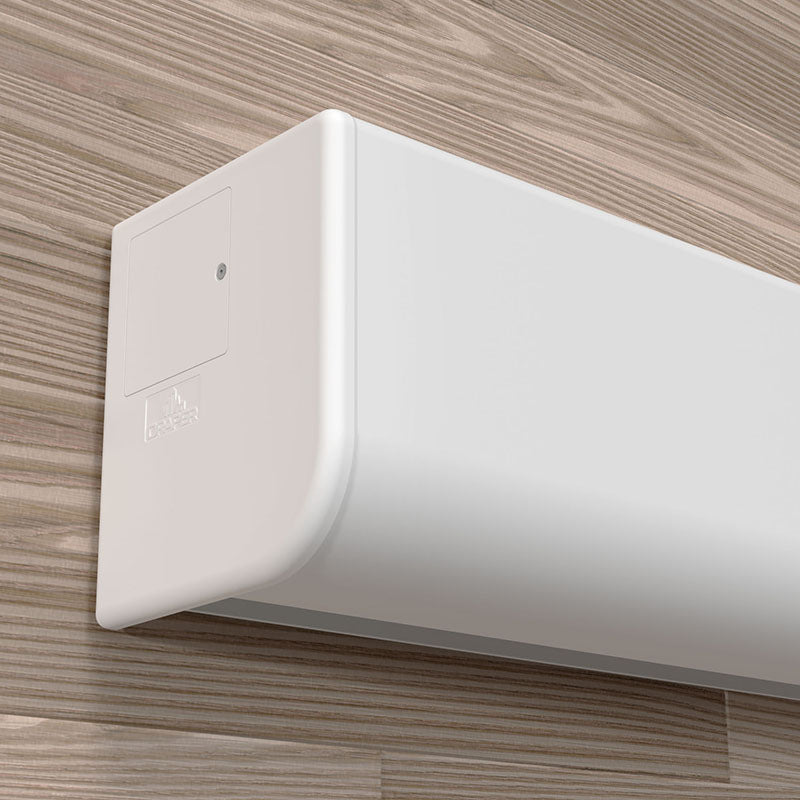

The Draper Acumen XL V large-format projection screen extends the Acumen platform to large-venue image sizes while keeping a surface-mounted installation. Side tab-tensioning with durable RF-welded tabs holds the viewing surface flat and wave-free across a wide image, preserving accurate geometry for detailed content viewed from a distance. The reinforced roller assembly is enclosed in a contoured extruded-aluminum case measuring 9-1/4" high by 8-1/8" deep, finished in white powder coat as standard with black available, and a removable fascia provides access to the roller and motor for service. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area. It ships with a built-in low-voltage controller and wall switch, with an LVC-IV motor option and 110 V or 220 V operation for integration with third-party control systems such as Crestron and Control4. The Acumen XL V accommodates image widths up to 18' (5.5 m), offers rear-projection surfaces, and supports Draper's complete surface range, including 8K-ready TecVision, with a 21:9 format also available. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection. Browse the full Draper projection screen lineup, or view all projection screens for alternate formats. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Large-format image sizes — Accommodates image widths up to 18' (5.5 m) for auditoriums and large-venue projection.
• Tab-tensioned image surface — Side tensioning with RF-welded tabs holds a wide surface flat and wave-free for accurate geometry.
• Surface-mounted installation — Mounts to a wall or ceiling with included floating and ceiling suspension brackets, so no recessed pocket is required.
• Full surface lineup including TecVision — Supports Draper's complete viewing-surface range, including 8K-ready TecVision, plus rear-projection options.
• Reinforced aluminum case — A 9-1/4" x 8-1/8" extruded-aluminum case in white powder coat (black available) with a removable fascia for service.
• Fully framed image with black drop — The image area is framed in black with a standard 12" (30 cm) top drop for flexible mounting height.
• AV control integration — LVC-IV motor option with 110 V or 220 V operation and control paths for third-party systems such as Crestron and Control4.
• Draper seven-year warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer warranty coverage.

Typical Applications

• Auditoriums and large presentation venues
• All-hands rooms and large conference facilities
• Houses of worship using large-format front projection
• Training rooms and multi-purpose rooms in large spaces
• Government and municipal assembly spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface, and motor configuration with Creation Networks before ordering.

Frequently Asked Questions

How large an image does the Acumen XL V support?

The Acumen XL V is Draper's large-venue Acumen model and accommodates image widths up to 18' (5.5 m). This 189" diagonal 16:10 configuration produces a 100" x 160" image area, suited to auditoriums and large assembly spaces.

Why choose a tab-tensioned screen at this size?

At large image widths, tab-tensioning with RF-welded tabs keeps the surface flat and free of waves, which preserves accurate image geometry when the audience is viewing detailed content from a distance.

Does the Acumen XL V require a recessed ceiling pocket?

No. It is a surface-mounted screen that installs onto a wall or ceiling using the included floating and ceiling suspension brackets, so no in-ceiling cavity is required.

What projectors and mounts are compatible?

It works with any commercial front projector matched to its 189" 16:10 format and the throw distance of a large room. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Can the Acumen XL V integrate with an AV control system?

Yes. It ships with a built-in low-voltage controller and wall switch, with an LVC-IV motor option and control paths for third-party automation systems such as Crestron and Control4.

What warranty and support are included?

The Acumen XL V carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
