Draper Acumen XL V – 182 3/8", 21:9 Ultrawide – 155120SCQ

Product Overview

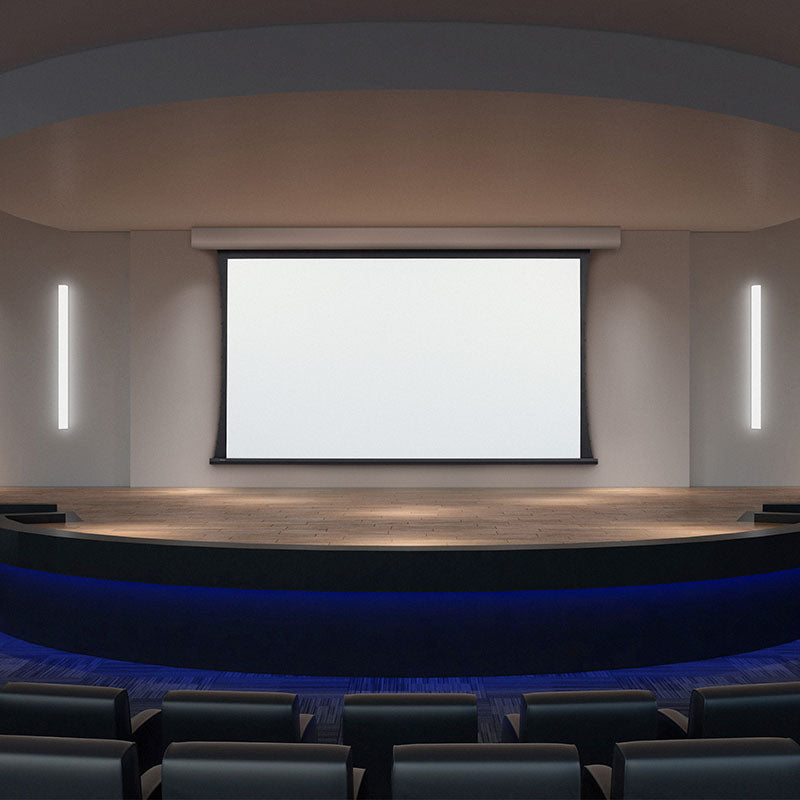

The Draper Acumen XL V is a surface-mounted, tab-tensioned motorized projection screen built for large venues and large-format commercial AV installations. This 182 3/8" diagonal 21:9 Ultrawide model pairs a quiet low-voltage motor with a tab-tensioned viewing surface, making it a strong fit for auditoriums, large boardrooms, and multi-purpose rooms that need a very wide, retractable image. As a 21:9 ultrawide large-format motorized projection screen, it retracts fully into a streamlined aluminum case when not in use. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

The Draper Acumen XL V motorized projection screen is built for integrators specifying a surface-mounted large-format electric screen where a recessed ceiling pocket is not available or not desired. The 21:9 ultrawide format suits data walls, dual-source layouts, and panoramic content in large rooms, and the XL V range supports image widths up to 18' (5.5 m). The screen mounts to a wall or ceiling using the included floating mounting brackets, and ceiling suspension brackets are supplied in the same carton for open-structure installs. The tab-tensioned viewing surface uses RF-welded tabs to hold the image flat and wrinkle-free across very wide spans, which matters for edge-to-edge focus with high-resolution and large-venue commercial projectors. The extruded aluminum case measures 9-1/4" high by 8-1/8" deep with a white powder-coat finish as standard, and black is available on request to match darker ceilings. A quiet low-voltage motor is factory-installed with a built-in controller and wall switch, and the removable fascia gives technicians direct access to the roller and motor for service without dismounting the case. The image area is fully framed in black with a standard 12" black drop at the top. The Acumen XL V accepts the full line of Draper viewing surfaces, including 8K-ready TecVision, and rear-projection surfaces are available for specialized layouts. Pair it with a large-venue unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for additional sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• 21:9 ultrawide large-format image — A very wide 182 3/8" image area suited to panoramic content, data walls, and dual-source layouts in large rooms.
• Tab-tensioned viewing surface — RF-welded tabs hold the surface flat for a wrinkle-free image across wide large-format spans.
• Surface-mounted design — Mounts to a wall or ceiling without a recessed pocket, using the included floating brackets or ceiling suspension brackets.
• Quiet low-voltage motor — A factory-installed quiet motor with built-in controller and wall switch reduces operating noise in occupied venues.

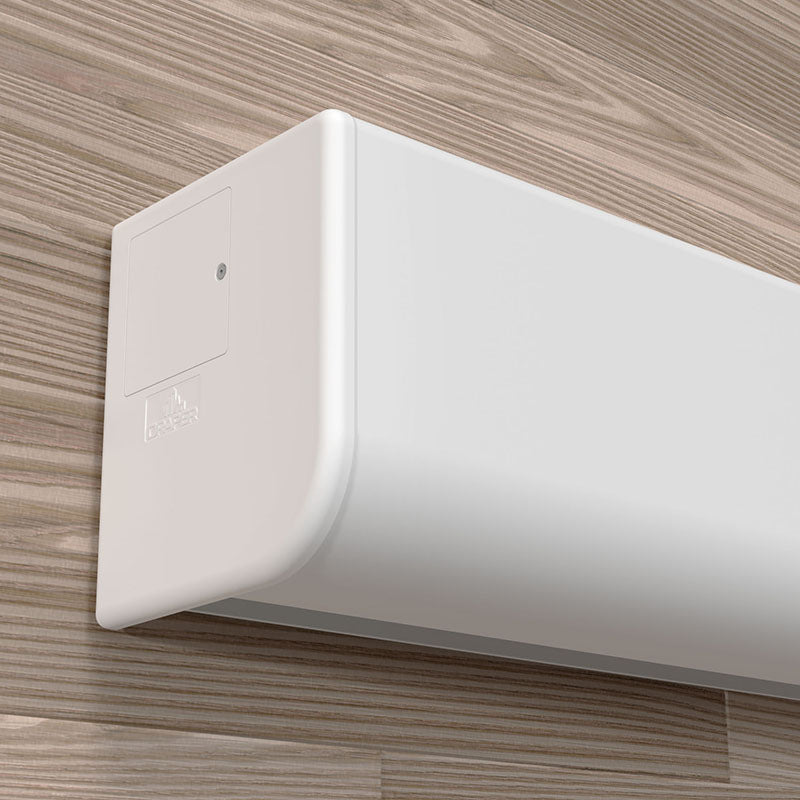

• Large-format aluminum case — The 9-1/4" x 8-1/8" extruded aluminum housing ships in white powder coat as standard, with black available on request.
• 8K-ready surface options — Accepts the full Draper TecVision lineup, including 8K-ready surfaces, plus rear-projection options.
• Removable fascia for service — Technicians can access the roller and motor without dismounting the case, simplifying long-term maintenance.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with Draper's seven-year warranty (USA and Canada).

Typical Applications

• Auditoriums and large presentation venues requiring a very wide image
• Large corporate boardrooms and all-hands rooms with panoramic or dual-source content
• House of worship main rooms using large-format front projection
• Broadcast studios and command spaces using ultrawide layouts
• Multi-purpose rooms where a large screen must stow out of sight between events

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and motor/control options with Creation Networks before ordering.

Frequently Asked Questions

Is the Acumen XL V recessed into the ceiling or surface-mounted?

It is surface-mounted. The Acumen XL V mounts to a wall or ceiling using the included floating mounting brackets, and ceiling suspension brackets are also supplied for open-structure installations. No recessed ceiling pocket is required.

How large an image does the Acumen XL V support?

The Acumen XL V range supports image widths up to 18' (5.5 m), which is why it is used for large venues and large-format installations. This 182 3/8" 21:9 configuration delivers a very wide panoramic image within that range.

What projectors and mounts are compatible with this screen?

The screen works with any commercial or large-venue front projector matched to its 21:9 ultrawide format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How does the quiet motor integrate with a control system?

This model ships with a quiet low-voltage motor, a built-in controller, and a wall switch. It can be tied into most third-party control systems using low-voltage triggers or optional control interfaces. Contact us to confirm integration with your specific control platform.

Can the motor be serviced after installation?

Yes. The fascia is removable, giving technicians direct access to the roller and motor without dismounting the case, which reduces downtime for long-term service in large installations.

What warranty and support are included?

The Acumen XL V carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
