Draper Acumen V – 94", 16:10 – 154201CB

Product Overview

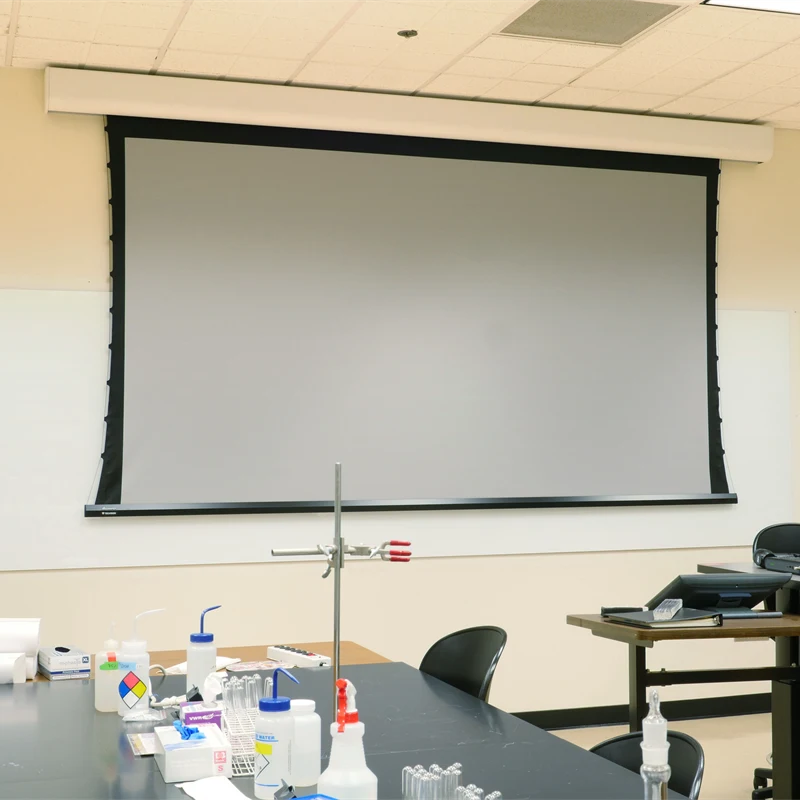

The Draper Acumen V is a surface-mounted, tab-tensioned motorized projection screen built for permanent commercial AV installations. This 94" diagonal 16:10 model pairs a low-voltage motor with a tab-tensioned viewing surface, making it a clean fit for conference rooms, huddle rooms, and training rooms that display computer and presentation content in the native 16:10 aspect. As a 16:10 tab-tensioned motorized projection screen, it retracts fully into a streamlined aluminum case when not in use. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

The Draper Acumen V motorized projection screen is built for integrators specifying a surface-mounted electric screen where a recessed ceiling pocket is not available or not desired. The 94" 16:10 format matches the native output of many laptops, WUXGA projectors, and presentation sources, making it well suited to data-heavy conference and training environments. The screen mounts to a wall or ceiling using the included floating mounting brackets, and ceiling suspension brackets are supplied in the same carton for open-structure installs. The tab-tensioned viewing surface uses RF-welded tabs to hold the image flat and wrinkle-free across the full width, which matters for edge-to-edge focus with high-resolution commercial projectors. The extruded aluminum case measures 7-1/8" high by 5-7/8" deep with a white powder-coat finish as standard, and black is available on request to match darker ceilings. A low-voltage motor is factory-installed with a built-in controller and wall switch, and the removable fascia gives technicians direct access to the roller and motor for service without dismounting the case. The image area is fully framed in black with a standard 12" black drop at the top. The Acumen V accepts the full line of Draper viewing surfaces, including TecVision, and rear-projection surfaces are available for specialized layouts. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for additional sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Native 16:10 format — Matches WUXGA projectors and laptop output for data and presentation content without letterboxing.
• Tab-tensioned viewing surface — RF-welded tabs hold the surface flat for a wrinkle-free image across the full width.
• Surface-mounted design — Mounts to a wall or ceiling without a recessed pocket, using the included floating brackets or ceiling suspension brackets.
• Low-voltage motor and control — A factory-installed low-voltage motor ships with a built-in controller and wall switch for straightforward operation.

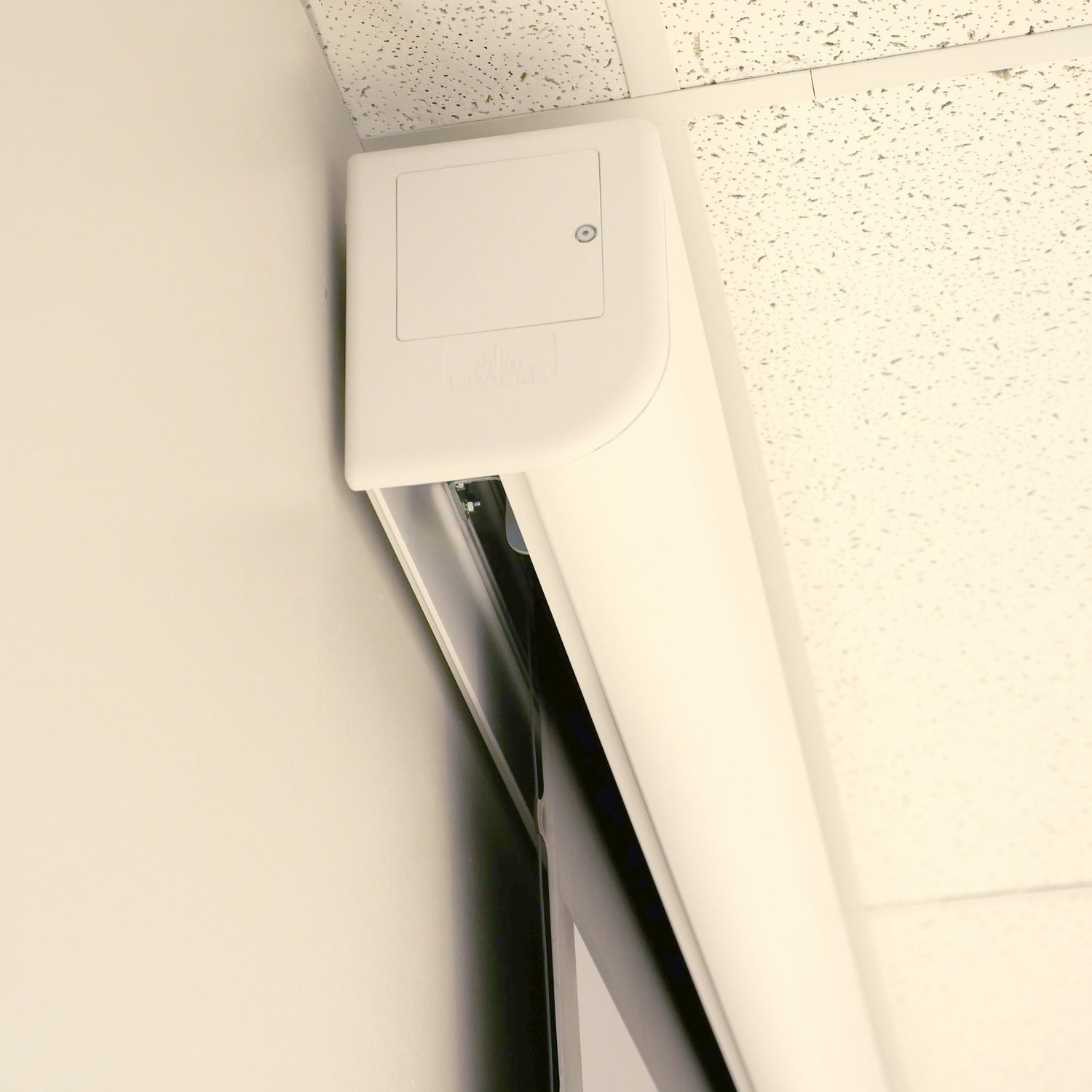

• Streamlined aluminum case — The 7-1/8" x 5-7/8" extruded aluminum housing ships in white powder coat as standard, with black available on request.
• Removable fascia for service — Technicians can access the roller and motor without dismounting the case, simplifying long-term maintenance.
• Wide surface compatibility — Accepts the full Draper TecVision and standard surface lineup, including rear-projection options.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with Draper's seven-year warranty (USA and Canada).

Typical Applications

• Conference rooms and huddle rooms displaying laptop and presentation content
• Training rooms and commercial meeting spaces with fixed AV systems
• Corporate boardrooms requiring a retractable 16:10 front-projection screen
• Multi-purpose rooms where the screen must stow out of sight between sessions
• Government and higher-education presentation spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and motor/control options with Creation Networks before ordering.

Frequently Asked Questions

Is the Acumen V recessed into the ceiling or surface-mounted?

It is surface-mounted. The Acumen V mounts to a wall or ceiling using the included floating mounting brackets, and ceiling suspension brackets are also supplied for open-structure installations. No recessed ceiling pocket is required.

Why choose the 16:10 aspect ratio?

16:10 matches the native output of many laptops and WUXGA projectors, so presentation and data content fills the screen without letterboxing. It is a common choice for conference and training rooms driven primarily by computer sources.

What projectors and mounts are compatible with this screen?

The screen works with any commercial front projector matched to its 94" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How does the motor integrate with a control system?

This model ships with a low-voltage motor, a built-in controller, and a wall switch. It can be tied into most third-party control systems using low-voltage triggers or optional control interfaces. A quiet motor option is also available on the Acumen V; contact us to confirm the best configuration.

Can the motor be serviced after installation?

Yes. The fascia is removable, giving technicians direct access to the roller and motor without dismounting the case, which reduces downtime for long-term service.

What warranty and support are included?

The Acumen V carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
