Draper Acumen V – 123", 16:10 – 154204CD

Product Overview

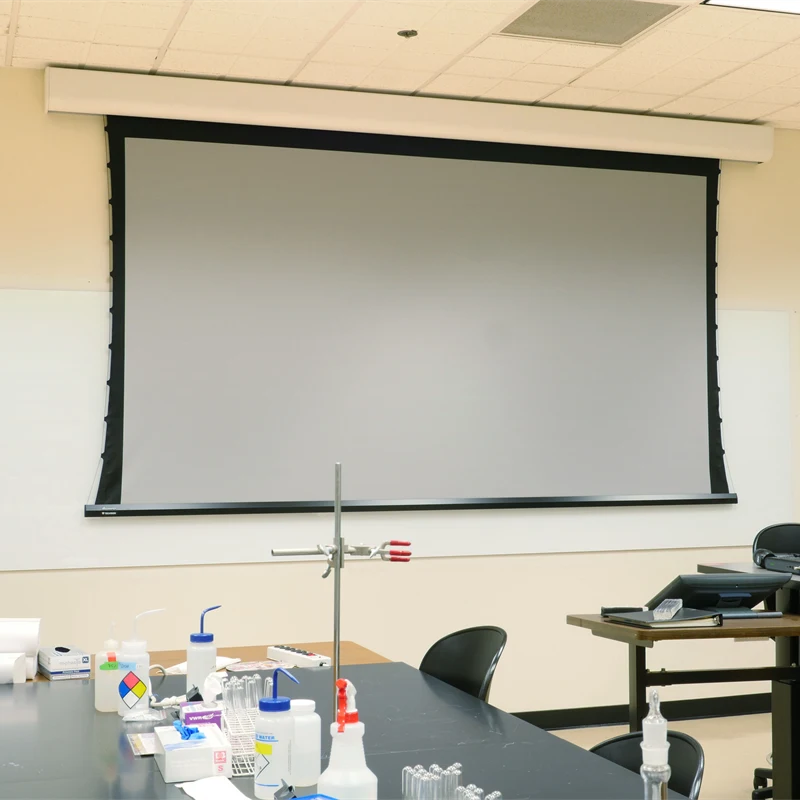

The Draper Acumen V is a surface-mounted, tab-tensioned motorized projection screen built for permanent commercial AV installations that need a flat, retractable image on demand. This 123" diagonal 16:10 model pairs an elegantly contoured extruded-aluminum case with RF-welded tab tensioning, making it a clean fit for larger boardrooms, training rooms, and multi-purpose spaces that display widescreen data and video. As a surface-mounted electric screen, it installs on either wall or ceiling using the included floating brackets and ceiling suspension brackets, with a removable fascia for straightforward service access. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

The Draper Acumen V 123" tab-tensioned motorized screen is engineered for integrators specifying a permanent electric screen with a consistently flat viewing surface for larger rooms. Tab tensioning with RF-welded tabs holds the surface taut across its full width, eliminating the waves and curl common to free-hanging screens and keeping projected geometry accurate edge to edge. The streamlined extruded-aluminum case measures 7-1/8" high by 5-7/8" deep and ships in a white powder-coat finish as standard, with black available on request to match finished commercial interiors. This unit uses Draper's standard low-voltage motor, a 4-wire motor mounted inside the roller that is instantly reversible and lifetime-lubricated for reliable, low-maintenance operation, and is configured for 220 V AC service. A low-voltage controller and wall switch are built in as standard, and the screen integrates with third-party control systems including Control4 and Crestron for automated AV control. The image area is fully framed in black with a standard 12" black drop at the top to position the image at the correct height, and the Acumen V accepts the full line of Draper viewing surfaces, including TecVision, so the surface can be matched to your projector and ambient-light conditions. In this 123" 16:10 configuration the viewable image area measures 65" x 104", near the model's 10' (305 cm) maximum image width for a large widescreen deployment. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup, or the broader projection screens range, for alternate sizes, formats, and surfaces. Contact Creation Networks at creationnetworks.net for surface selection, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — RF-welded tabs hold the surface flat across its full width for accurate, wrinkle-free projected geometry.
• Surface-mounted installation — Mounts to wall or ceiling using the included floating mounting brackets and ceiling suspension brackets for flexible placement.
• Large 123" 16:10 image — A 65" x 104" viewable area suits larger boardrooms and training rooms displaying widescreen data and video.

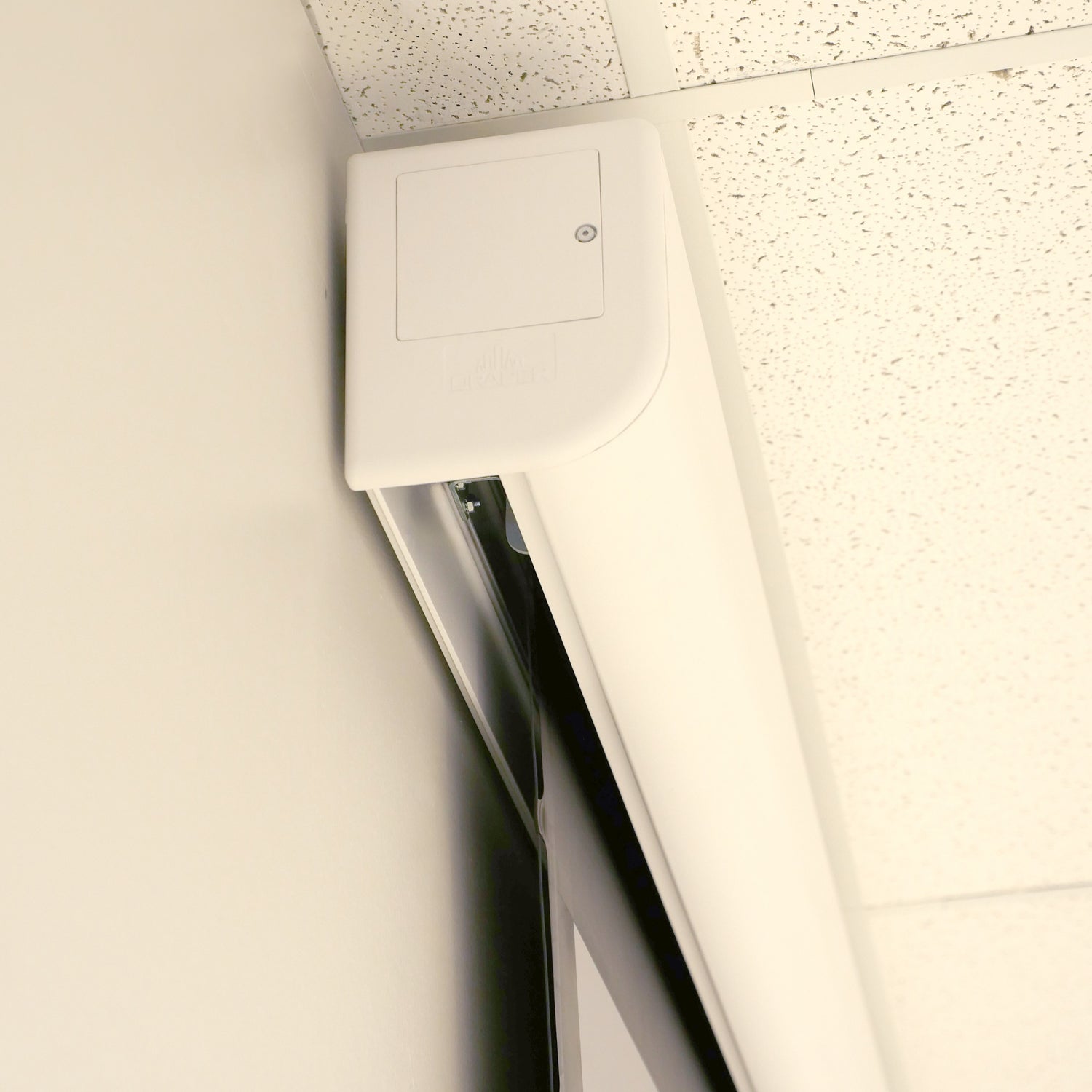

• Contoured extruded-aluminum case — A 7-1/8" x 5-7/8" case in white powder coat (black available) presents a finished look in commercial interiors.
• Built-in low-voltage control — A low-voltage controller and wall switch ship standard, with compatibility for Control4, Crestron, and other third-party systems.
• Removable fascia — The fascia lifts away for direct access to the roller and motor, simplifying long-term service.
• Wide surface selection — Accepts the full Draper viewing-surface line, including TecVision, so the surface can be matched to the room and projector.
• Draper seven-year warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer warranty coverage (USA and Canada).

Typical Applications

• Larger corporate boardrooms and conference rooms using retractable front projection
• Training rooms displaying 16:10 widescreen data and video
• Multi-purpose rooms and all-hands spaces requiring a larger image
• Government and commercial briefing spaces requiring a finished, low-profile screen
• House of worship presentation areas with surface-mounted front projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface, voltage, and size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Acumen V a tab-tensioned screen?

Yes. The Acumen V is a Series V tab-tensioned motorized screen. RF-welded tabs hold the viewing surface flat across its full width, which keeps projected geometry accurate and avoids the waviness of free-hanging surfaces.

How is the Acumen V mounted?

It is a surface-mounted screen that installs on a wall or ceiling. It ships with both floating mounting brackets and ceiling suspension brackets, and the removable fascia provides access to the roller and motor for service.

What is the viewable image size in this configuration?

This 123" diagonal 16:10 unit has a viewable image area of 65" x 104", near the Acumen V's 10' (305 cm) maximum image width. Contact us to confirm exact dimensions for your room and mounting height.

Does the Acumen V integrate with Control4 or Crestron?

Yes. A low-voltage controller and wall switch are built in as standard, and the screen works with third-party control systems including Control4 and Crestron for automated AV integration.

What projectors and mounts are compatible?

The Acumen V works with any commercial front projector matched to its 123" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Acumen V carries Draper's seven-year manufacturer warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
