Draper Acumen V – 113", 16:10 – 154203CDQ

Product Overview

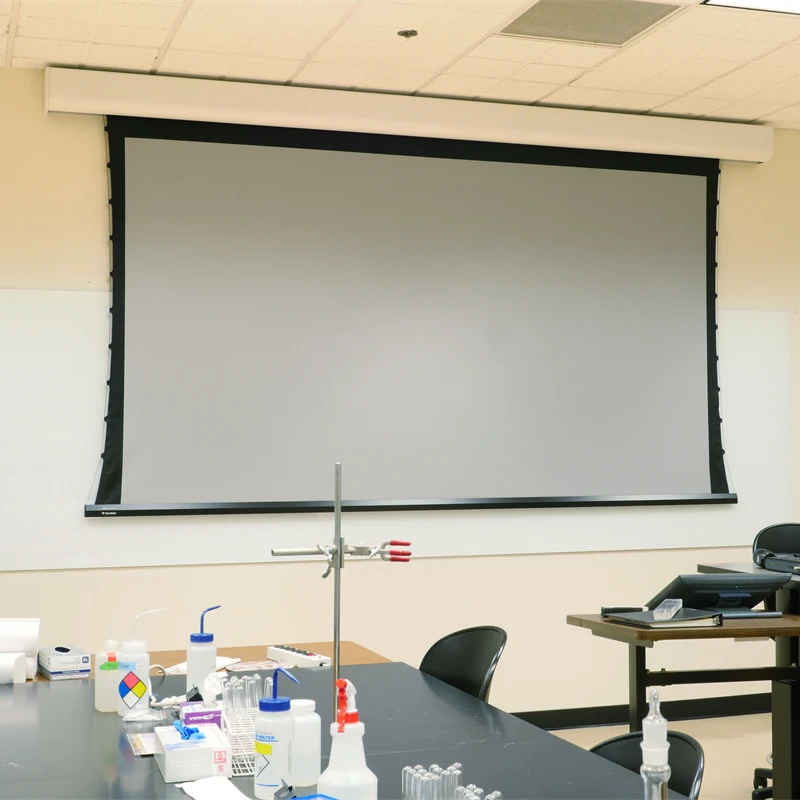

The Draper Acumen V is a surface-mounted, tab-tensioned motorized projection screen built for permanent commercial AV installations. This 113" 16:10 model is configured with a quiet motor and a CineFlex CH1200V viewing surface, making it well suited to conference rooms, boardrooms, and acoustically sensitive meeting spaces. As a 16:10 tab-tensioned electric screen, it holds a flat, wave-free image across the full 96" width for accurate front projection. All units ship through Creation Networks at authorized-dealer pricing with Draper's 7-year warranty.

Product Description

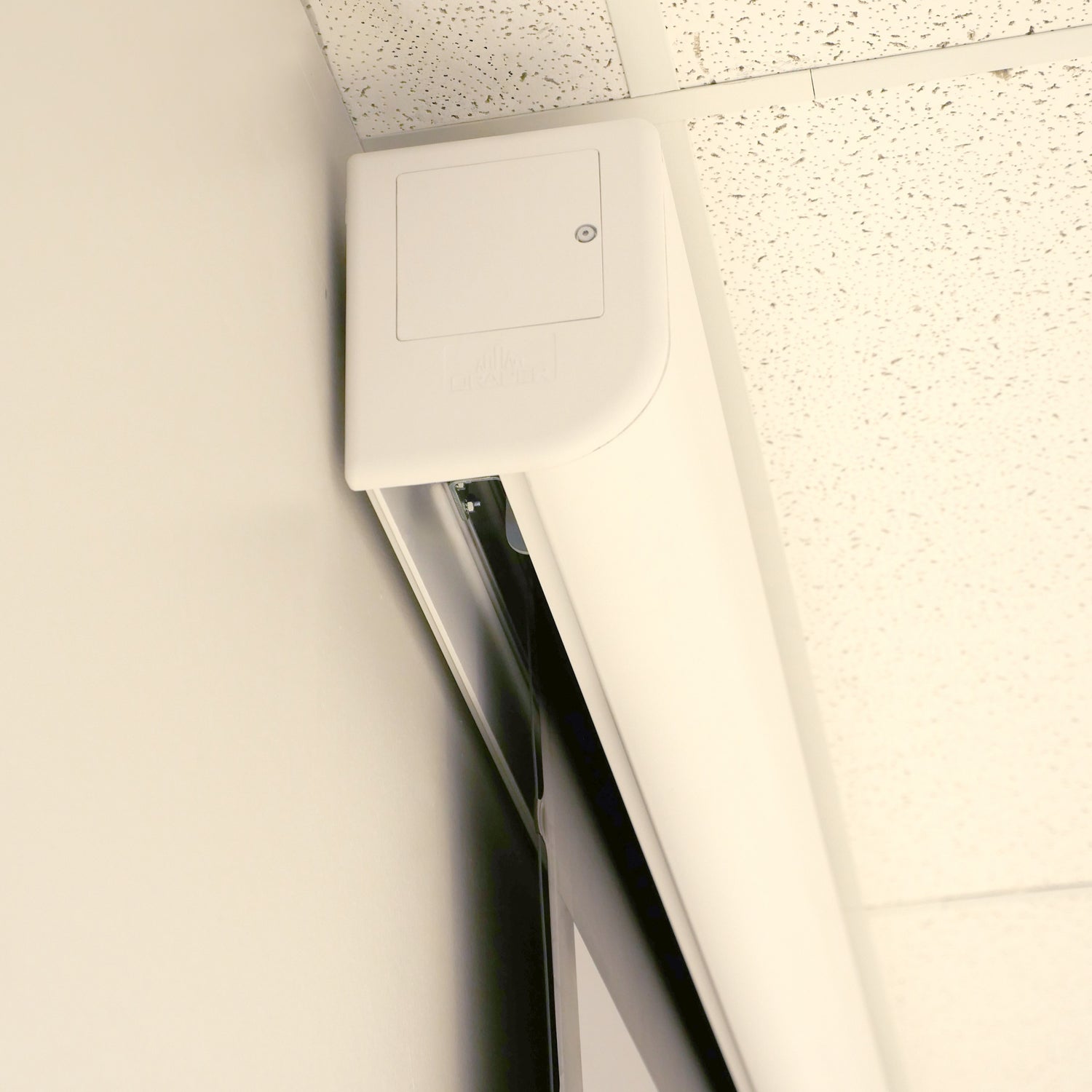

The Draper Acumen V 16:10 projection screen is specified by integrators who need a finished, wall- or ceiling-mounted electric screen without recessing the case into the ceiling. This configuration includes the quiet motor option, reducing operating noise for boardrooms, courtrooms, and rooms where the screen deploys during live audio. Its streamlined extruded-aluminum case measures 7-1/8" high x 5-7/8" deep and is finished in white powder coat (black available on request), so it reads as trim architectural hardware in a modern interior. The tab-tensioned surface uses RF-welded tabs and a side-tab cable system to hold the CineFlex CH1200V surface flat and dimensionally stable for the life of the installation. The image area is fully framed in black with a standard 12" black drop at the top, letting the installer set image height to the room. Both floating mounting brackets and ceiling suspension brackets ship in the box, giving the integrator flexibility to wall-mount or suspend the case. A removable fascia provides direct access to the roller and motor for service without dismounting the screen. The screen ships with a built-in low-voltage controller and wall switch as standard, and accepts an optional LVC-IV low-voltage control module for integration with Crestron, Extron, AMX, or QSC control systems. This unit is configured for 220 V operation. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, formats, and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, configuration support, and lead times.

Key Features

• Surface-mounted, tab-tensioned design — Mounts to wall or ceiling and holds a flat image surface without requiring a recessed ceiling pocket.
• 113" 16:10 widescreen format — Sized for data and video presentation in conference and boardroom environments.
• Quiet motor option — Reduces operating noise for acoustically sensitive rooms where the screen deploys during live audio.
• CineFlex CH1200V surface — Factory-installed viewing surface for controlled-light commercial rooms.
• RF-welded tab tensioning — Welded tabs and a side cable system keep the surface wave-free and dimensionally stable over time.
• Contoured aluminum case — 7-1/8" x 5-7/8" extruded case in white powder coat (black available) for a finished architectural appearance.
• Dual mounting hardware included — Ships with both floating wall brackets and ceiling suspension brackets for install flexibility.
• Control-system ready — Built-in low-voltage controller and wall switch standard, with an optional LVC-IV module for AV control integration.
• Draper 7-year warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer coverage (USA and Canada).

Typical Applications

• Corporate conference rooms and boardrooms presenting widescreen content
• Acoustically sensitive meeting spaces and courtrooms
• Training rooms and commercial meeting spaces
• Government and commercial briefing spaces
• House of worship presentation environments

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What does the quiet motor option provide?

The quiet motor reduces operating noise during screen deployment and retraction, which is useful in boardrooms, courtrooms, and other rooms where the screen moves while people are speaking or audio is playing.

Is the Acumen V ceiling-recessed or surface-mounted?

The Acumen V is a surface-mounted screen. It mounts directly to a wall or ceiling using the included floating brackets or ceiling suspension brackets, so no recessed ceiling pocket is required.

Does this screen integrate with commercial AV control systems?

Yes. It ships with a built-in low-voltage controller and wall switch, and accepts an optional LVC-IV low-voltage control module for integration with Crestron, Extron, AMX, QSC, and similar control platforms.

What voltage does this unit require?

This unit is configured for 220 V operation. Confirm branch-circuit and wiring requirements against local electrical code during installation planning.

What projectors and mounts are compatible?

The Acumen V works with any commercial front projector matched to its 113" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Acumen V carries Draper's 7-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
