Draper Acumen V – 113", 16:10 – 154203CD

Product Overview

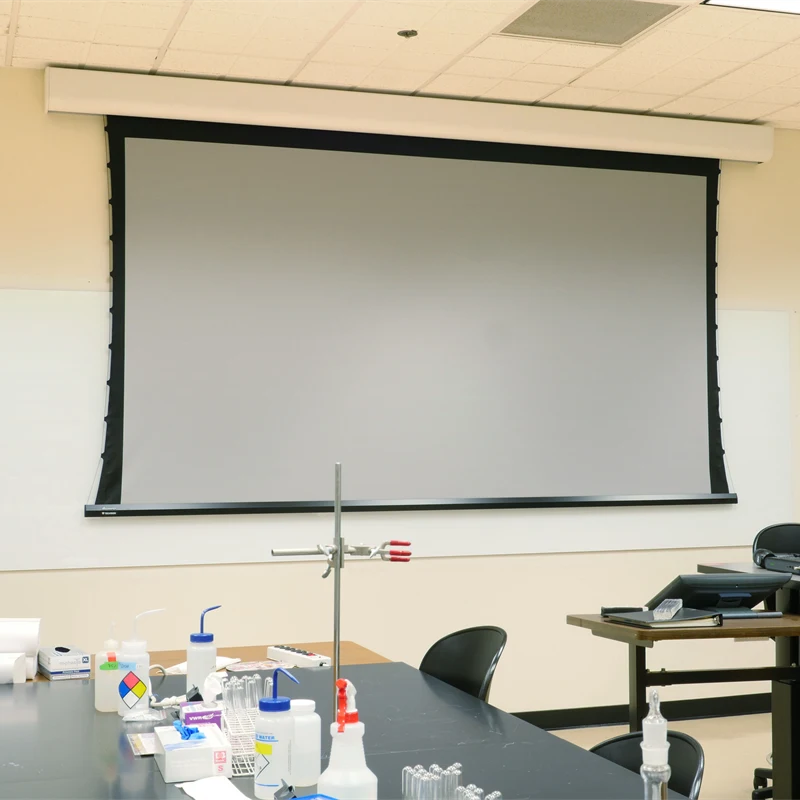

The Draper Acumen V is a surface-mounted, tab-tensioned motorized projection screen engineered for permanent commercial AV installations that need a clean, self-contained case on the wall or above the ceiling. This 113" diagonal (60" x 96") 16:10 model is configured with the CineFlex CH1200V rear-projection surface, making it a fit for boardrooms, conference rooms, and broadcast environments built around rear-projection room designs. As a surface-mounted electric projection screen, it pairs an elegantly contoured aluminum housing with RF-welded tab tensioning for a flat, wrinkle-free image. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

The Draper Acumen V motorized screen is built for integrators specifying a tab-tensioned electric screen where a low-profile, finished case matters as much as image flatness. The streamlined extruded aluminum case measures 7-1/8" high x 5-7/8" deep and ships in a white powder-coat finish as standard, with black available on request. This unit uses the CineFlex CH1200V surface, a neutral-grey rear-projection diffusing material with 1.2 gain and a 30° half-gain angle, suited to rear-projection setups driven by low-to-medium output projectors. The Series V design is tab-tensioned, using RF-welded tabs to hold the viewing surface flat across the full image width, which Draper rates up to 10' (305 cm) for this model. The image area is fully framed in black with a standard 12" black drop at the top of the viewing area, and the fascia is removable for direct access to the roller and motor during service. The screen ships with a built-in low-voltage controller and wall switch, and includes both floating wall-mount brackets and ceiling suspension brackets for flexible installation in commercial ceilings. This configuration is wired for 220 V operation. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned Series V surface — RF-welded tabs hold the viewing surface flat for a wrinkle-free image across the full width.

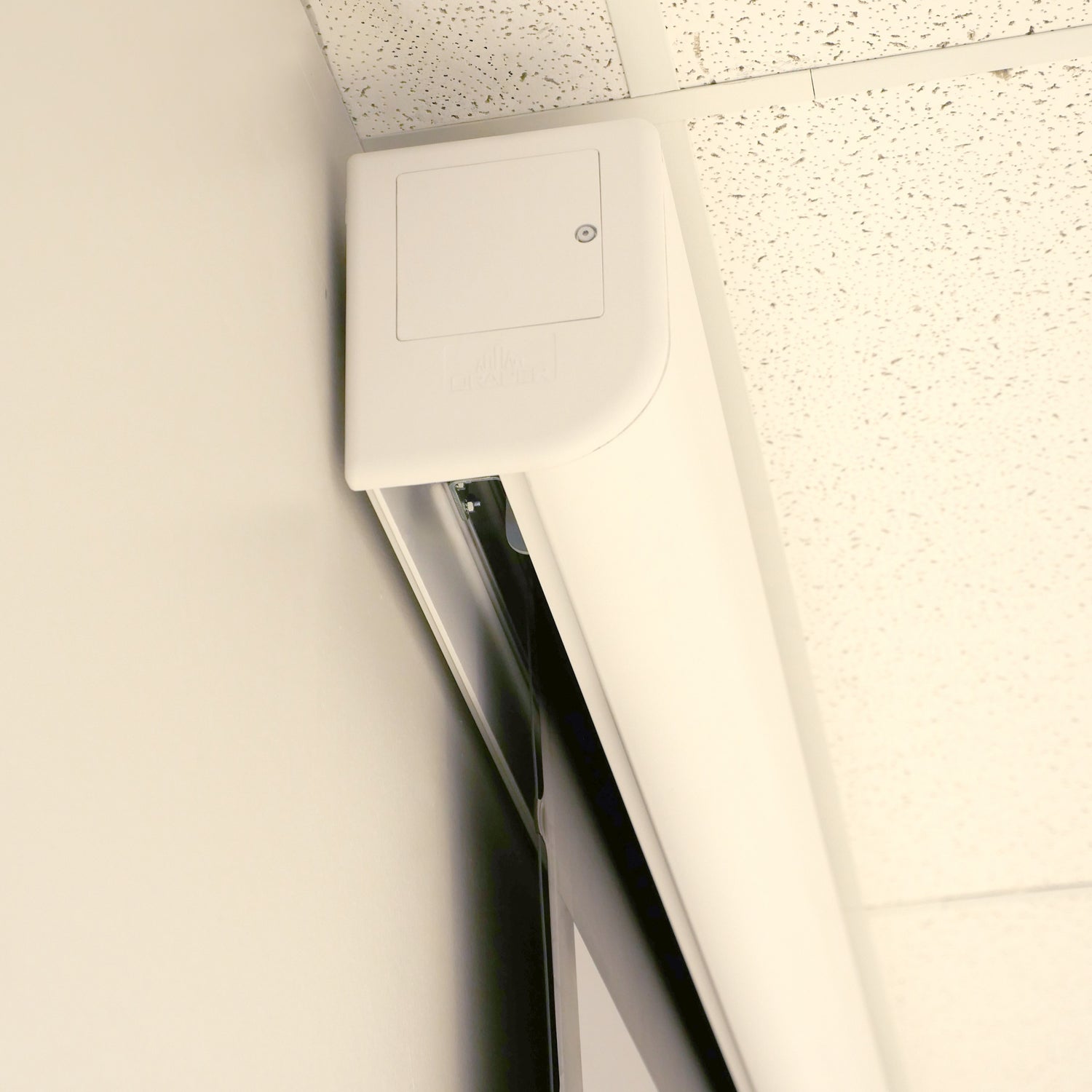

• Surface-mounted contoured case — A 7-1/8" x 5-7/8" extruded aluminum housing in white powder-coat mounts cleanly on the wall or above the ceiling.
• CineFlex CH1200V rear-projection surface — A neutral-grey diffusing surface with 1.2 gain and a 30° half-gain angle for rear-projection room designs.
• Removable fascia — The case fascia detaches for direct access to the roller and motor, simplifying long-term service.
• Dual mounting hardware included — Ships with both floating wall brackets and ceiling suspension brackets for flexible commercial installation.
• Built-in low-voltage control — Includes an integrated low-voltage controller and wall switch, with additional control options available.
• Maximum image width up to 10' — Draper rates this model for image widths up to 10' (305 cm).
• UL Listed with Draper warranty — Carries UL Listing and Draper's seven-year warranty, supplied by Creation Networks as an authorized dealer.

Typical Applications

• Corporate boardrooms and conference rooms using rear projection
• Broadcast studios and production spaces with rear-projection sets
• Commercial meeting spaces requiring a finished, surface-mounted screen
• Government and briefing spaces with permanent motorized screens
• Auditoriums and training rooms with fixed front-of-room projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Acumen V a surface-mounted or ceiling-recessed screen?

The Acumen V is a surface-mounted electric screen. Its contoured aluminum case installs on the wall or above the ceiling using the included floating wall brackets or ceiling suspension brackets. For a fully recessed ceiling installation, Draper's Access line is the recessed equivalent.

What surface is this unit configured with?

This model ships with the CineFlex CH1200V surface, a neutral-grey rear-projection diffusing material with 1.2 gain and a 30° half-gain angle. It is intended for rear-projection room designs using low-to-medium output projectors.

What projectors and mounts are compatible with the Acumen V?

The screen works with commercial projectors matched to its 113" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the screen controlled?

It ships with a built-in low-voltage controller and wall switch as standard. Additional control options are available for integration with AV control systems and automation.

How is the Acumen V serviced after installation?

The case fascia is removable, giving direct access to the roller and motor without dismounting the case. This simplifies motor service and surface inspection in permanent installations.

What warranty and support are included?

The Acumen V carries Draper's seven-year warranty (USA and Canada) and is UL Listed, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
