Draper Acumen V – 109", 16:10 – 154202CDQ

Product Overview

The Draper Acumen V is a surface-mounted, tab-tensioned motorized projection screen built for permanent commercial AV installations. This 109" diagonal model in 16:10 format is a 109" 16:10 motorized projection screen sized for data, presentation, and collaboration content in conference rooms, boardrooms, and training spaces. Its RF-welded tab-tensioning holds the surface flat for an even, wrinkle-free image, while a quiet low-voltage motor and streamlined aluminum case keep the installation discreet. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

The Draper Acumen V tab-tensioned projection screen is engineered for integrators specifying a durable, low-profile electric screen for daily commercial use. A lateral tab-guide cable system with RF-welded tabs maintains even tension across the full image width, keeping the 16:10 picture flat for accurate presentation of spreadsheets, CAD, and widescreen content. The screen retracts into a streamlined extruded-aluminum case just 7-1/8" high by 5-7/8" deep, finished in white powder coat (black available on request), so it reads cleanly against a finished ceiling or wall. Because the Acumen V is surface-mounted rather than recessed, it ships with both floating wall brackets and ceiling suspension brackets, giving the installer flexibility to wall- or ceiling-mount the same unit without ordering separate hardware. A removable fascia provides direct access to the roller and motor, simplifying long-term service. The quiet low-voltage tubular motor is instantly reversible and lifetime-lubricated, and it ships with a built-in low-voltage controller and wall switch for straightforward control-system integration. At 109" diagonal it is a strong fit for conference rooms, training rooms, and multi-purpose spaces that need a dependable, quiet motorized screen. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — RF-welded tabs and a lateral tab-guide cable system hold the surface flat across the full width for a wrinkle-free 16:10 image.
• Surface-mounted flexibility — Ships with both floating wall brackets and ceiling suspension brackets, so the same unit can be wall- or ceiling-mounted during installation.
• Streamlined aluminum case — A 7-1/8" high by 5-7/8" deep extruded-aluminum housing with white powder-coat finish (black available) suits finished commercial interiors.
• Quiet low-voltage motor — The instantly reversible, lifetime-lubricated tubular motor runs at 110–120V AC and ships with a built-in low-voltage controller and wall switch.

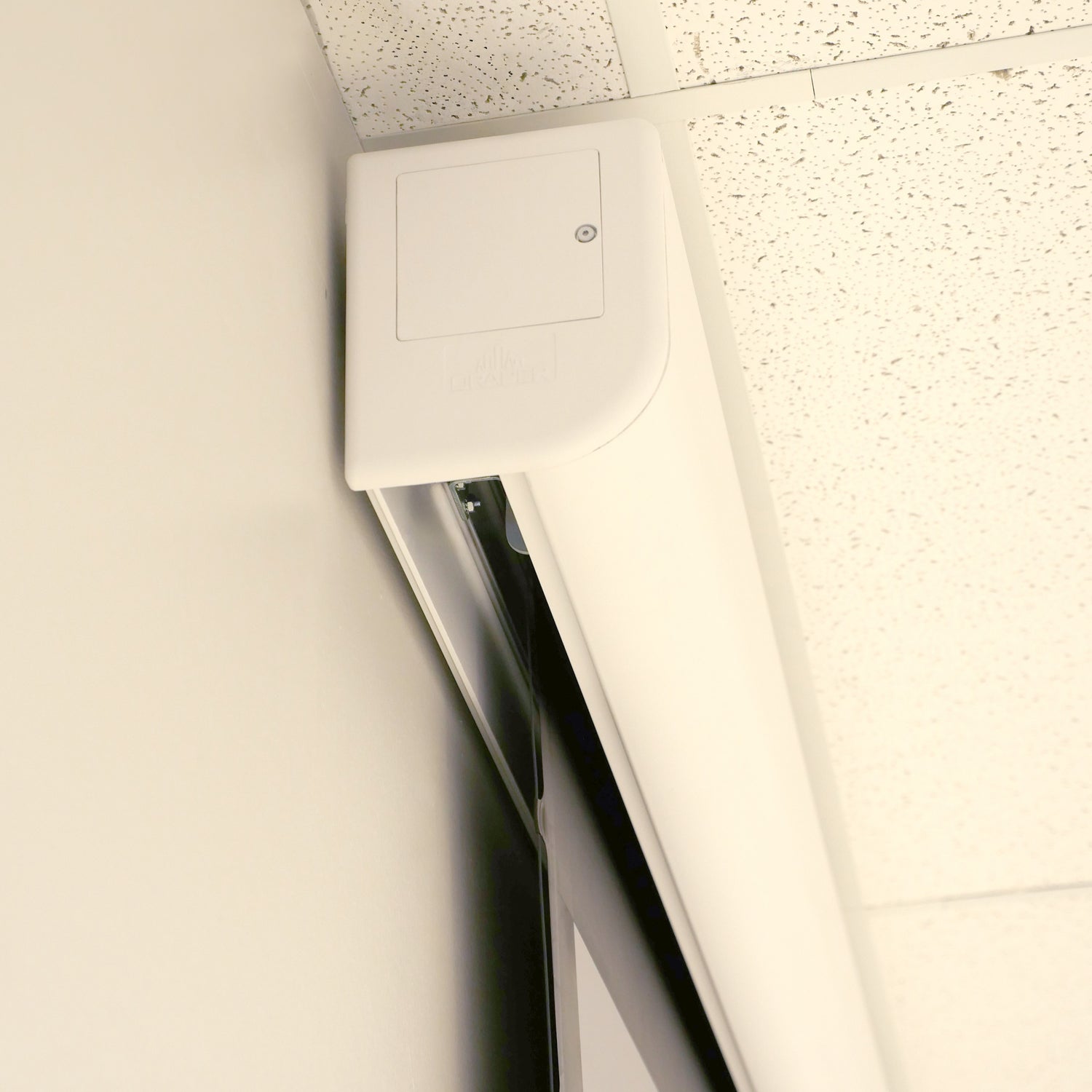

• Removable fascia — The fascia detaches for direct access to the roller and motor, reducing downtime for service in permanent installations.
• Black masking and 12" drop — A fully black-framed image area and a standard 12" (30 cm) black drop support flexible mounting heights and clean image edges.
• UL Listed with 7-year warranty — Supplied by Creation Networks as an authorized dealer with Draper's seven-year warranty (USA and Canada).

Typical Applications

• Corporate conference rooms and boardrooms displaying 16:10 presentation content
• Training rooms and all-hands rooms requiring a durable, quiet motorized screen

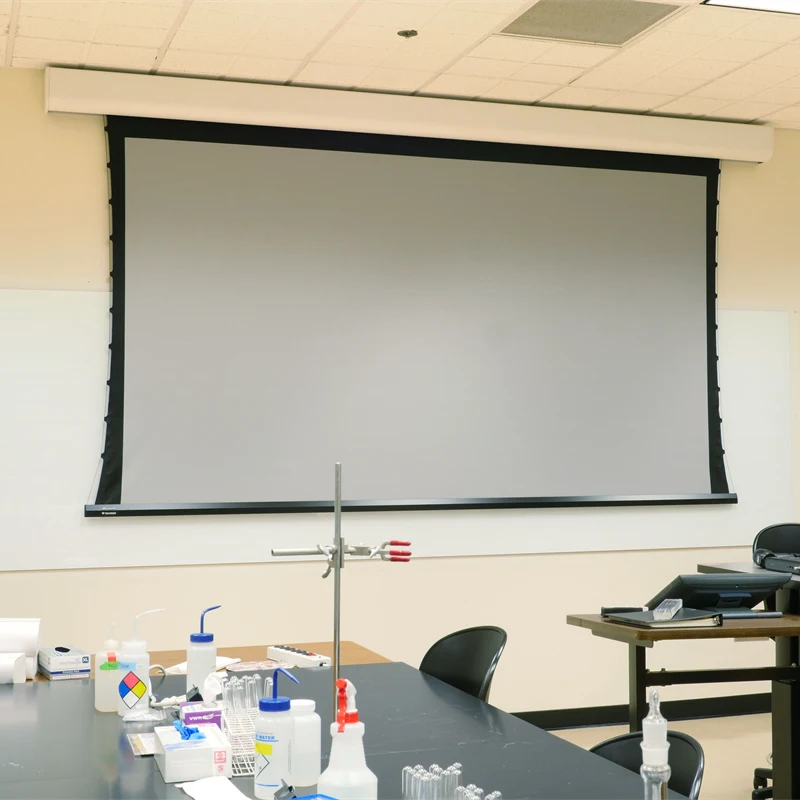

• Higher-education classrooms and lecture spaces
• Multi-purpose rooms where the screen must retract out of sight when not in use
• Commercial meeting spaces standardizing on widescreen data projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, viewing surface, and gain with Creation Networks before ordering.

Frequently Asked Questions

Is the Acumen V a tensioned screen?

Yes. As a Draper Series V screen, the Acumen V is tab-tensioned. RF-welded tabs and a lateral tab-guide cable system hold the surface flat across the full width, which keeps the 16:10 image geometrically accurate for data and presentation content.

How quiet is the motor?

This unit ships with Draper's quiet low-voltage motor option, which reduces operating noise during screen deployment and retraction—useful in boardrooms and other spaces where the screen is raised or lowered mid-meeting. It is instantly reversible and lifetime-lubricated.

Is this screen recessed into the ceiling?

No. The Acumen V is a surface-mounted screen. It installs on a wall or below the ceiling using the included floating brackets and ceiling suspension brackets, and does not require an above-ceiling recessed pocket.

What projectors and mounts are compatible?

The Acumen V works with any commercial front projector matched to its 109" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the screen serviced?

The fascia is removable, giving direct access to the roller and motor without dismounting the case. This simplifies maintenance and motor service in permanent commercial installations.

What warranty and support are included?

The Acumen V is UL Listed and carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
