Draper Acumen Recharge E – 96", 2K/4K Full – 153113EC

Product Overview

The Draper Acumen Recharge E is a surface-mounted, battery-powered rechargeable motorized projection screen that installs without running line-voltage wiring to the screen. This 96" diagonal 2K/4K Full (1.9:1) model uses the OptiView Contrast Grey XH800E surface, making it a practical fit for conference rooms, boardrooms, and training rooms where pulling new power is difficult or costly. As a Series E screen it is non-tensioned and free-hanging, and all control is wireless via an RF remote with optional app, Google Home, and Alexa integration. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

The Draper Acumen Recharge E is built for integrators who need a clean, cable-free motorized screen in retrofits and finished spaces. The streamlined extruded aluminum case measures 7-1/8" high x 5-7/8" deep and ships in a white powder-coat finish as standard, with black available on request, and the fascia is removable for direct service access. Because this is a rechargeable projection screen, the internal battery charges from a standard 110V outlet using the included 13' recharge cable and 2 A USB plug-in, eliminating the need for switched line-voltage at the screen location. As a Series E screen it is non-tensioned and free-hanging, keeping the mechanism simple and quiet. This unit is configured with the OptiView Contrast Grey XH800E surface, a smooth grey surface with 0.8 gain and a full 180° viewing cone that enhances contrast and black levels in rooms with ambient light, recommended for moderate-to-high output projectors. All controls are wireless: the screen ships with an RF remote, and an optional hub adds mobile app, Google Home, and Alexa control for hands-free operation. An optional Power over Ethernet configuration keeps the unit powered continuously while still controlling it over RF. Floating wall brackets and ceiling suspension brackets are included for flexible installation. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Battery-powered, rechargeable operation — Charges from a standard 110V outlet via the included 13' cable, so no switched line-voltage is required at the screen.
• Fully wireless control — Ships with an RF remote; an optional hub adds mobile app, Google Home, and Alexa control for hands-free operation.
• OptiView Contrast Grey XH800E surface — A 0.8-gain grey surface with a full 180° viewing cone that improves contrast and black levels under ambient light.
• Non-tensioned free-hanging Series E — A simple free-hanging surface without tab-tensioning, suited to standard commercial deployments.

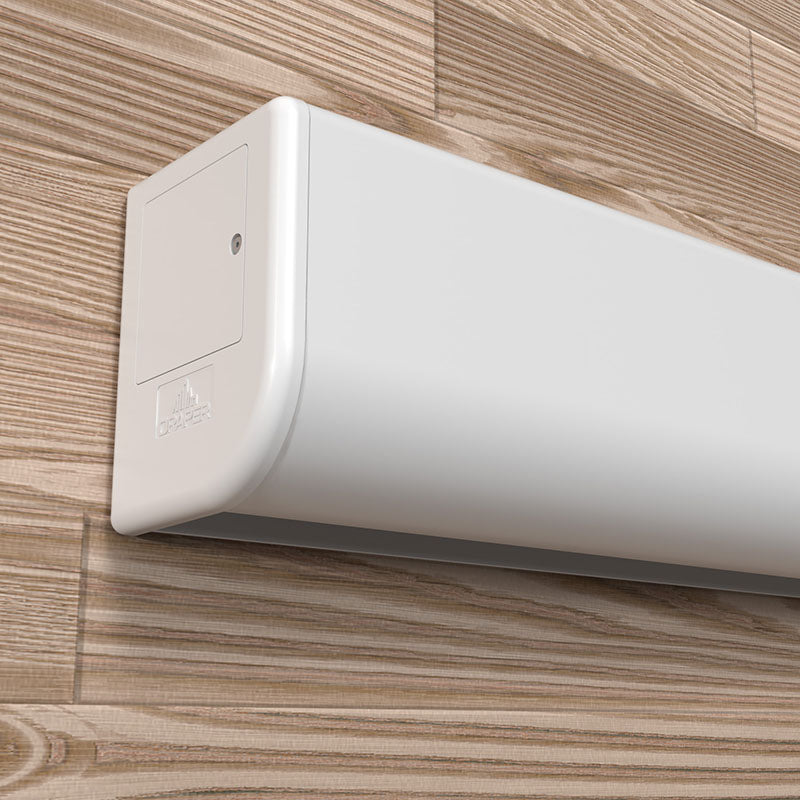

• Surface-mounted contoured case — A 7-1/8" x 5-7/8" extruded aluminum housing in white powder-coat with a removable fascia for service.
• Optional Power over Ethernet — A PoE configuration can keep the unit powered continuously while retaining RF control.
• Dual mounting hardware included — Ships with both floating wall brackets and ceiling suspension brackets for flexible installation.
• Draper seven-year warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer warranty coverage.

Typical Applications

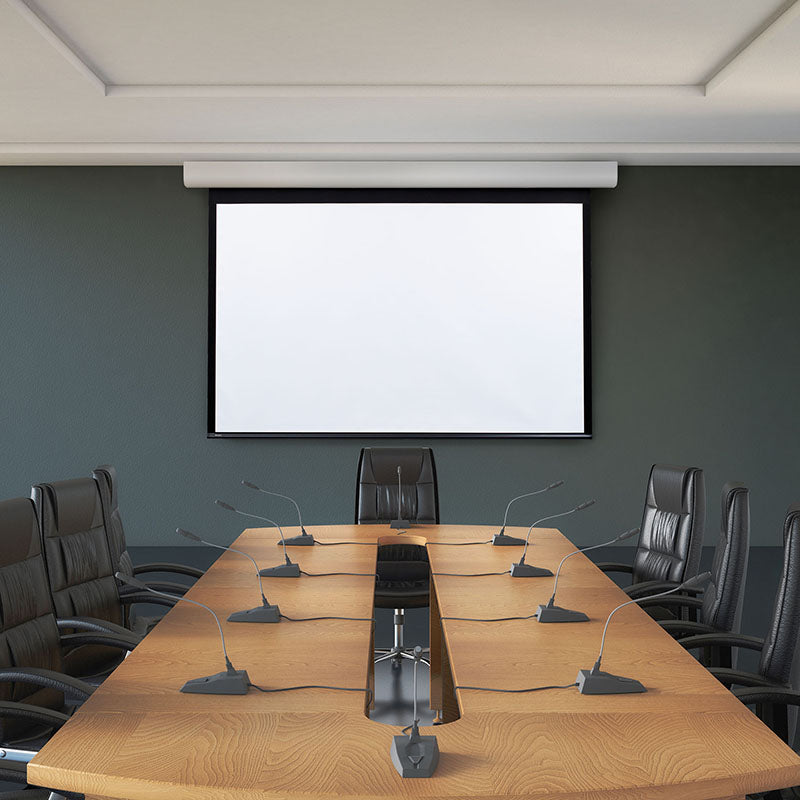

• Conference rooms and boardrooms in retrofits where new wiring is impractical
• Huddle rooms and training rooms needing a clean, cable-free install
• Commercial meeting spaces with ambient light and moderate-output projectors
• Multi-purpose rooms requiring flexible wireless screen control
• Government and corporate spaces standardizing on app or voice control

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How is the Acumen Recharge E powered?

It runs on an internal rechargeable battery that charges from a standard 110V outlet using the included 13' recharge cable and 2 A USB plug-in. This removes the need for switched line-voltage wiring at the screen, which is useful in retrofits. An optional Power over Ethernet configuration can keep it powered continuously.

Is this screen tab-tensioned?

No. The Recharge E is a Series E screen, which is non-tensioned and free-hanging. For a tab-tensioned surface, Draper's Series V models such as the Acumen Recharge V are the tensioned equivalent.

How is the screen controlled?

All controls are wireless. The screen ships with an RF remote, and an optional hub enables control through a mobile app, Google Home, or Alexa for hands-free operation in professional environments.

What projectors and mounts are compatible with this screen?

It works with commercial projectors matched to its 96" 2K/4K Full format and your room's throw distance. The Contrast Grey surface is recommended for moderate-to-high output projectors. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Why choose the Contrast Grey XH800E surface?

The grey surface has 0.8 gain and a full 180° viewing cone, improving contrast and black levels in rooms with ambient light. It is a strong choice for conference rooms and training rooms that are not fully darkened.

What warranty and support are included?

The Acumen Recharge E carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
