Draper Acumen Recharge E – 90", CinemaScope – 153115SA

Product Overview

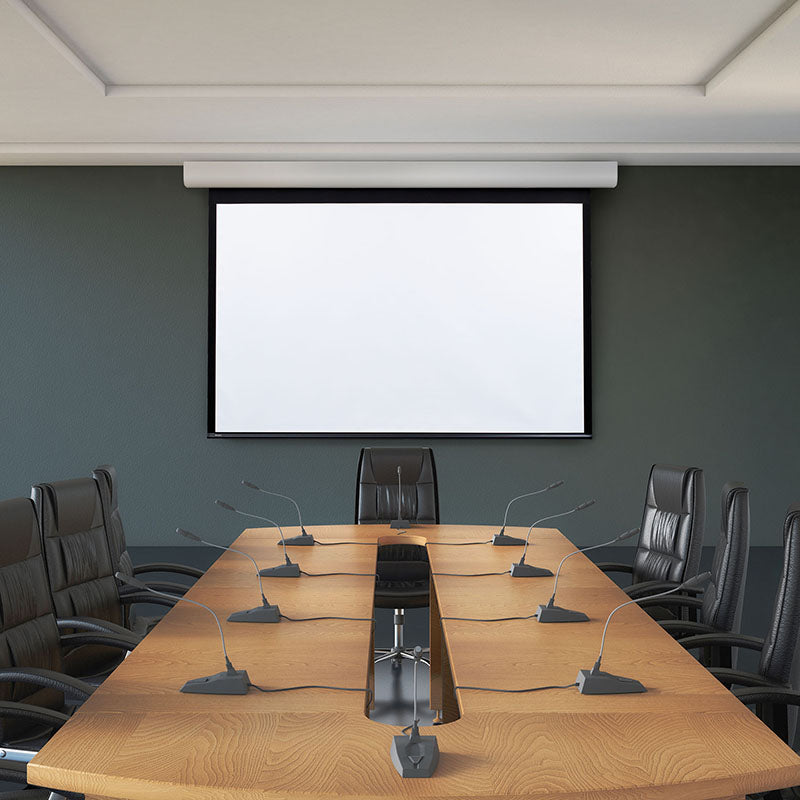

The Draper Acumen Recharge E is a surface-mounted, free-hanging rechargeable motorized projection screen that runs on an internal battery, removing the need for line-voltage wiring at the screen. This 90" diagonal CinemaScope (2.39:1) model installs like a manual screen and is controlled entirely wirelessly, making it a practical fit for smaller conference rooms, huddle rooms, and retrofits where running power is impractical. As a battery-powered electric projection screen, it houses the viewing surface in a contoured extruded-aluminum case that retracts the image fully out of sight. All units ship through Creation Networks at authorized-dealer pricing with Draper's 7-year warranty.

Product Description

The Draper Acumen Recharge E is a non-tensioned, free-hanging electric screen powered by a built-in rechargeable lithium-ion battery, so no electrician or in-wall power run is required at the screen location. This 90" CinemaScope 2.39:1 configuration suits wide-format content in compact meeting rooms and multi-purpose spaces. Installation mirrors a manual screen: attach the included floating mounting brackets or ceiling suspension brackets and hang the case, with no wiring to terminate. The battery charges from a standard 110V outlet using the included 13' (4 m) recharge cable and 2 Amp USB plug-in, and Draper rates the lithium-ion battery for up to 500 raise-and-lower cycles between charges. All control is wireless: an RF remote is included, and an optional hub adds smartphone-app control along with Google Home and Alexa voice control. An optional Power over Ethernet configuration is available to keep the unit powered continuously while still controlling it by RF. A removable front fascia simplifies service access, and a black masking drop above the image area is standard. The Acumen Recharge E accepts Draper's OptiView and ClearSound families of viewing surfaces, including acoustically transparent options for behind-screen loudspeakers. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, formats, and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, control integration, and lead times.

Key Features

• Battery-powered, no wiring required — A built-in rechargeable lithium-ion battery removes the need for line-voltage wiring at the screen, so it installs like a manual screen.
• Up to 500 cycles per charge — Draper rates the lithium-ion battery for up to 500 raise-and-lower cycles between charges, reducing recharge frequency in daily-use rooms.
• Fully wireless control — An RF remote is included; an optional hub adds smartphone-app control plus Google Home and Alexa voice control.
• Charges from a standard outlet — The battery recharges from a 110V outlet using the included 13' (4 m) cable and 2 Amp USB plug-in.
• Optional Power over Ethernet — An optional PoE configuration keeps the unit powered continuously while retaining RF control.
• Surface-mounted, free-hanging design — Mounts to a wall or ceiling and hangs a non-tensioned surface, with included floating and ceiling suspension brackets.
• OptiView and ClearSound surfaces — Available with Draper's OptiView and ClearSound families, including acoustically transparent options for behind-screen audio.
• Removable front fascia — The fascia detaches for straightforward access to the roller for service.
• Draper 7-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Huddle rooms and smaller conference rooms needing a wire-free install
• Retrofit installations where running line voltage to the screen is impractical
• Multi-purpose rooms and training rooms with wireless AV control
• Houses of worship and commercial meeting spaces using wide-format projection
• Leased or historic spaces where in-wall wiring is restricted

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface, and control options with Creation Networks before ordering.

Frequently Asked Questions

Does the Acumen Recharge E really require no wiring?

Correct. It runs on a built-in rechargeable lithium-ion battery, so there is no line-voltage wiring to terminate at the screen. It installs like a manual screen and recharges periodically from a standard 110V outlet using the included cable.

How long does the battery last between charges?

Draper rates the lithium-ion battery for up to 500 raise-and-lower cycles per charge. Actual time between charges depends on how often the screen is used. An optional Power over Ethernet configuration is available if you prefer to keep the unit continuously powered.

How is the screen controlled and integrated into an AV system?

An RF remote is included. Adding the optional hub enables control from a smartphone app as well as Google Home and Alexa. Contact Creation Networks to confirm the best control approach for your AV system.

Is the Acumen Recharge E tensioned?

No. As a Series E screen it is free-hanging and non-tensioned. Draper offers the Acumen Recharge V as a tab-tensioned alternative if maximum surface flatness is required.

What projectors and mounts are compatible?

It works with any commercial front projector matched to its 90" CinemaScope 2.39:1 format and throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Acumen Recharge E carries Draper's 7-year manufacturer warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
