Draper Acumen Recharge E – 90", CinemaScope – 153115EC

Product Overview

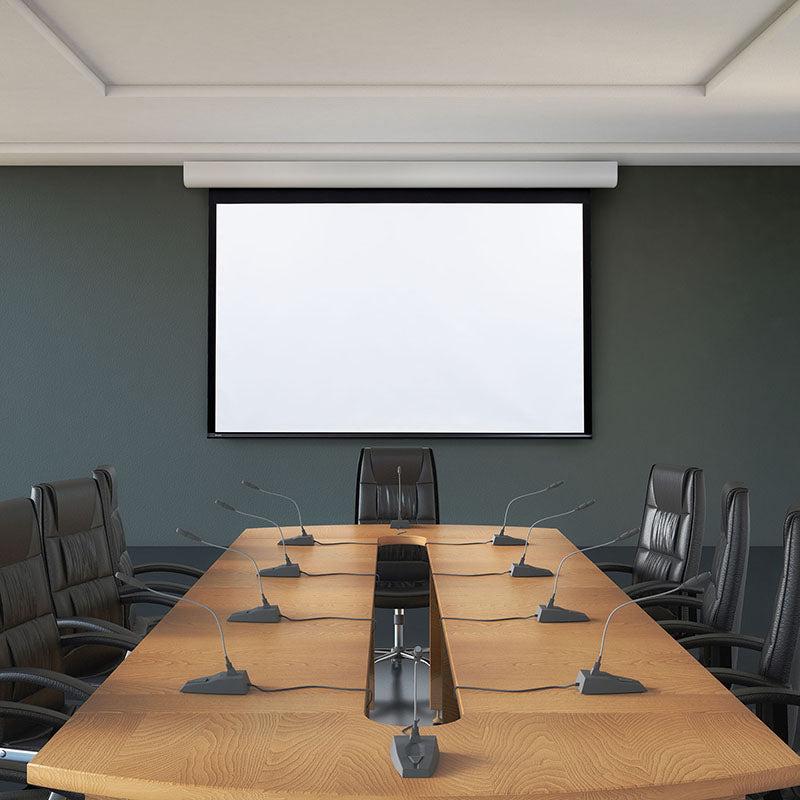

The Draper Acumen Recharge E is a surface-mounted, battery-powered rechargeable motorized projection screen that installs without external power wiring, cutouts, or visible connections. This 90" diagonal CinemaScope (2.39:1) model uses the Contrast Grey XH800E surface and is driven by an integrated rechargeable Li-ion motor, making it a clean fit for commercial rooms where running line voltage to the screen location is difficult or costly. As a Draper Series E screen it is free-hanging (non-tensioned) and mounts to a wall or ceiling using the included floating and ceiling suspension brackets. All units ship through Creation Networks at authorized-dealer pricing with Draper's 7-year warranty.

Product Description

The Draper Acumen Recharge E 90" CinemaScope rechargeable projection screen (Part # 153115EC) removes the need for hard-wired power at the screen, so integrators can deploy a motorized screen in retrofits, historic buildings, and tenant spaces without electrical rough-in. The screen is powered by a built-in rechargeable Li-ion battery rated for up to 500 operating cycles between charges, and it charges from a standard 110 V outlet using the included 13' recharge cable and 2 Amp plug-in adapter with USB. Control is fully wireless: an RF remote control ships in the box, and an optional hub adds control from a mobile app, Google Assistant, and Amazon Alexa. For installations that prefer constant power, the screen is optionally Power over Ethernet (PoE) capable, keeping the battery topped up while still operating over RF. The streamlined extruded-aluminum case measures 7-1/8" high by 5-7/8" deep, is finished in a white powder-coat, and includes a removable fascia for service access. The Contrast Grey XH800E surface carries a 0.8 gain and a 180° viewing cone, using a grey substrate to enhance perceived contrast and black levels in rooms with some ambient light. Floating mounting brackets and ceiling suspension brackets are included as standard. Pair it with a unit from our commercial projectors collection and a mount from our projector mounts and lifts collection. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for throw-distance planning, wireless control integration, and lead times.

Key Features

• Battery-powered, no wiring required — An integrated rechargeable motor eliminates external power wiring, cutouts, and visible connections at the screen location.
• Rechargeable Li-ion battery — Rated for up to 500 operating cycles between charges and recharged from a standard 110 V outlet with the included cable and adapter.
• Wireless RF control — Ships with an RF remote; an optional hub adds mobile app, Google Assistant, and Amazon Alexa control for hands-free operation.
• Optional Power over Ethernet — PoE keeps the screen powered continuously while still operating over RF, if constant power is preferred.
• Surface-mounted, free-hanging design — The Series E case mounts to a wall or ceiling and hangs free without tab-tensioning.
• Contrast Grey XH800E surface — A 0.8-gain grey surface with a 180° viewing cone enhances contrast and black levels in rooms with some ambient light.
• Floating and ceiling suspension brackets included — Standard brackets allow the installer to center the screen and adapt to wall or ceiling mounting.
• Draper 7-year warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer warranty coverage in the USA and Canada.

Typical Applications

• Retrofit conference rooms and boardrooms without power at the screen location
• Historic buildings and tenant spaces where electrical rough-in is restricted
• Huddle rooms, training rooms, and commercial meeting spaces needing a wireless motorized screen
• Multi-purpose rooms and house-of-worship spaces configured for CinemaScope content
• Government and commercial spaces requiring a clean, cable-free installation

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface size limits, and battery/charging details with Creation Networks before ordering.

Frequently Asked Questions

Does the Acumen Recharge E need external power wiring?

No. It is battery-powered and installs without line-voltage wiring, cutouts, or visible connections. You recharge it from a standard 110 V outlet using the included 13' cable and 2 A adapter, or optionally keep it powered continuously with Power over Ethernet.

How long does the battery last between charges?

The integrated rechargeable Li-ion battery is rated for up to 500 operating cycles between charges. Actual runtime depends on screen size and usage frequency; contact Creation Networks for guidance on your deployment.

How is the screen controlled?

Control is wireless. An RF remote is included, and an optional hub adds control from a mobile app, Google Assistant, and Amazon Alexa for hands-free operation in professional environments.

Is the Acumen Recharge E tab-tensioned?

No. It is a Draper Series E screen, which is free-hanging and non-tensioned. If your installation requires a tab-tensioned surface, consider the Series V Acumen Recharge V instead.

How is it mounted?

It is surface-mounted. Floating mounting brackets and ceiling suspension brackets are included, so it can be attached to a wall or suspended from a ceiling and centered regardless of screen size.

What warranty and support are included?

The Acumen Recharge E carries Draper's 7-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
