Draper Acumen Recharge E – 90", CinemaScope – 153115

Product Overview

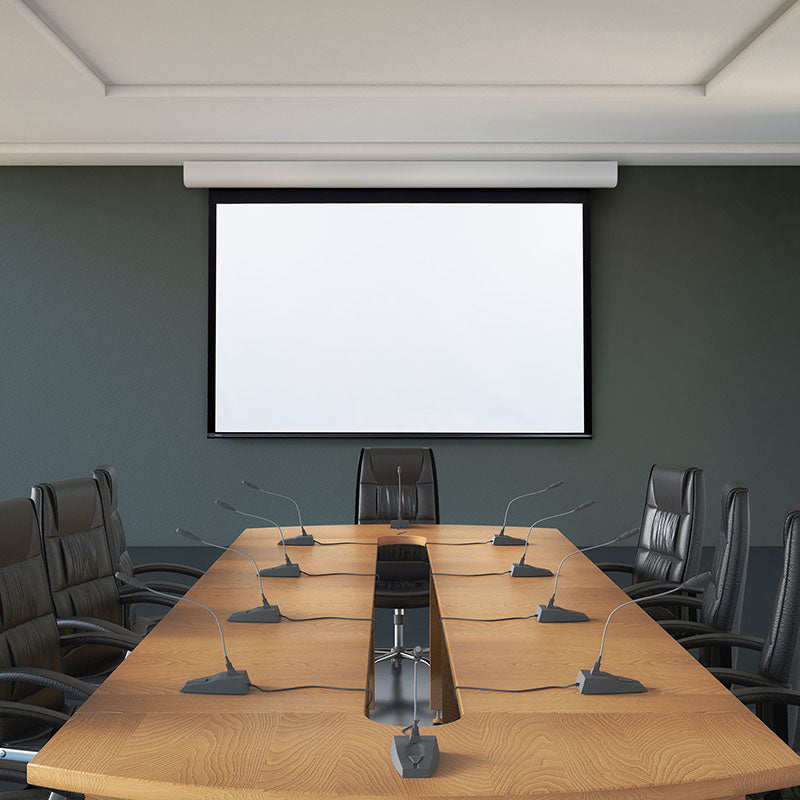

The Draper Acumen Recharge E is a surface-mounted, battery-powered projection screen that removes the need for line-voltage wiring at the screen location. This 90" diagonal CinemaScope (2.39:1) model runs on an integrated rechargeable motor with fully wireless control, making it a practical wireless motorized projection screen for retrofit projects, historic buildings, and commercial spaces where running electrical conduit to the ceiling is impractical. As a Series E screen it uses a free-hanging, non-tensioned surface housed in a contoured extruded-aluminum case. All units ship through Creation Networks at authorized-dealer pricing with Draper's seven-year warranty.

Product Description

The Draper Acumen Recharge E rechargeable projection screen is engineered for integrators who need a motorized screen where no dedicated power circuit is available at the mounting point. The screen operates from an integrated rechargeable battery that charges from a standard 110 V outlet using the included 13' (4 m) recharge cable and 2-amp USB plug, so day-to-day operation requires no permanent wiring. Control is entirely wireless: the unit ships with an RF remote, and an optional hub adds mobile-app, Google Home, and Alexa control for hands-free operation in professional environments. An optional Power over Ethernet configuration keeps the screen continuously powered while retaining RF control. As a Series E model, it uses a free-hanging, non-tensioned viewing surface — a cost-effective choice for general-purpose commercial projection. The roller is enclosed in a streamlined extruded-aluminum case measuring 7-1/8" high by 5-7/8" deep in white powder coat (black available), with floating mounting brackets and ceiling suspension brackets included and a removable fascia for service access. The screen accommodates image widths up to 10' (305 cm) and is available with Draper's OptiView and ClearSound viewing surfaces. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection. Browse the full Draper projection screen lineup, or view all projection screens for alternate formats. Contact Creation Networks at creationnetworks.net for configuration support and lead times.

Key Features

• Battery-powered operation — An integrated rechargeable motor eliminates the need for line-voltage wiring at the screen location.
• No-wiring installation — Charges from any standard 110 V outlet using the included 13' (4 m) recharge cable and 2-amp USB plug.
• Fully wireless control — Ships with an RF remote; an optional hub adds mobile-app, Google Home, and Alexa control.
• Optional Power over Ethernet — Keeps the screen continuously powered while retaining RF control where a data drop is available.
• Free-hanging Series E surface — A non-tensioned viewing surface suited to general-purpose commercial projection.
• Surface-mounted case — Contoured extruded-aluminum case in white powder coat (black available) with floating and ceiling suspension brackets included.
• Removable fascia — Provides quick access to the roller and motor for maintenance.
• Draper seven-year warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer warranty coverage.

Typical Applications

• Retrofit conference rooms and boardrooms without ceiling power
• Historic and heritage buildings where conduit runs are restricted
• Commercial meeting spaces and multi-purpose rooms
• Huddle rooms and training rooms
• Houses of worship using front projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface configuration with Creation Networks before ordering.

Frequently Asked Questions

Does the Acumen Recharge E need to be wired to power?

No. It runs on an integrated rechargeable battery that you top up from any standard 110 V outlet using the included recharge cable, so no permanent line-voltage circuit is required at the screen. An optional Power over Ethernet configuration is available if you prefer continuous power.

How is the screen controlled?

Control is fully wireless. The screen ships with an RF remote, and an optional hub adds control via a mobile app, Google Home, or Alexa for hands-free operation.

Is the Acumen Recharge E tab-tensioned?

No. It is a Series E screen with a free-hanging, non-tensioned surface. If your application requires a tab-tensioned surface, consider a Series V Acumen model.

What projectors and mounts are compatible?

It works with any commercial front projector matched to its 90" CinemaScope format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Where is a rechargeable screen the right choice?

Battery operation is ideal for retrofits, historic buildings, and commercial spaces where running electrical conduit to the mounting point is difficult or costly, letting integrators add a motorized screen without electrical work.

What warranty and support are included?

The Acumen Recharge E carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
