Draper Acumen Recharge E – 118", 2K/4K Full – 153114SA

Product Overview

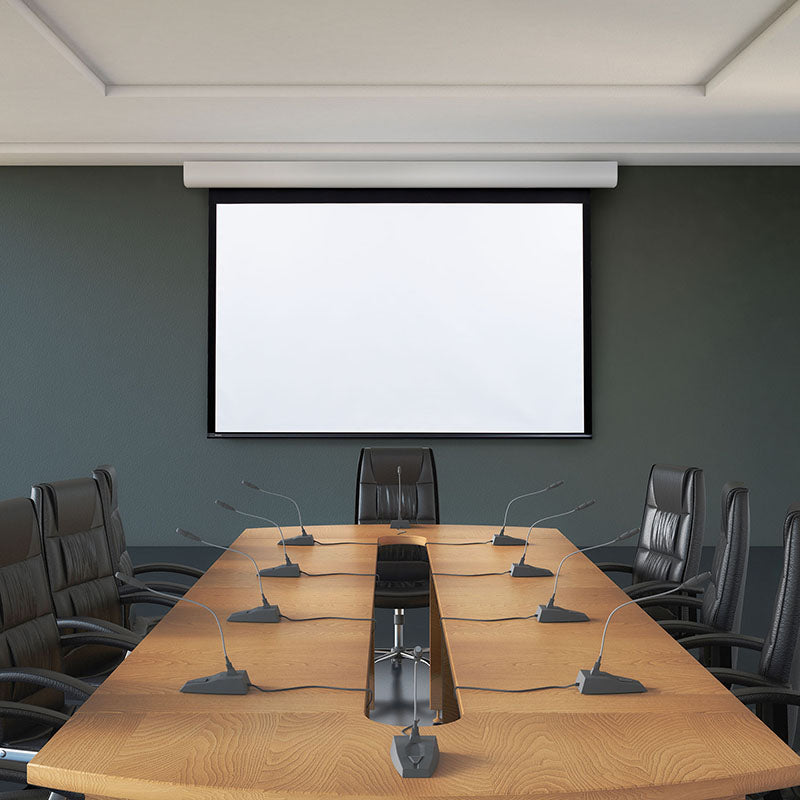

The Draper Acumen Recharge E is a surface-mounted, battery-powered wireless motorized projection screen built for commercial AV installations where running line-voltage wiring to the screen is impractical. This 118" diagonal 2K/4K Full (1.9:1) model pairs the ClearSound White Weave XT900E acoustically transparent surface with an internal rechargeable battery and fully wireless control, making it a clean retrofit for conference rooms, boardrooms, and meeting spaces. As a rechargeable projection screen, it delivers a uniformly bright picture across a 180° viewing cone with 0.9 gain and installs with no permanent power drop required. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Acumen Recharge E battery-powered screen is engineered for integrators who need a motorized screen without hardwired power at the case, simplifying retrofits and tenant-improvement projects. The screen retracts into a streamlined extruded-aluminum case measuring 7-1/8" high by 5-7/8" deep, finished in white powder coat as standard, with a removable fascia for service access. It is a surface-mounted, free-hanging Series E screen, mounted with the included floating brackets and ceiling suspension brackets rather than recessed into the ceiling. Power comes from an internal rechargeable battery topped up through the included 13' recharge cable and 2-amp plug-in with USB from a standard 110 V outlet, and an optional Power over Ethernet configuration can keep the unit powered continuously while still controlling it over RF. All control is wireless: the screen ships with an RF remote, and an optional hub adds mobile-app, Google Home, and Alexa control for hands-free operation and integration into automated meeting rooms. The ClearSound White Weave XT900E surface is an acoustically transparent woven material with over 76,000 microscopic openings per square foot, letting audio from behind-screen loudspeakers pass through with an average insertion loss of only 0.7 dB. The 118" 2K/4K Full 1.9:1 format suits native high-resolution cinema and presentation content in commercial meeting spaces. Pair it with a compatible unit from our commercial projectors and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Battery-powered operation — An internal rechargeable battery removes the need for a permanent line-voltage drop at the screen, simplifying retrofits.
• Fully wireless control — Ships with an RF remote; an optional hub adds mobile-app, Google Home, and Alexa control for hands-free operation.
• Surface-mounted, free-hanging design — Installs with included floating and ceiling suspension brackets, not recessed into the ceiling.
• Acoustically transparent surface — ClearSound White Weave XT900E lets audio from behind-screen loudspeakers pass through with an average insertion loss of only 0.7 dB.
• 0.9 gain, 180° viewing cone — Delivers uniform brightness and accurate color across wide seating layouts in controlled-light rooms.
• 2K/4K Full 1.9:1 format — A 118" diagonal aspect ratio suited to native high-resolution cinema and presentation content.
• Optional Power over Ethernet — A PoE configuration can keep the screen powered continuously while retaining RF control.
• Recharges from a standard outlet — Includes a 13' recharge cable and 2-amp USB plug-in that charges from a 110 V outlet.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms and conference rooms without a power drop at the screen location
• Retrofit and tenant-improvement projects where wiring the case is impractical
• Commercial meeting spaces and huddle rooms using wireless room control
• Multi-purpose rooms and training rooms with behind-screen loudspeakers
• All-hands rooms integrating voice and mobile-app screen control

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, battery run-time, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Does the Acumen Recharge E require hardwired power?

No. It runs on an internal rechargeable battery, so no permanent line-voltage drop is needed at the screen. It recharges from a standard 110 V outlet using the included 13' cable and 2-amp USB plug-in, and an optional Power over Ethernet configuration can keep it powered continuously.

Is this a recessed screen, and is it tensioned?

No. The Acumen Recharge E is a surface-mounted, free-hanging Series E screen. It installs with the included floating and ceiling suspension brackets and is non-tensioned, not recessed into the ceiling.

How is the screen controlled?

All control is wireless. An RF remote is included, and an optional hub adds mobile-app, Google Home, and Alexa control for hands-free operation and integration into automated meeting rooms.

Is the ClearSound White Weave XT900E surface fully acoustically transparent?

Yes. The woven surface has over 76,000 microscopic openings per square foot and passes audio from loudspeakers placed behind the screen with an average insertion loss of only 0.7 dB, comparable to high-quality speaker grille cloth.

What projectors and mounts are compatible with the Acumen Recharge E?

It works with any commercial front projector matched to its 118" 2K/4K Full format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Acumen Recharge E carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
