Draper Acumen Recharge E – 118", 2K/4K Full – 153114EC

Product Overview

The Draper Acumen Recharge E is a surface-mounted, rechargeable motorized projection screen that installs without line-voltage wiring to the case, making it a practical battery-powered projection screen for commercial rooms where running power to the ceiling is difficult. This 118" diagonal 2K/4K Full (1.9:1) model houses a free-hanging viewing surface in a contoured extruded-aluminum case and is controlled entirely wirelessly, with a mobile app, Google Assistant, and Alexa options for hands-free operation. Floating mounting brackets and ceiling suspension brackets streamline installation and retrofit in conference rooms, boardrooms, and multi-purpose spaces. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Acumen Recharge E rechargeable projection screen is engineered for integrators who need motorized screen operation in spaces where pulling power to the screen location adds cost or is impractical. The screen runs on an internal rechargeable battery that charges from a standard 110V outlet using the included 13' (4 m) recharge cable and 2-amp plug with USB, so a single charge supports repeated raise and lower cycles between top-ups. All controls are wireless: the unit includes an RF remote, and an optional hub adds mobile-app control along with Google Home and Alexa voice operation for professional environments. For installations that prefer constant power, the screen is optionally Power over Ethernet (PoE) capable, keeping the product powered continuously while still being controlled by RF signal. The extruded aluminum case measures 7-1/8" high x 5-7/8" deep in a white powder-coat finish (black on request), and the removable fascia allows easy service access. Because it is surface-mounted rather than ceiling-recessed, the unit includes floating mounting brackets and ceiling suspension brackets, and the free-hanging, non-tensioned surface is available with Draper's OptiView and ClearSound viewing surfaces. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup or the broader projection screens range for alternate sizes, formats, and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Rechargeable battery operation — An internal battery charges from a standard 110V outlet via the included 13' (4 m) recharge cable and 2-amp USB plug, eliminating the need for line-voltage wiring to the case.
• Fully wireless control — Ships with an RF remote; an optional hub adds mobile-app control plus Google Home and Alexa voice operation.
• Optional Power over Ethernet — The screen can be kept powered continuously over PoE while still being controlled by RF signal.
• Surface-mounted installation — Includes floating mounting brackets and ceiling suspension brackets for wall or ceiling mounting in finished interiors.

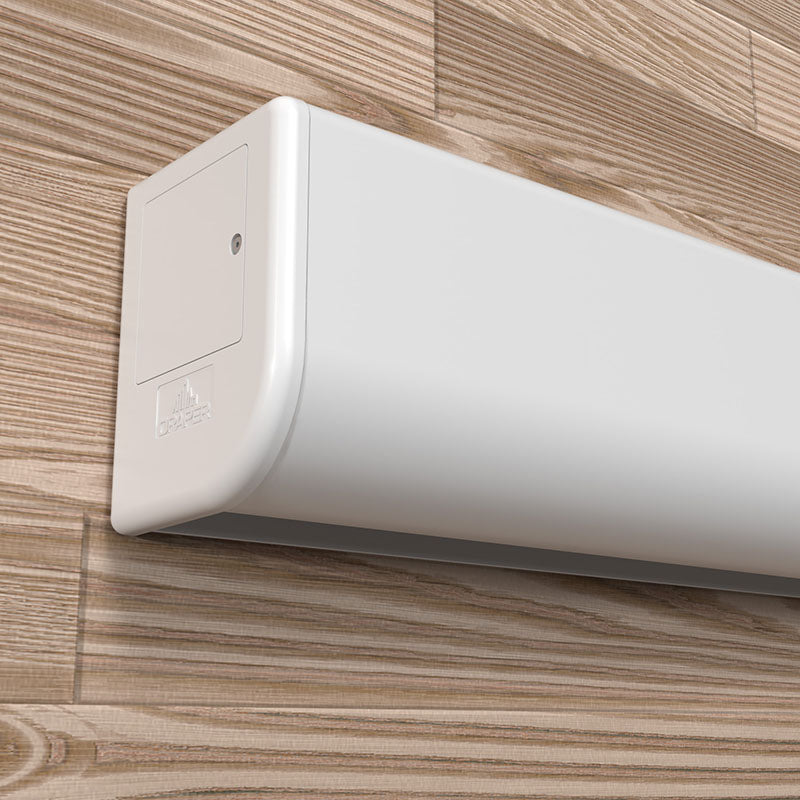

• Contoured aluminum case — The extruded aluminum case measures 7-1/8" high x 5-7/8" deep with a white powder-coat finish (black available on request).
• Removable fascia — The fascia detaches for straightforward access during service and maintenance.
• OptiView and ClearSound surfaces — Available with Draper's OptiView and ClearSound viewing surfaces to match the room and projector.
• Free-hanging viewing surface — The non-tensioned screen hangs free from the roller for reliable everyday operation in commercial rooms.
• 7-year warranty — Carries Draper's seven-year warranty (USA and Canada), supplied by Creation Networks as an authorized dealer.

Typical Applications

• Conference rooms and boardrooms without ceiling power at the screen location
• Retrofit installations in existing commercial meeting spaces
• Multi-purpose rooms requiring wireless or voice control
• Training rooms and huddle rooms in modern interiors
• Houses of worship using surface-mounted front projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, battery cycle counts, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How is the Acumen Recharge E powered?

It runs on an internal rechargeable battery that charges from a standard 110V outlet using the included 13' (4 m) recharge cable and 2-amp USB plug. This removes the need to run line-voltage wiring to the screen case. It is also optionally Power over Ethernet capable if you prefer to keep it powered continuously.

How do I control the screen?

All controls are wireless. The unit ships with an RF remote, and an optional hub adds mobile-app control along with Google Home and Alexa voice operation for hands-free use.

Is this screen surface-mounted or ceiling-recessed?

It is surface-mounted. The Acumen Recharge E includes floating mounting brackets and ceiling suspension brackets so it can be mounted to a wall or ceiling, rather than recessed into a ceiling pocket.

What projectors and mounts are compatible?

It works with any commercial front projector matched to its 118" 2K/4K format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Is the viewing surface tensioned?

No. The Acumen Recharge E uses a free-hanging, non-tensioned surface. If you require a tab-tensioned surface, ask Creation Networks about the Acumen Recharge V series.

What warranty and support are included?

The Acumen Recharge E carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
