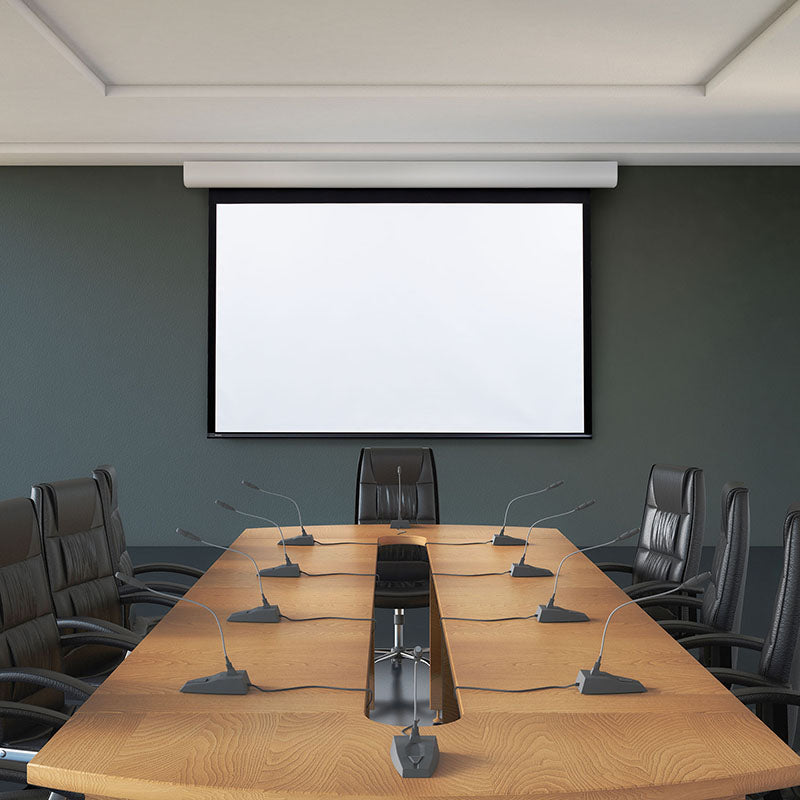

Draper Acumen Recharge E – 118", 2K/4K Full – 153114

Product Overview

The Draper Acumen Recharge E is a surface-mounted, battery-powered motorized projection screen that requires no external power wiring, built for commercial AV installations where running line voltage to the screen is impractical. This 118" diagonal 2K/4K Full (1.9:1) model houses a free-hanging Series E viewing surface in a contoured extruded-aluminum case and operates from an internal rechargeable Li-ion battery. As a rechargeable projection screen, it installs with no wiring and is controlled by an included RF remote, making it a strong fit for retrofits, leased spaces, and historic buildings. All units ship through Creation Networks at authorized-dealer pricing with Draper's 7-year warranty.

Product Description

The Draper Acumen Recharge E motorized screen is engineered for integrators who need a surface-mounted electric screen without pulling AC power to the mounting location. It uses a rechargeable Li-ion battery to drive the motor, so the screen installs with no wiring; it charges from a standard 110V outlet using the included 13' (4 m) recharge cable and 2 Amp plug-in with USB. The screen surface is a Series E non-tensioned (free-hanging) design, kept flat by the weight of the surface and dowel, and rolls into a streamlined 7-1/8" high by 5-7/8" deep aluminum case finished in white powder coat, with black available on request. A removable fascia, floating mounting brackets, and ceiling suspension brackets simplify installation and service. All controls are wireless: the screen ships with an RF remote, and an optional hub adds control from a mobile app, Google Home, or Alexa. For installations that can provide a data drop, the Acumen Recharge E is optionally Power over Ethernet (PoE) capable, letting the screen stay powered continuously while still being controlled by RF signal. The standard case accommodates image widths through 10' (305 cm) in 16:9, 16:10, and other popular formats, and is available with Draper OptiView and ClearSound families of viewing surfaces. This makes the Acumen Recharge E well suited to conference rooms, houses of worship, and multi-purpose spaces where cord-free operation is required. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Battery-powered, no wiring required — An internal rechargeable Li-ion battery drives the motor, so the screen installs without running line voltage to the mounting location.
• Charges from a standard outlet — Recharges from a 110V outlet using the included 13' (4 m) recharge cable and 2 Amp plug-in with USB.
• Wireless RF control — Ships with an RF remote; an optional hub adds mobile app, Google Home, and Alexa control for hands-free operation.
• Optional Power over Ethernet — With a data drop, the screen can stay powered continuously via PoE while still being controlled by RF signal.
• Surface-mounted installation — Floating mounting brackets and ceiling suspension brackets are included; no recessed ceiling pocket is required.
• Non-tensioned Series E surface — The free-hanging viewing surface hangs flat under its own weight for straightforward commercial use.
• Contoured aluminum case — A 7-1/8" high by 5-7/8" deep extruded case in white powder coat (black optional) with removable fascia suits finished interiors and easy service.
• Draper 7-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference rooms and boardrooms where running AC power to the screen is impractical
• Houses of worship and historic buildings with limited wiring options
• Leased and retrofit commercial spaces requiring cord-free installation
• Multi-purpose and all-hands rooms in office buildings
• Training rooms and commercial meeting spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, battery run-time, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Does the Acumen Recharge E require electrical wiring at the screen?

No. The screen runs on an internal rechargeable Li-ion battery, so no external power wiring is required at the mounting location. You recharge it from a standard 110V outlet using the included cable, or optionally keep it powered continuously with Power over Ethernet.

How is the screen controlled?

All controls are wireless. The screen ships with an RF remote, and an optional hub lets you control it from a mobile app, Google Home, or Alexa for hands-free operation in professional environments.

Is this a tensioned screen?

No. The Acumen Recharge E is a Series E, non-tensioned (free-hanging) screen. If you need a tab-tensioned surface, Draper offers the Acumen Recharge V as the tensioned battery-powered counterpart.

Can it be powered continuously instead of relying on the battery?

Yes. The Acumen Recharge E is optionally Power over Ethernet capable. With a data drop at the screen, it can stay powered all the time while still being controlled via RF signal.

What projectors and mounts are compatible?

It works with any commercial front projector matched to its 118" 2K/4K Full format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Acumen Recharge E carries Draper's 7-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
