Draper Acumen E – 137", 16:10 – 151105SAQ

Product Overview

The Draper Acumen E is a surface-mounted, non-tensioned motorized projection screen built for permanent commercial AV installations. This 137" diagonal 16:10 model houses a free-hanging viewing surface in a contoured extruded-aluminum case, making it a strong fit for large conference rooms, boardrooms, and training spaces that need a wide retractable image surface without a ceiling-recessed pocket. As a 137-inch motorized projection screen, it pairs quiet low-voltage operation with floating mounting brackets for straightforward integration. All units ship through Creation Networks at authorized-dealer pricing with Draper's 7-year warranty.

Product Description

The Draper Acumen E motorized screen is engineered for integrators specifying a surface-mounted electric screen where a recessed ceiling installation is not practical or desired. The screen surface is a Series E non-tensioned (free-hanging) design, kept flat by the weight of the surface and dowel, and rolls into a streamlined 7-1/8" high by 5-7/8" deep aluminum case finished in white powder coat, with black available on request. A removable fascia and floating wall and ceiling brackets simplify installation and long-term service in occupied commercial spaces. The internally mounted, instantly reversible motor includes thermal overload protection, an electric brake, and factory-set limits; this unit is configured with the Quiet motor option for noise-sensitive rooms. At 137" diagonal the standard Acumen E case supports image widths through 10' (305 cm) in 16:9, 16:10, and other popular formats, and ships with a built-in low-voltage controller and wall switch, with additional control options available. Draper offers the Acumen E with the OptiView family of viewing surfaces, so integrators can match gain and ambient-light performance to the room. This makes the Acumen E well suited to large corporate boardrooms, all-hands rooms, and multi-purpose spaces that need a durable, wide retractable front-projection surface. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Surface-mounted installation — Mounts to wall or ceiling without a recessed pocket, using included floating brackets for fast, accurate positioning.
• Non-tensioned Series E surface — The free-hanging viewing surface hangs flat under its own weight, keeping the design and service simple for everyday commercial use.
• Wide 137" 16:10 image — Sized for larger rooms and longer viewing distances where a bigger presentation surface is required.

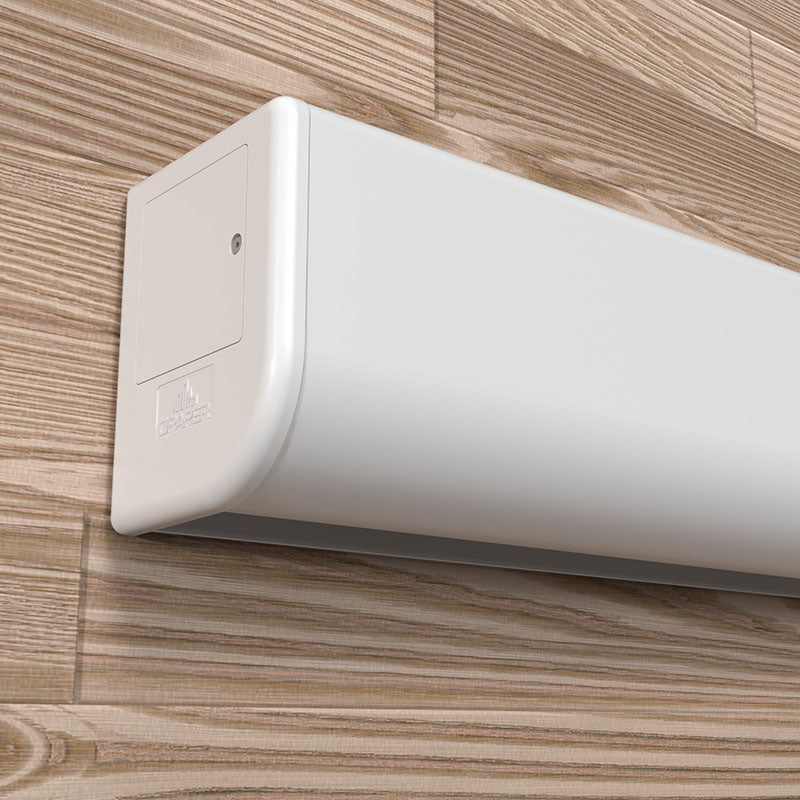

• Contoured aluminum case — A 7-1/8" high by 5-7/8" deep extruded case in white powder coat (black optional) suits finished modern interiors.
• Quiet motor option — This configuration uses Draper's Quiet motor for lower operating noise in boardrooms and meeting spaces.
• Instantly reversible motor — The internal motor includes thermal overload protection, an electric brake, and factory-set limits for reliable, repeatable stops.
• OptiView surface options — Available with Draper OptiView surfaces to match gain and ambient-light conditions in the room.
• Draper 7-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

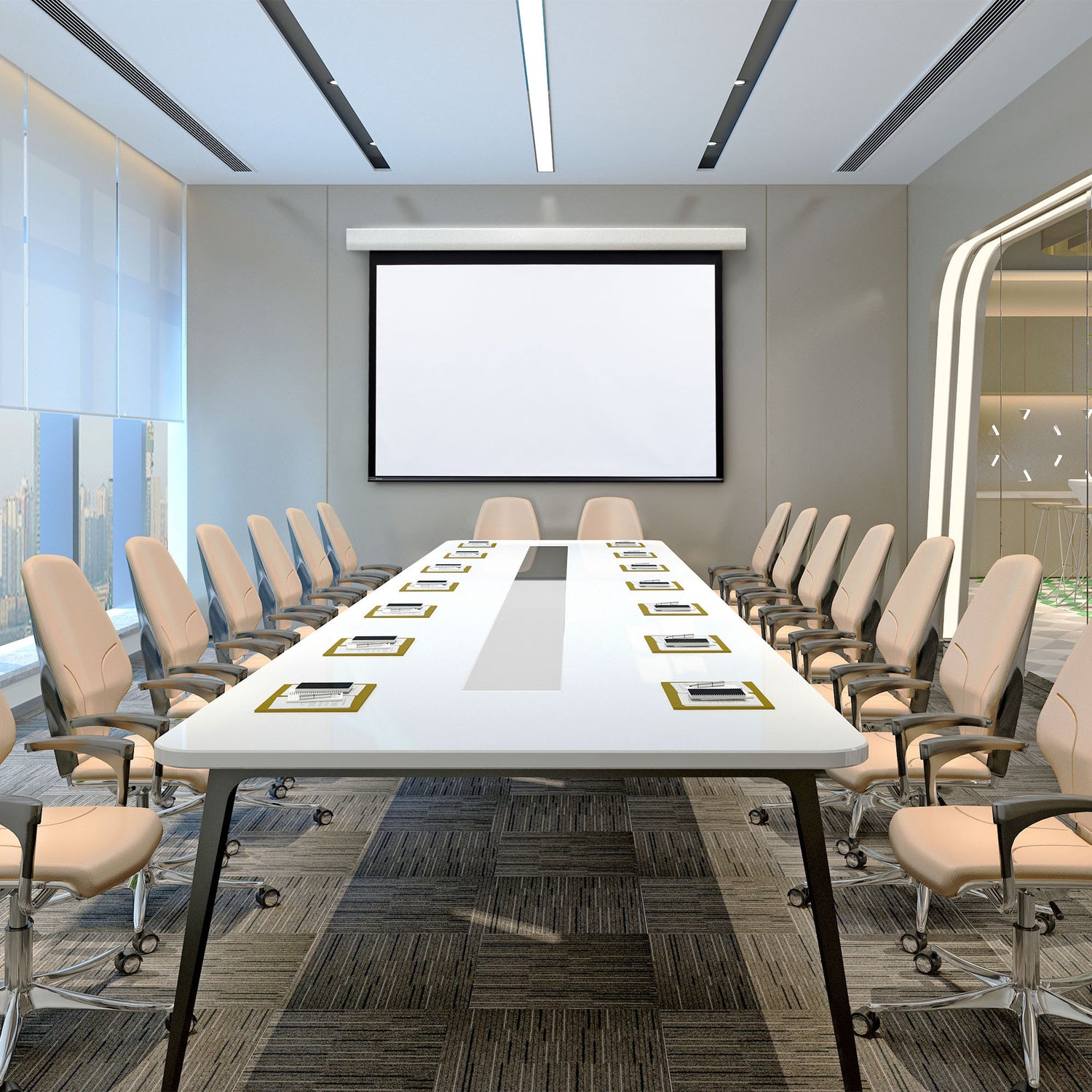

• Large corporate boardrooms and conference rooms using retractable front projection
• All-hands rooms and commercial meeting spaces
• Training rooms and multi-purpose rooms in office buildings
• Houses of worship needing a wide surface-mounted motorized screen
• Government and institutional presentation spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Acumen E a tensioned or non-tensioned screen?

The Acumen E is a Series E, non-tensioned (free-hanging) screen. The viewing surface hangs flat under the weight of the surface and dowel. If you require a tab-tensioned surface for a perfectly flat image, Draper offers the Acumen V (Series V) as the tensioned counterpart.

Does this screen require a recessed ceiling opening?

No. The Acumen E is surface-mounted and installs directly to a wall or ceiling using the included floating brackets, so no recessed ceiling pocket is required. This makes it a practical choice for retrofits and finished spaces.

What projectors and mounts are compatible with the Acumen E?

It works with any commercial front projector matched to its 137" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the screen controlled and integrated into an AV system?

The Acumen E ships with a built-in low-voltage controller and wall switch as standard, and additional control options are available to integrate the screen with a room control system for automated raise and lower.

Is the Quiet motor option worth it for a large meeting room?

Yes. This unit is configured with Draper's Quiet motor, which reduces operating noise during screen travel. That is valuable in larger boardrooms and all-hands rooms where the screen deploys during a live meeting.

What warranty and support are included?

The Acumen E carries Draper's 7-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
