Draper Acumen E – 137", 16:10 – 151105SA

Product Overview

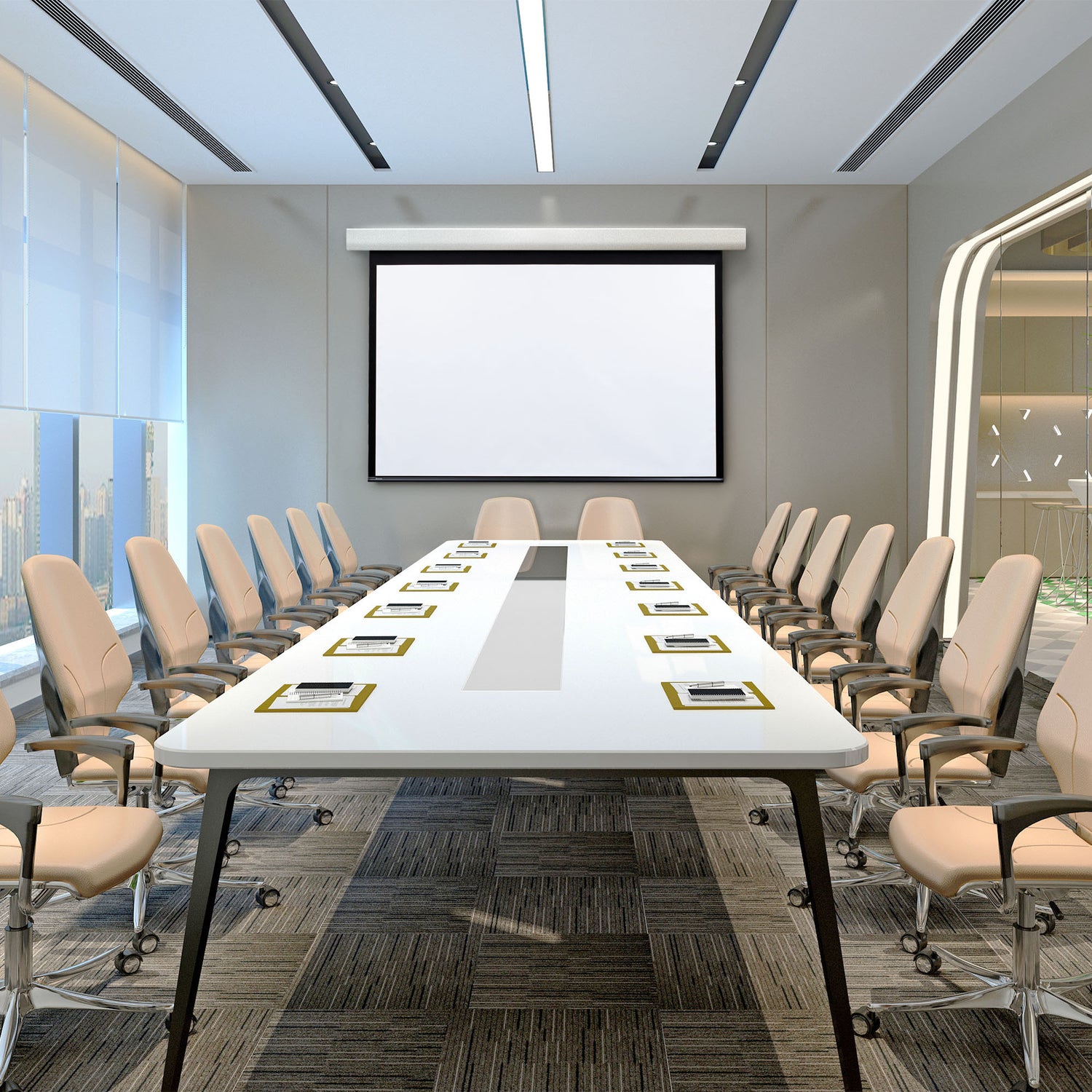

The Draper Acumen E is a surface-mounted, motorized projection screen built for permanent commercial AV installations that need clean aesthetics and one-touch operation. This 137" diagonal 16:10 model houses a free-hanging viewing surface in a contoured extruded-aluminum case, making it a strong fit as a large motorized projection screen for boardrooms, training rooms, and all-hands spaces that run widescreen computer and presentation content. Floating wall and ceiling brackets and a built-in low-voltage controller streamline installation and AV system integration. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Acumen E electric projection screen is engineered for integrators specifying a surface-mounted motorized screen with a finished appearance in modern interiors. The tube motor is housed inside the roller, and the unit ships with a built-in low-voltage controller and wall switch as standard, so the screen raises and lowers with a single command and integrates with common third-party control systems. The extruded aluminum case measures 7-1/8" high x 5-7/8" deep and carries a white powder-coat finish, with black available on request to match ceiling and wall treatments. Because the screen is surface-mounted rather than ceiling-recessed, floating wall and ceiling brackets are included so the case can be positioned precisely during a commercial deployment, while the removable fascia simplifies long-term service. At 137" in a 16:10 format, this configuration provides a 72 1/2" x 116" image area for wide seating layouts, and it hangs free from the roller as a non-tensioned surface with a standard black masking drop above the image area. The Acumen E is offered with Draper's OptiView viewing surfaces, letting a designer match gain and ambient-light behavior to the room. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup or the broader projection screens range for alternate sizes, formats, and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Surface-mounted installation — Floating wall and ceiling brackets are included so integrators can mount the case on a wall or ceiling in finished commercial interiors.
• Motorized operation — A built-in low-voltage controller and wall switch ship as standard, with the tube motor housed in the roller for one-touch raise and lower.
• Large 16:10 image area — The 137" diagonal provides a 72 1/2" x 116" viewable area suited to widescreen presentation and computer content.

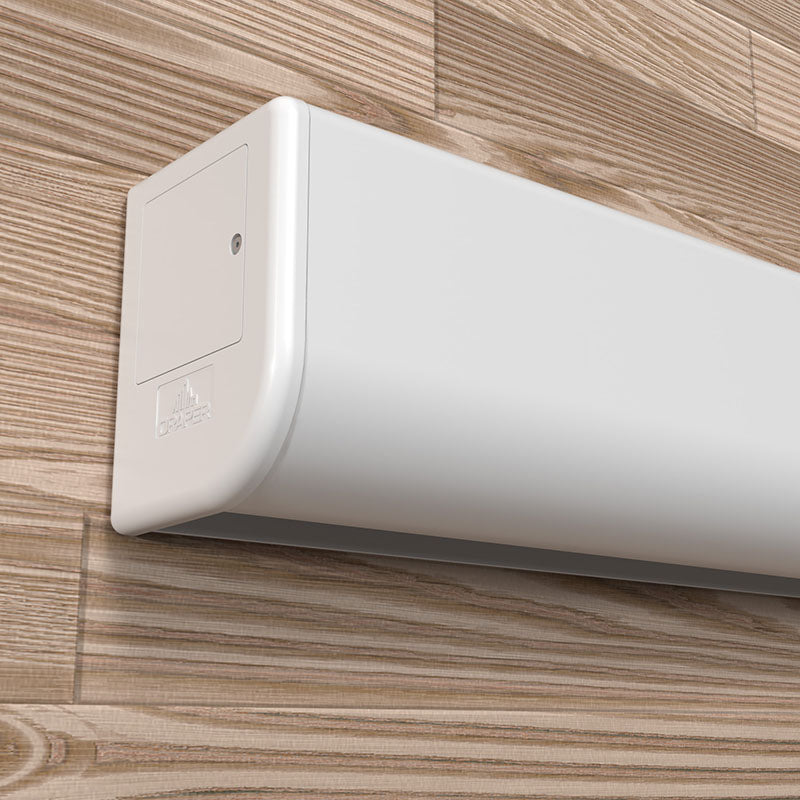

• Contoured aluminum case — The extruded aluminum case measures 7-1/8" high x 5-7/8" deep with a white powder-coat finish (black available on request).
• Removable fascia — The fascia detaches for straightforward access during service and maintenance.
• Free-hanging viewing surface — The non-tensioned screen hangs free from the roller for reliable everyday operation in commercial rooms.
• OptiView surface options — Available with Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E, and Chroma Key Green surfaces.
• UL Listed with 7-year warranty — Carries UL listing and Draper's seven-year warranty (USA and Canada), supplied by Creation Networks as an authorized dealer.

Typical Applications

• Corporate boardrooms and large conference rooms using front projection
• All-hands rooms and commercial meeting spaces with widescreen content
• Training rooms requiring a large motorized screen
• Multi-purpose rooms in modern interiors
• Houses of worship with wall- or ceiling-mounted screens

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Acumen E ceiling-recessed or surface-mounted?

The Acumen E is surface-mounted. It ships with floating wall and ceiling brackets so the case can be mounted directly to a wall or ceiling, rather than recessed into a ceiling pocket.

What projectors and mounts are compatible with this 137" screen?

It works with any commercial front projector matched to its 137" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the screen controlled and integrated?

The Acumen E ships with a built-in low-voltage controller and wall switch as standard. The low-voltage control interface allows integration with common third-party automation systems for automated raise and lower.

Is the viewing surface tensioned?

No. The Acumen E uses a free-hanging, non-tensioned surface that hangs flat from the roller. If you require a tab-tensioned surface, ask Creation Networks about the Acumen V series.

Which viewing surfaces are available?

The Acumen E is offered with Draper's OptiView surfaces, including Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E, and Chroma Key Green. Creation Networks can help match a surface to your room's ambient light and projector.

What warranty and support are included?

The Acumen E carries Draper's seven-year warranty (USA and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
