Draper Access XL V – 270", NTSC – 147012U

Product Overview

The Draper Access XL V is a ceiling-recessed, tab-tensioned electric screen for major venues, and this 270" diagonal NTSC (4:3) unit is a large venue projection screen for ballrooms, conference centers, and large lecture halls. It retracts fully into its case for a clean ceiling line when idle, then deploys a flat, tab-tensioned image on demand. This unit ships with Draper's low voltage LVC-IV motor for controlled operation and AV control-system integration. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Access XL V ceiling-recessed projection screen brings the concealed, install-during-construction Access platform to large-venue image sizes. Its steel case measures 10-1/8" high x 9-7/16" deep (26 cm x 24 cm) including the trim flange, with sliding brackets on top for unlimited mounting adjustment and internal sliding brackets for the screen assembly. Maximum image width for the model is 18' (549 cm); this 270" 4:3 unit sits near the upper end of that range for large presentation spaces. The tab-tensioned design holds the surface flat across the full width for a wrinkle-free image, and Draper's RF-welded tabs eliminate stickiness and tab separation — warranted against separation for five years. The image area is framed in black with a standard 12" (30 cm) black drop at the top for correct projector alignment. Adjustable or removable hoisting brackets ease lifting this large case into place, and a detachable bottom access panel allows service without removing the case from the ceiling. This unit ships with the low voltage LVC-IV motor (SKU suffix U). Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the large-venue system. Browse the full Draper projection screen lineup, or the wider projection screens range. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Large-venue image size — A 270" diagonal supports large audiences in ballrooms, conference centers, and auditoriums.
• Ceiling-recessed concealment — The screen retracts fully into the case for a clean ceiling line when not in use.
• Tab-tensioned viewing surface — Holds the surface flat across the full width for a wrinkle-free image at large sizes.
• RF-welded tabs — Eliminate stickiness and tab separation, and are warranted against separation for five years.
• Low voltage LVC-IV motor — This unit ships with the LVC-IV motor for controlled operation and AV control-system integration.
• Adjustable and removable hoisting brackets — Simplify lifting the large case into position during installation.
• Detachable bottom access panel — Enables service from below without removing the case from the ceiling.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

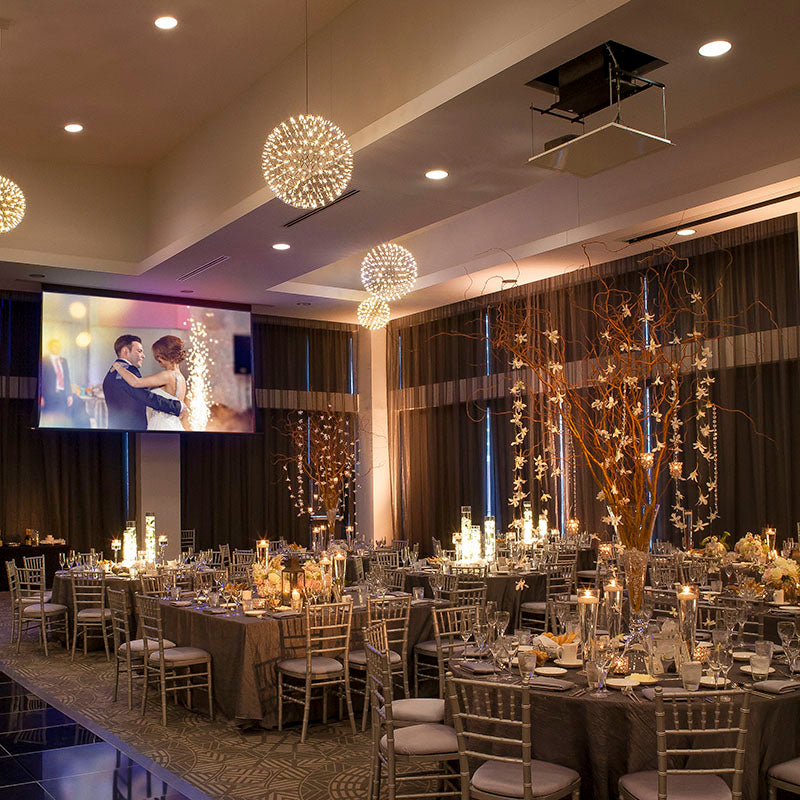

• Hotel ballrooms and conference centers requiring a large concealed screen

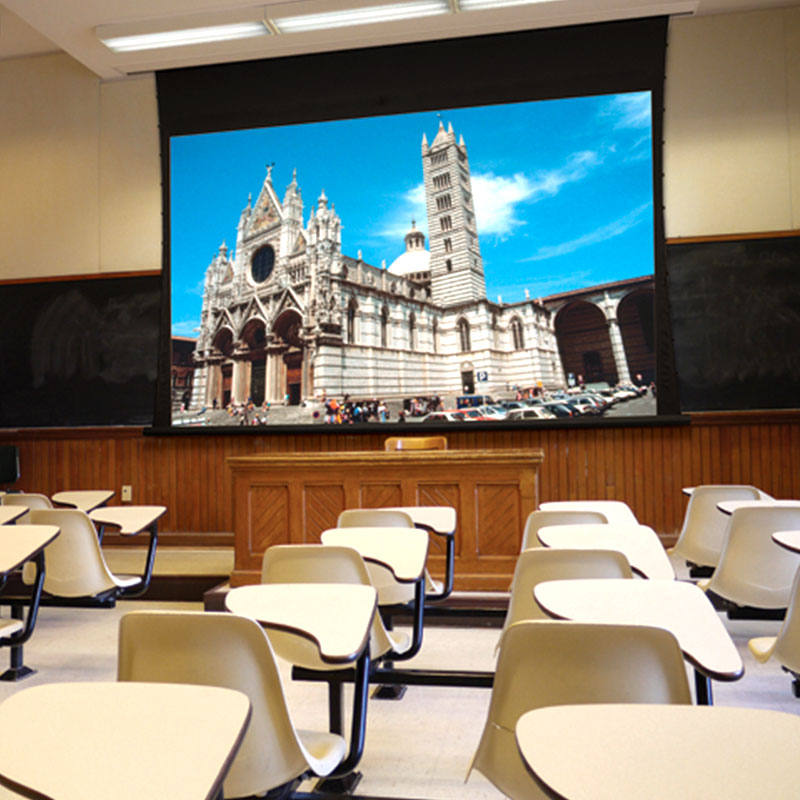

• Large university lecture halls and auditoriums
• Corporate all-hands and multi-purpose rooms
• Government and commercial meeting spaces seating large audiences
• Houses of worship using large-format front projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How large a room does this 270" screen suit?

The Access XL V is a large-format model with a maximum image width of 18' (549 cm). This 270" 4:3 size is intended for major venues such as ballrooms, conference centers, and auditoriums with deep seating.

What does the "U" in SKU 147012U indicate?

The U suffix indicates Draper's low voltage LVC-IV motor, which provides controlled operation and integrates with AV control systems for automated screen deployment.

How durable are the tab-tensioning tabs at this size?

The tabs are RF-welded to eliminate stickiness and separation, and Draper warrants them against separation for five years, which matters for a large screen that must stay flat across its full width.

What projectors and mounts are compatible with this screen?

Use a commercial front projector matched to the 270" 4:3 format and the room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is a case this large installed and serviced?

Adjustable or removable hoisting brackets ease lifting the case into place, and sliding brackets allow mounting adjustment. A detachable bottom access panel provides service access from below after installation.

What warranty and support are included?

The Access XL V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
