Draper Access XL V – 255", 16:10 – 147007FBU

Product Overview

The Draper Access XL V is a large-format, electric, ceiling-recessed, tab-tensioned projection screen built for big venues that need a flat, concealed image at scale. This 255" diagonal 16:10 model uses the OptiFlex Grey XH600V surface, a 0.6-gain grey material that enhances contrast and black levels in rooms with some ambient light. As a Series V large-format screen, the surface is tab-tensioned with RF-welded tabs to stay flat and wrinkle-free across very wide images. Supplied with a low-voltage LVC-IV motor on 110 V, all units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Access XL V large-format projection screen is engineered for integrators specifying a concealed, ceiling-recessed image surface in auditoriums, ballrooms, and conference centers. The steel case measures 10-1/8" high by 9-7/16" deep (26 cm x 24 cm) including the trim flange and installs above the ceiling line, keeping the screen fully hidden for a clean ceiling when retracted. The tab-tensioning system holds the surface taut on both sides for a perfectly flat image at large sizes, and the tabs are RF-welded to eliminate stickiness and tab separation, warranted against separation for five years. This 255" 16:10 configuration has a 135" x 216" viewable area, is fully framed in black with a standard 12" (30 cm) black drop at the top, and the model supports image widths up to 18' (549 cm). It pairs the Grey XH600V surface, a smooth grey OptiFlex material with 0.6 gain and a wide viewing cone that improves perceived contrast where ambient light cannot be fully controlled. The low-voltage LVC-IV motor supports clean integration with commercial control systems, a detachable bottom access panel door provides service access, and adjustable hoisting brackets ease lifting this large case into place. The case is UL Listed, and third-party control options integrate with systems such as Crestron and Control4. This makes the Access XL V a strong fit for large auditoriums, houses of worship, and all-hands spaces that need an oversized, flat, commercial-grade motorized image. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats, or contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Large-format tab-tensioned surface — Supports image widths up to 18' (549 cm) while staying flat and wrinkle-free through edge tab-tensioning.
• RF-welded tabs — Eliminate stickiness and tab separation and are warranted against separation for five years.
• Ceiling-recessed concealment — The screen and case hide above the ceiling line for a clean ceiling when retracted.
• Grey XH600V surface — A 0.6-gain grey OptiFlex material with a wide viewing cone enhances contrast and black levels where ambient light is present.
• 16:10 wide format, 135" x 216" image — A large widescreen viewable area suited to big rooms and long throw distances.
• Low-voltage LVC-IV motor — Supports clean integration with commercial control systems and low-voltage switching.
• Heavy-duty steel case — A 10-1/8" high by 9-7/16" deep case with adjustable hoisting brackets simplifies handling this large assembly.
• Serviceable bottom access panel — A detachable panel door provides service access after installation.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

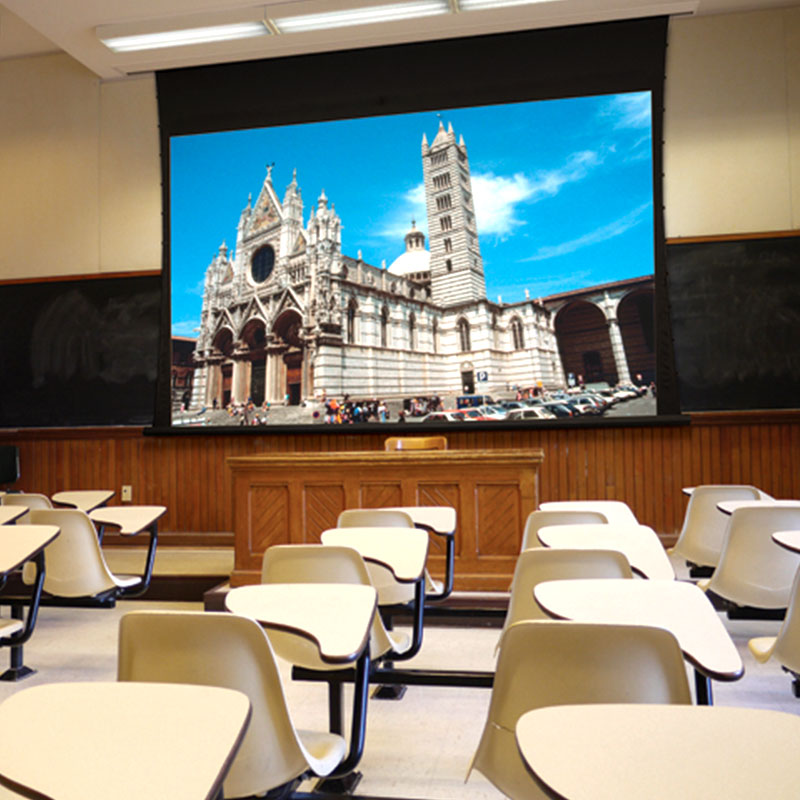

• Auditoriums and large lecture halls

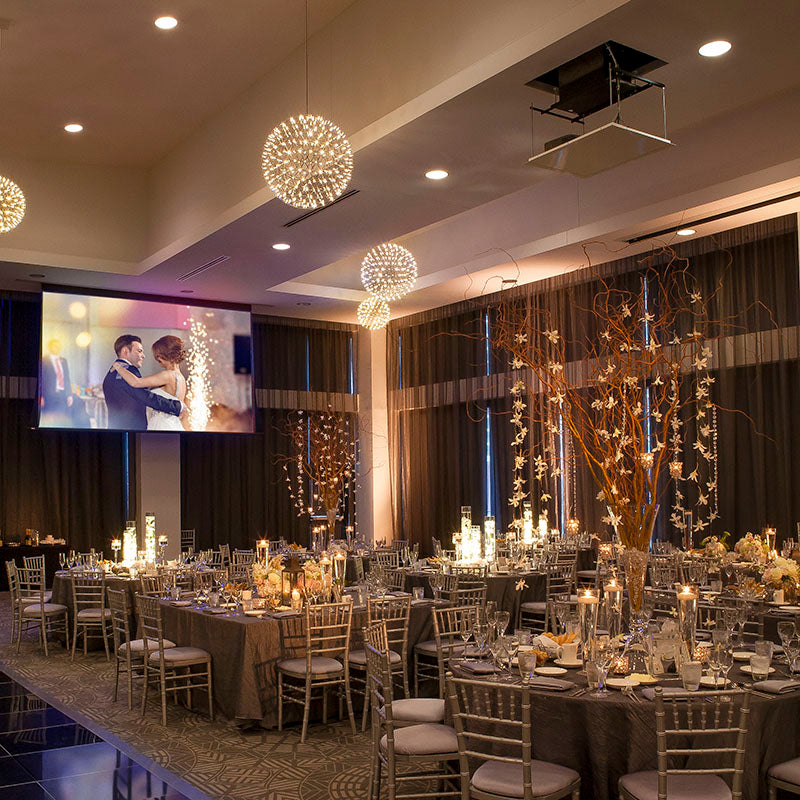

• Ballrooms and conference centers
• Houses of worship with large-format front projection
• All-hands rooms and large commercial meeting spaces
• Government and municipal assembly spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What makes the Access XL V a large-format screen?

The Access XL V is Draper's large-format Series V model, supporting image widths up to 18' (549 cm) in a ceiling-recessed, tab-tensioned design. It uses a larger case (10-1/8" high by 9-7/16" deep) than the standard Access V to carry the wider, heavier surface.

What are RF-welded tabs and why do they matter?

The tab-tensioning tabs are radio-frequency welded rather than glued, which eliminates stickiness and tab separation over time. Draper warrants the tabs against separation for five years, which is important for maintaining a flat image on a screen this large.

What does the LVC-IV motor provide?

The LVC-IV is a low-voltage motor option that supports clean integration with commercial control systems and low-voltage switching, which is useful when the screen is tied into a room control processor.

Why choose the Grey XH600V surface?

The grey XH600V surface has 0.6 gain and improves perceived contrast and black levels compared with matt white, so it performs better in large rooms with some ambient light. It is not an ambient-light-rejecting surface, so reasonable light control is still recommended.

What projectors and mounts are compatible with the Access XL V?

It works with commercial front projectors matched to its 255" 16:10 format and the venue's throw distance; large rooms often use high-output or stacked projectors. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Access XL V carries Draper's standard 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help, freight planning for this large unit, and post-sale support.
